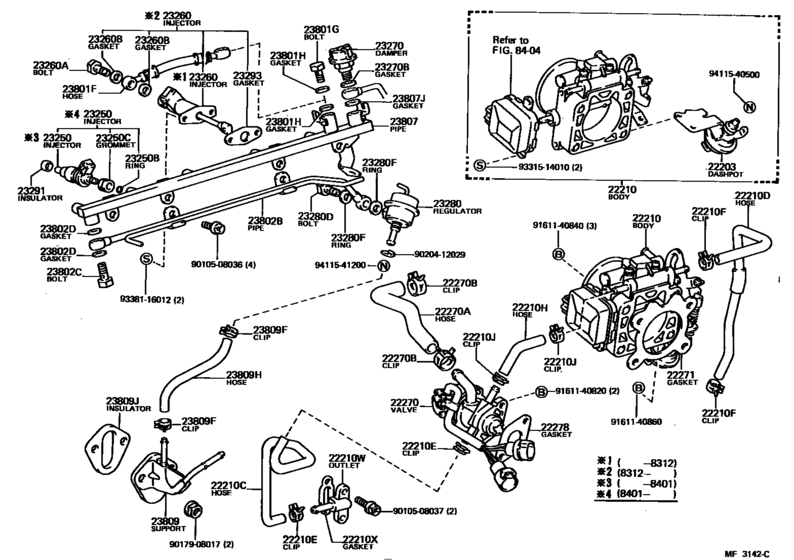

Fuel Injection System ([08.1983 - ] (8308- )5MGEU) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- Japan
- Frame
- MA61
- grade
- GT
- body
- LB
- ENGINE
- 5MGEU
- TRANSMISSION
- MTM
- From
- 07.1981
- To
- 12.1985
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-43020
Dash Pot Sub-Assy(For Throttle Body)
[07.1981 - 12.1985] 5MGEU..MA61..5F |
22203-43020 |
— | ||
|
22210
|
22210
22210-43150
Body Assy, Throttle
[07.1981 - 11.1981] 5MGEU..MA61..5F |
22210-43150 |
— | ||
| replacements | |||||
|
22210
|
22210
22210-43151
Body Assy, Throttle
[07.1981 - 11.1981] 5MGEU..MA61..5F |
22210-43151 |
— | ||
|
22210
|
22210
88689-24021
Hose (Engine To Magnet Valve)
[07.1981 - 11.1981] 5MGEU..MA61..5F |
88689-24021 |
— | ||
|
22210
|
22210
22210-43151
Body Assy, Throttle
[11.1981 - 08.1983] 5MGEU..MA61..5F |
22210-43151 |
— | ||
|
22210
|
22210
22210-43180 Body Assy, ThrottleTHROTTLE [08.1983 - 12.1985] 5MGEU..MA61..5F |
22210-43180 |
US $675.58 |
||
|
22210C
|
22210C
16261-43020
Hose, Water By-Pass, No.1
[07.1981 - 08.1983] 5MGEU..MA61 |
16261-43020 |
— | ||
|
22210C
|
22210C
16261-43030
Hose, Water By-Pass, No.1
[08.1983 - 12.1985] 5MGEU..MA61 |
16261-43030 |
— | ||
|
22210D
|
22210D
16264-43020 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [07.1981 - 08.1982] 5MGEU..MA61 |
16264-43020 |
US $13.25 |
||
|
22210D
|
22210D
16264-43021
Hose, Water By-Pass, No.2
[08.1982 - 12.1985] 5MGEU..MA61 |
16264-43021 |
— | ||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.1981 - 12.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6#; 3T#,4TGTEU..TA63,64 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[07.1981 - 12.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6#; 3T#,4TGTEU..TA63,64 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.1981 - 12.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6#; 3T#,4TGTEU..TA63,64 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[07.1981 - 12.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6#; 3T#,4TGTEU..TA63,64 |
96135-51300 |
from US $1.92 |
||
|
22210H
|
22210H
16281-43020
Hose, Water By-Pass, No.3
[08.1983 - 12.1985] 5MGEU..MA61 |
16281-43020 |
— | ||
|
22210J
|
22210J
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1983 - 12.1985] 5MGEU..MA61 |
90467-13001 |
— | ||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[08.1983 - 12.1985] 5MGEU..MA61 |
96135-51300 |
from US $1.92 |
||
|
22210W
|
22210W
16351-43010 Outlet, Water By-Pass[08.1983 - 12.1985] 5MGEU..MA61 |
16351-43010 |
US $64.79 |
||
|
22210X
|
22210X
22238-43010
Gasket, Water Outlet
[08.1983 - 12.1985] 5MGEU..MA61 |
22238-43010 |
— | ||
| replacement | |||||
|
22210X
|
22210X
22238-43020
Gasket, Water Outlet
[08.1983 - 12.1985] 5MGEU..MA61 |
22238-43020 |
— | ||
|
22270
|
22270
22270-43010
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1983 - 12.1985] 5MGEU..MA61 |
22270-43010 |
— | ||
|
22270A
|
22270A
17347-43010
Hose, Air, No.1(For Idle Speed Control Valve)
[08.1983 - 12.1985] 5MGEU..MA61 |
17347-43010 |
— | ||
|
22270B
|
22270B
90467-23003
Clip(For Ventilation Hose)
[08.1983 - 12.1985] 5MGEU..MA61 |
90467-23003 |
— | ||
| replacement | |||||
|
22270B
|
22270B
96134-42300 Clip Or Clamp(For Ventilation Hose)[08.1983 - 12.1985] 5MGEU..MA61 |
96134-42300 |
US $1.44 |
||
|
22271
|
22271
22271-43010
Gasket, Throttle Body
[07.1981 - 12.1985] 5MGEU..MA61 |
22271-43010 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-43030 Gasket, Throttle Body[07.1981 - 12.1985] 5MGEU..MA61 |
22271-43030 |
US $5.24 |
||
|
22278
|
22278
22278-43010
Gasket, Idle Speed Control Valve
[08.1983 - 12.1985] 5MGEU..MA61 |
22278-43010 |
— | ||
| replacement | |||||
|
22278
|
22278
22278-42010 Gasket, Idle Speed Control Valve[08.1983 - 12.1985] 5MGEU..MA61 |
22278-42010 |
US $5.60 |
||
|
23250
|
23250
23209-45011
Injector Assy, Fuel
[01.1984 - 01.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6# |
23209-45011 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-43010 Injector Assy, FuelFUEL [01.1984 - 01.1985] 1GGEU..GA61; 5MGEU,MTEU..MA6# |
23209-43010 |
US $260.10 |
||
|
23250
|
23250
23250-45011
Injector Assy, Fuel
[07.1981 - 01.1984] 1GGEU..GA61; 5MGEU,MTEU..MA6#; 2TGEU,3TEU..TA61,63 |
23250-45011 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-43010
Injector Assy, Cold Start Fuel
[07.1981 - 12.1983] 5MGEU..MA61 |
23260-43010 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49066
Injector Assy, Cold Start Fuel
[07.1981 - 12.1983] 5MGEU..MA61 |
23260-49066 |
— | ||
|
23260
|
23260
23260-49065
Injector Assy, Cold Start Fuel
[12.1983 - 12.1985] 5MGEU..MA61 |
23260-49065 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49066
Injector Assy, Cold Start Fuel
[12.1983 - 12.1985] 5MGEU..MA61 |
23260-49066 |
— | ||
|
23260A
|
23260A
90401-10008
Bolt, Union
[07.1981 - 12.1985] 5MGEU,MTEU..MA6#; 3TEU..TA63 |
90401-10008 |
— | ||
|
23260B
|
23260B
90099-01459
Gasket
[07.1981 - 12.1985] 5MGEU,MTEU..MA6# |
90099-01459 |
— | ||
|
23270
|
23270
23270-43010
Damper Assy, Fuel Pressure Pulsation
[07.1981 - 12.1985] 5MGEU..MA61 |
23270-43010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-42010 Damper Assy, Fuel Pressure Pulsation[07.1981 - 12.1985] 5MGEU..MA61 |
23270-42010 |
US $94.72 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[07.1981 - 12.1985] 1GEU..GA61 ID=17.3,DAMPER SIDE; 5MGEU..MA61 ID=17.3,DAMPER SIDE |
90430-17002 |
US $3.36 |
||
|
23280
|
23280
23280-43020
Regulator Assy, Fuel Pressure
[07.1981 - 12.1985] 5MGEU..MA61 |
23280-43020 |
— | ||
|
23280D
|
23280D
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1981 - 12.1985] 5MGEU,MTEU..MA6#; 3TEU..TA63 |
90401-12097 |
from US $3.08 |
||
|
23280F
|
23280F
90430-12005 Gasket(For Water Hole)[07.1981 - 12.1985] 5MGEU,MTEU..MA6#; 3TEU..TA63 |
90430-12005 |
from US $0.76 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[07.1981 - 12.1985] 4AGEU..AA63; 1G#..GA61; 5MGEU,MTEU..MA6#; 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-43010
Gasket, Cold Start Injector
[07.1981 - 12.1985] 5MGEU..MA61 |
23293-43010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-43030
Gasket, Cold Start Injector
[07.1981 - 12.1985] 5MGEU..MA61 |
23293-43030 |
— | ||
|
23801F
|
23801F
90923-01249
Hose, Fuel, No.1
[07.1981 - 12.1985] 5MGEU..MA61 |
90923-01249 |
— | ||
|
23801G
|
23801G
90401-10008
Bolt, Union
[07.1981 - 12.1985] 5MGEU..MA61; 18RGEU..RA63; 2TGEU..TA61 |
90401-10008 |
— | ||
|
23801H
|
23801H
90099-01459
Gasket
[07.1981 - 12.1984] 5MGEU..MA61; 18RGEU..RA63; 2TGEU..TA61 |
90099-01459 |
— | ||
|
23801H
|
23801H
90430-10204 Gasket(For Water Hole)[12.1984 - 12.1985] 5MGEU..MA61 |
90430-10204 |
from US $3.68 |
||
|
23802B
|
23802B
23802-43010
Pipe Sub-Assy, Fuel, No.2
[08.1981 - 12.1985] 5MGEU..MA61 |
23802-43010 |
— | ||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[07.1981 - 12.1985] 5MGEU,MTEU..MA6#; 3TEU..TA63 |
90401-12097 |
from US $3.08 |
||
|
23802D
|
23802D
90430-12005 Gasket(For Water Hole)[07.1981 - 12.1985] 5MGEU,MTEU..MA6#; 3TEU..TA63 |
90430-12005 |
from US $0.76 |
||
|
23807
|
23807
23814-43020
Pipe Sub-Assy, Fuel Delivery
[07.1981 - 12.1985] 5MGEU..MA61 |
23814-43020 |
— | ||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[07.1981 - 12.1985] 5MGEU,MTEU..MA6# |
90430-14002 |
US $2.88 |
||
|
23809
|
23809
23849-41021
Support Sub-Assy, Fuel Pipe
[07.1981 - 08.1983] 5MGEU,MTEU..MA6# |
23849-41021 |
— | ||
|
23809
|
23809
23849-41050
Support Sub-Assy, Fuel Pipe
[08.1983 - 12.1985] 5MGEU,MTEU..MA6# |
23849-41050 |
— | ||
|
23809F
|
23809F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.1981 - 12.1985] 5MGEU,MTEU..MA6# |
90467-13001 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[07.1981 - 12.1985] 5MGEU,MTEU..MA6# |
96135-51300 |
from US $1.92 |
||
|
23809H
|
23809H
23271-43030 Hose, Fuel Pipe Support To RegulatorFUEL PIPE SUPPORT TO REGULATOR [07.1981 - 08.1983] 5MGEU..MA61 |
23271-43030 |
US $29.56 |
||
|
23809H
|
23809H
23271-43050 Hose, Fuel Pipe Support To Regulator[08.1983 - 12.1985] 5MGEU..MA61 |
23271-43050 |
US $40.77 |
||
|
23809J
|
23809J
90923-06007
Gasket, Cylinder Block Side Cover, No.2
[08.1983 - 12.1985] 5MGEU,MTEU..MA6# |
90923-06007 |
— | ||
| replacement | |||||
|
23809J
|
23809J
90923-06012 Gasket, Cylinder Block Side Cover, No.2[08.1983 - 12.1985] 5MGEU,MTEU..MA6# |
90923-06012 |
US $7.43 |
||
|
9010508036
|
9010508036
90105-08036 New Genuine Part |
90105-08036 |
US $1.75 |
||
|
9010508037
|
9010508037
90105-08037
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08037 |
— | ||
| replacement | |||||
|
9010508037
|
9010508037
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9020412029
|
9020412029
90204-12029
Washer, Spring(For Steering Wheel Set)
|
90204-12029 |
— | ||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9161140860
|
9161140860
91611-40860 Bolt(For Rocker Support Set) |
91611-40860 |
US $2.33 |
||
| replacement | |||||
|
9161140860
|
9161140860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.60 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
