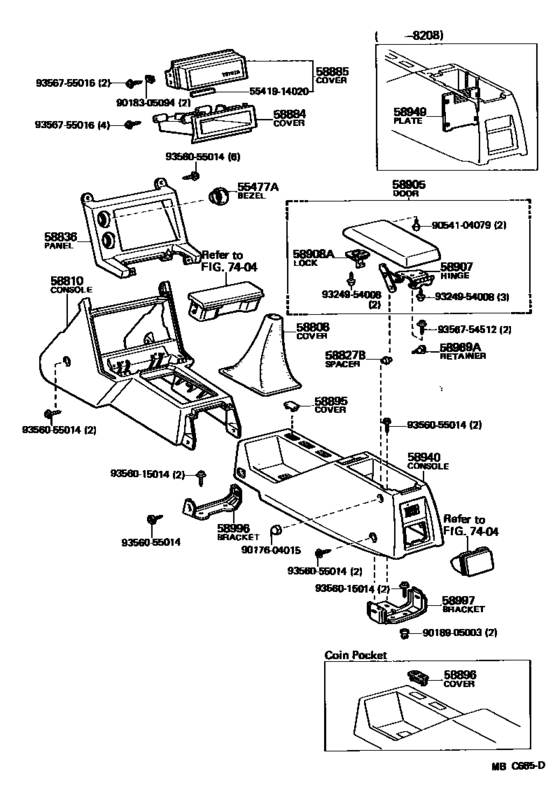

Console Box & Bracket ([08.1981 - ] (8108- )MA61) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- U.S.A.
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 12.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55477A
|
55477A
55477-14050
Bezel, Cigar Lighter Hole
[08.1981 - 12.1985] MA61,RA6# |
55477-14050 |
— | ||
|
58808
|
58808
58808-14100-01 Cover Sub-Assy, Shifting Hole[08.1981 - 12.1985] MA61,RA6#..5F BLACK,BLACK |
58808-14100-01 |
US $44.69 |
||
|
58808
|
58808
58808-14100-02
Cover Sub-Assy, Shifting Hole
[08.1981 - 08.1983] MA61..5F TERRA COTTA,RED/MAROON |
58808-14100-02 |
— | ||
|
58808
|
58808
58808-14100-04
Cover Sub-Assy, Shifting Hole
[08.1981 - 12.1985] MA61,RA6#..(CP,LB)..5F BLUE,BLUE |
58808-14100-04 |
— | ||
|
58808
|
58808
58808-14100-12
Cover Sub-Assy, Shifting Hole
[08.1983 - 12.1985] MA61..5F DEEP MAROON,RED/MAROON |
58808-14100-12 |
— | ||
|
58810
|
58810
58802-14050-01 Console Assy[08.1983 - 12.1985] MA61 BLACK,BLACK |
58802-14050-01 |
US $218.40 |
||
|
58810
|
58810
58802-14050-02 Console Assy[08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
58802-14050-02 |
US $218.40 |
||
|
58810
|
58810
58802-14050-04 Console Assy[08.1983 - 12.1985] MA61 BLUE,BLUE |
58802-14050-04 |
US $218.40 |
||
|
58810
|
58810
58811-14180-01
Console Assy
[08.1981 - 08.1983] MA61,RA6# BLACK,BLACK |
58811-14180-01 |
— | ||
|
58810
|
58810
58811-14180-02
Console Assy
[08.1981 - 08.1983] MA61 TERRA COTTA,RED/MAROON |
58811-14180-02 |
— | ||
| replacement | |||||
|
58810
|
58810
58811-14180-D0
Console Assy
[08.1981 - 08.1983] MA61 TERRA COTTA,RED/MAROON |
58811-14180-D0 |
— | ||
|
58810
|
58810
58811-14180-04 Console Assy[08.1981 - 08.1983] MA61,RA6# BLUE,BLUE |
58811-14180-04 |
US $184.91 |
||
| replacement | |||||
|
58810
|
58810
58811-14180-J0 Console Assy[08.1981 - 08.1983] MA61,RA6# BLUE,BLUE |
58811-14180-J0 |
US $203.84 |
||
|
58827B
|
58827B
58827-20021 Spacer, Console Compartment Door Stopper[08.1981 - 12.1985] MA61,RA6#..GT,GTS,SPR |
58827-20021 |
US $7.16 |
||
|
58836
|
58836
58804-14020 Panel, Console, Upper FrontCONSOLE, UPPER FRONT [08.1981 - 08.1983] MA61 |
58804-14020 |
US $154.34 |
||
| replacement | |||||
|
58836
|
58836
58804-14021
Panel, Console, Upper Front
[08.1981 - 08.1983] MA61 |
58804-14021 |
— | ||
|
58836
|
58836
58804-14021
Panel, Console, Upper Front
[08.1983 - 12.1985] MA61 |
58804-14021 |
— | ||
|
58884
|
58884
55521-14050
Cover, Stereo Opening
[08.1981 - 12.1985] MA61,RA6#..CP,LB |
55521-14050 |
— | ||
| replacement | |||||
|
58884
|
58884
55521-14050-01
Cover, Stereo Opening
[08.1981 - 12.1985] MA61,RA6#..CP,LB |
55521-14050-01 |
— | ||
|
58885
|
58885
55522-14080 Cover, Radio Tuner Opening[08.1981 - 12.1985] MA61,RA6#..CP,LB |
55522-14080 |
US $21.99 |
||
| replacement | |||||
|
58885
|
58885
55522-20070 Cover, Radio Tuner Opening[08.1981 - 12.1985] MA61,RA6#..CP,LB |
55522-20070 |
US $25.69 |
||
|
58895
|
58895
55539-24010-01
Cover, Choke Knob Hole
[08.1983 - 12.1985] MA61..5F BLACK,BLACK |
55539-24010-01 |
— | ||
| replacement | |||||
|
58895
|
58895
55539-32010-C0 Cover, Cooler Switch Hole[08.1983 - 12.1985] MA61..5F BLACK,BLACK |
55539-32010-C0 |
from US $3.24 |
||
|
58895
|
58895
55539-24010-04
Cover, Spare Switch Hole
[08.1983 - 12.1985] MA61..5F BLUE,BLUE |
55539-24010-04 |
— | ||
| replacement | |||||
|
58895
|
58895
55539-32010-C0 Cover, Cooler Switch Hole[08.1983 - 12.1985] MA61..5F BLUE,BLUE |
55539-32010-C0 |
from US $3.24 |
||
|
58895
|
58895
55539-24010-12 Cover, Spare Switch Hole[08.1983 - 12.1985] MA61..5F DEEP MAROON,RED/MAROON |
55539-24010-12 |
US $8.01 |
||
| replacement | |||||
|
58895
|
58895
55539-32010-C0 Cover, Cooler Switch Hole[08.1983 - 12.1985] MA61..5F DEEP MAROON,RED/MAROON |
55539-32010-C0 |
from US $3.24 |
||
|
58896
|
58896
55539-14031-01 Cover, Spare Switch Hole[08.1983 - 12.1985] MA61 BLACK,BLACK |
55539-14031-01 |
US $8.59 |
||
|
58896
|
58896
55539-14031-04 Cover, Spare Switch Hole[08.1983 - 12.1985] MA61 BLUE,BLUE |
55539-14031-04 |
US $8.59 |
||
| replacement | |||||
|
58896
|
58896
55539-14031-01 Cover, Spare Switch Hole[08.1983 - 12.1985] MA61 BLUE,BLUE |
55539-14031-01 |
US $8.59 |
||
|
58896
|
58896
55539-14031-12 Cover, Spare Switch HoleSWITCH HOLE, NO.2 [08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
55539-14031-12 |
US $8.59 |
||
| replacement | |||||
|
58896
|
58896
55539-14031-01 Cover, Spare Switch Hole[08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
55539-14031-01 |
US $8.59 |
||
|
58905
|
58905
58905-24010-01
Door Sub-Assy, Console Compartment
[08.1981 - 12.1985] MA61 BLACK,BLACK |
58905-24010-01 |
— | ||
|
58905
|
58905
58905-24010-02
Door Sub-Assy, Console Compartment
[08.1981 - 08.1983] MA61 TERRA COTTA,RED/MAROON |
58905-24010-02 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-24010-01
Door Sub-Assy, Console Compartment
[08.1981 - 08.1983] MA61 TERRA COTTA,RED/MAROON |
58905-24010-01 |
— | ||
|
58905
|
58905
58905-24010-04
Door Sub-Assy, Console Compartment
[08.1981 - 12.1985] MA61 BLUE,BLUE |
58905-24010-04 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-24010-01
Door Sub-Assy, Console Compartment
[08.1981 - 12.1985] MA61 BLUE,BLUE |
58905-24010-01 |
— | ||
|
58905
|
58905
58905-24010-12
Door Sub-Assy, Console Compartment
[08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
58905-24010-12 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-24010-01
Door Sub-Assy, Console Compartment
[08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
58905-24010-01 |
— | ||
|
58907
|
58907
58907-14010
Hinge Sub-Assy, Console Compartment Door
[08.1981 - 12.1985] MA61,RA6#..GT,GTS,SPR |
58907-14010 |
— | ||
|
58908A
|
58908A
58908-14010 Lock Sub-Assy, Console Compartment DoorCONSOLE COMPARTMENT DOOR [08.1981 - 12.1985] MA61 |
58908-14010 |
US $31.89 |
||
|
58940
|
58940
58901-14090-01
Console Assy, Rear
[08.1982 - 08.1983] MA61 BLACK,BLACK |
58901-14090-01 |
— | ||
|
58940
|
58940
58901-14090-02
Console Assy, Rear
[08.1982 - 08.1983] MA61 TERRA COTTA,RED/MAROON |
58901-14090-02 |
— | ||
|
58940
|
58940
58901-14090-04
Console Assy, Rear
[08.1982 - 08.1983] MA61 BLUE,BLUE |
58901-14090-04 |
— | ||
|
58940
|
58940
58901-14100-01 Console Assy, RearREAR [08.1983 - 12.1985] MA61 BLACK,BLACK |
58901-14100-01 |
US $529.98 |
||
|
58940
|
58940
58901-14100-02 Console Assy, RearREAR [08.1983 - 12.1985] MA61 DEEP MAROON,RED/MAROON |
58901-14100-02 |
US $529.98 |
||
|
58940
|
58940
58901-14100-04 Console Assy, RearREAR [08.1983 - 12.1985] MA61 BLUE,BLUE |
58901-14100-04 |
US $529.98 |
||
|
58940
|
58940
58901-24020-01
Console Assy, Rear
[08.1981 - 01.1982] MA61 BLACK,BLACK |
58901-24020-01 |
— | ||
| replacements | |||||
|
58940
|
58940
55539-32010-C0 Cover, Cooler Switch Hole[08.1981 - 01.1982] MA61 BLACK,BLACK |
55539-32010-C0 |
from US $3.24 |
||
|
58940
|
58940
58901-24021-01
Console Assy, Rear
[08.1981 - 01.1982] MA61 BLACK,BLACK |
58901-24021-01 |
— | ||
|
58940
|
58940
58901-24020-02
Console Assy, Rear
[08.1981 - 01.1982] MA61 TERRA COTTA,RED/MAROON |
58901-24020-02 |
— | ||
| replacements | |||||
|
58940
|
58940
55539-32010-C0 Cover, Cooler Switch Hole[08.1981 - 01.1982] MA61 TERRA COTTA,RED/MAROON |
55539-32010-C0 |
from US $3.24 |
||
|
58940
|
58940
58901-24021-02 Console Assy, RearREAR [08.1981 - 01.1982] MA61 TERRA COTTA,RED/MAROON |
58901-24021-02 |
US $214.03 |
||
|
58940
|
58940
58901-24020-04
Console Assy, Rear
[08.1981 - 01.1982] MA61 BLUE,BLUE |
58901-24020-04 |
— | ||
| replacements | |||||
|
58940
|
58940
55539-32010-C0 Cover, Cooler Switch Hole[08.1981 - 01.1982] MA61 BLUE,BLUE |
55539-32010-C0 |
from US $3.24 |
||
|
58940
|
58940
58901-24021-04
Console Assy, Rear
[08.1981 - 01.1982] MA61 BLUE,BLUE |
58901-24021-04 |
— | ||
|
58940
|
58940
58901-24021-01
Console Assy, Rear
[01.1982 - 08.1982] MA61 BLACK,BLACK |
58901-24021-01 |
— | ||
|
58940
|
58940
58901-24021-02 Console Assy, RearREAR [01.1982 - 08.1982] MA61 TERRA COTTA,RED/MAROON |
58901-24021-02 |
US $214.03 |
||
|
58940
|
58940
58901-24021-04
Console Assy, Rear
[01.1982 - 08.1982] MA61 BLUE,BLUE |
58901-24021-04 |
— | ||
|
58949
|
58949
58919-24010 Plate, Console BoxCONSOLE BOX [08.1981 - 08.1982] MA61 |
58919-24010 |
US $9.90 |
||
|
58969A
|
58969A
58969-20010 Retainer, Console Compartment Door Stopper[08.1981 - 12.1985] MA61,RA6#..GT,GTS,SPR |
58969-20010 |
US $3.49 |
||
|
58996
|
58996
58996-14010 Bracket, Console Box Mounting, No.1CONSOLE BOX MOUNTING, NO.1 [08.1981 - 08.1983] MA61,RA6# |
58996-14010 |
US $15 |
||
| replacement | |||||
|
58996
|
58996
58996-14011 Bracket, Console Box Mounting, No.1[08.1981 - 08.1983] MA61,RA6# |
58996-14011 |
US $14.85 |
||
|
58996
|
58996
58996-14011 Bracket, Console Box Mounting, No.1[08.1983 - 12.1985] MA61,RA6# |
58996-14011 |
US $14.85 |
||
|
58997
|
58997
58997-24010 Bracket, Console Box Mounting, No.3[08.1981 - 12.1985] MA61,RA6# |
58997-24010 |
US $21.69 |
||
|
5541914020
|
5541914020
55419-14020 Cushion, Instrument Cluster Finish Panel |
55419-14020 |
US $0.73 |
||
|
9017604015
|
9017604015
90176-04015 New Genuine Part |
90176-04015 |
US $0.87 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9324954008
|
9324954008
93249-54008 New Genuine Part |
93249-54008 |
US $1.75 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.68 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
