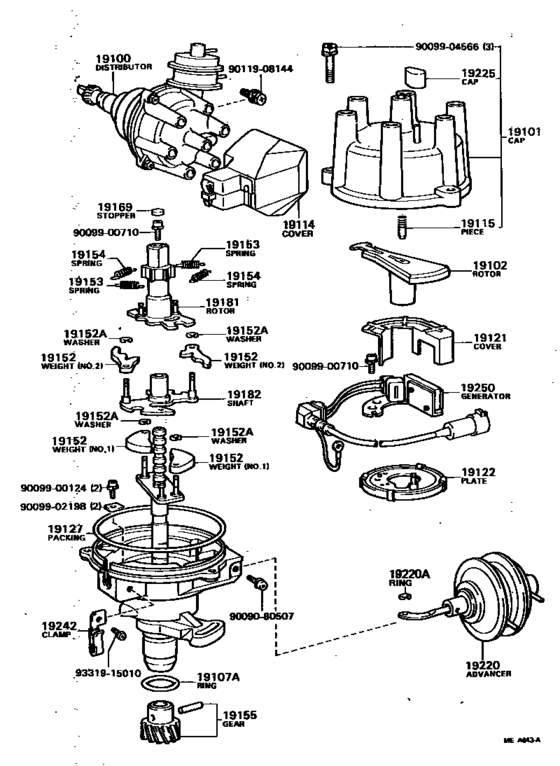

Distributor ([08.1981 - 08.1982] (8108-8208)5MGE) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- U.S.A.
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 12.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-43090 Distributor Assy[08.1981 - 08.1982] 5MGE..MA61 |
19100-43090 |
US $911.46 |
||
|
19100
|
19100
19100-43120 Distributor Assy[08.1982 - 08.1984] 5MGE..MA61 |
19100-43120 |
US $914.37 |
||
|
19100
|
19100
19100-43190 Distributor Assy[08.1984 - 12.1985] 5MGE..MA61 |
19100-43190 |
US $1,630.72 |
||
|
19101
|
19101
19101-43060
Cap Sub-Assy, Distributor
[08.1981 - 02.1984] 5MGE..MA61 |
19101-43060 |
— | ||
| replacement | |||||
|
19101
|
19101
19101-70011 Cap Sub-Assy, Distributor[08.1981 - 02.1984] 5MGE..MA61 |
19101-70011 |
US $51.83 |
||
|
19101
|
19101
19101-43190
Cap Sub-Assy, Distributor
[08.1984 - 12.1985] 5MGE..MA61 |
19101-43190 |
— | ||
|
19101
|
19101
19101-70011 Cap Sub-Assy, Distributor[02.1984 - 08.1984] 5MGE..MA61 |
19101-70011 |
US $51.83 |
||
|
19102
|
19102
19102-43060 Rotor Sub-Assy, Distributor[08.1981 - 08.1982] 5MGE..MA61 |
19102-43060 |
US $17.30 |
||
|
19102
|
19102
19102-43110 Rotor Sub-Assy, Distributor[08.1982 - 12.1985] 5MGE..MA61 |
19102-43110 |
US $17.94 |
||
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[08.1981 - 12.1985] 5MGE..MA61 |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[08.1981 - 12.1985] 5MGE..MA61 |
90099-14088 |
from US $2.50 |
||
|
19114
|
19114
19114-43010
Cover, Water Proof(For Distributor)
[08.1981 - 08.1984] 5MGE..MA61 |
19114-43010 |
— | ||
| replacement | |||||
|
19114
|
19114
19114-43020
Cover, Water Proof(For Distributor)
[08.1981 - 08.1984] 5MGE..MA61 |
19114-43020 |
— | ||
|
19114
|
19114
19114-43030
Cover, Water Proof(For Distributor)
[08.1984 - 12.1985] 5MGE..MA61 |
19114-43030 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1981 - 12.1985] 5MGE..MA61; 22R#..RA6# |
19115-50010 |
— | ||
|
19121
|
19121
19121-27020
Cover, Dust Proof
[08.1981 - 08.1982] 5MGE..MA61 |
19121-27020 |
— | ||
|
19122
|
19122
19122-88262
Plate, Stationary, Distributor
[08.1981 - 08.1982] 5MGE..MA61; 22R..RA64 |
19122-88262 |
— | ||
|
19127
|
19127
19127-52020
Packing, Dust Proof
[08.1981 - 12.1985] 5MGE..MA61 |
19127-52020 |
— | ||
| replacement | |||||
|
19127
|
19127
19127-61240 Packing, Dust Proof[08.1981 - 12.1985] 5MGE..MA61 |
19127-61240 |
from US $4.02 |
||
|
19152
|
19152
19152-43060 Weight, Governor[08.1981 - 08.1982] 5MGE..MA61 NO.2 |
19152-43060 |
US $11.79 |
||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1981 - 08.1982] 5MGE..MA61 NO.1 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1981 - 08.1982] 5MGE..MA61; 22R..RA64 |
90099-07109 |
— | ||
|
19153
|
19153
19153-43061
Spring, Governor, B
[08.1981 - 08.1982] 5MGE..MA61 |
19153-43061 |
— | ||
|
19154
|
19154
19153-43090
Spring, Governor, B
[08.1981 - 08.1982] 5MGE..MA61 |
19153-43090 |
— | ||
|
19155
|
19155
19195-43060 Gear, Spiral, Distributor[08.1981 - 12.1985] 5MGE..MA61 |
19195-43060 |
US $50.09 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1981 - 08.1982] 5MGE..MA61; 22R..RA64 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1981 - 08.1982] 5MGE..MA61; 22R..RA64 |
19169-63011 |
— | ||
|
19181
|
19181
19181-43060
Rotor, Distributor, Signal
[08.1981 - 08.1982] 5MGE..MA61 |
19181-43060 |
— | ||
|
19182
|
19182
19182-43060
Shaft, Distributor, Driving
[08.1981 - 08.1982] 5MGE..MA61 |
19182-43060 |
— | ||
|
19220
|
19220
19220-43090 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1981 - 08.1982] 5MGE..MA61 |
19220-43090 |
US $103.38 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1981 - 08.1982] 5MGE..MA61; 22R..RA64 |
90099-07109 |
— | ||
|
19225
|
19225
19225-41140 Cap, Rubber[08.1981 - 12.1985] 5MGE..MA61 |
19225-41140 |
US $2.91 |
||
|
19242
|
19242
19242-26250 Clamp, Cord[08.1981 - 08.1982] 5MGE..MA61 |
19242-26250 |
US $2.04 |
||
|
19242
|
19242
90929-01042 Clamp, Cord[08.1982 - 12.1985] 5MGE..MA61 |
90929-01042 |
US $4.51 |
||
|
19250
|
19250
19250-43060 Generator Assy, SignalSIGNAL [08.1981 - 08.1982] 5MGE..MA61 |
19250-43060 |
US $171.81 |
||
|
9009080507
|
9009080507
90090-80507
New Genuine Part
|
90090-80507 |
— | ||
| replacement | |||||
|
9009080507
|
9009080507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9011908144
|
9011908144
90119-08144
New Genuine Part
|
90119-08144 |
— | ||
| replacement | |||||
|
9011908144
|
9011908144
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
