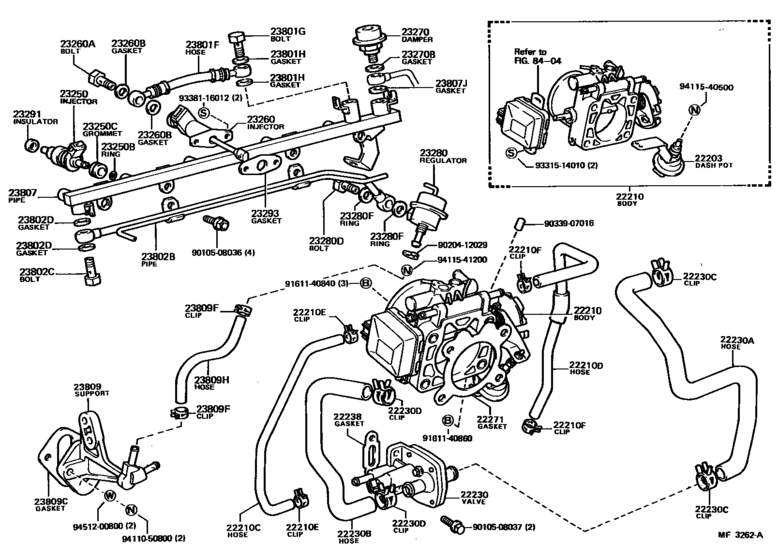

Fuel Injection System ([08.1981 - 08.1982] (8108-8208)5MGE) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- U.S.A.
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 12.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-43020
Dash Pot Sub-Assy(For Throttle Body)
[08.1981 - 12.1985] 5MGE..MA61..5F |
22203-43020 |
— | ||
|
22210
|
22210
22210-43100
Body Assy, Throttle
[08.1981 - 11.1981] 5MGE..MA61..5F |
22210-43100 |
— | ||
| replacements | |||||
|
22210
|
22210
22210-43101 Body Assy, ThrottleTHROTTLE [08.1981 - 11.1981] 5MGE..MA61..5F |
22210-43101 |
US $678.50 |
||
|
22210
|
22210
88689-24021
Hose (Engine To Magnet Valve)
[08.1981 - 11.1981] 5MGE..MA61..5F |
88689-24021 |
— | ||
|
22210
|
22210
22210-43101 Body Assy, ThrottleTHROTTLE [11.1981 - 08.1982] 5MGE..MA61..5F |
22210-43101 |
US $678.50 |
||
|
22210
|
22210
22210-43160
Body Assy, Throttle
[08.1982 - 08.1984] 5MGE..MA61..5F |
22210-43160 |
— | ||
|
22210
|
22210
22210-43320 Body Assy, ThrottleTHROTTLE [08.1984 - 12.1985] 5MGE..MA61..5F |
22210-43320 |
US $678.50 |
||
|
22210C
|
22210C
16261-43020
Hose, Water By-Pass, No.1
[08.1981 - 08.1982] 5MGE..MA61 |
16261-43020 |
— | ||
|
22210C
|
22210C
16261-43030
Hose, Water By-Pass, No.1
[08.1982 - 12.1985] 5MGE..MA61 |
16261-43030 |
— | ||
|
22210D
|
22210D
16264-43020 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [08.1981 - 08.1982] 5MGE..MA61 |
16264-43020 |
US $13.25 |
||
|
22210D
|
22210D
16264-43021
Hose, Water By-Pass, No.2
[08.1982 - 12.1985] 5MGE..MA61 |
16264-43021 |
— | ||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
96135-51300 |
from US $1.92 |
||
|
22230
|
22230
22230-43020
Valve Assy, Auxiliary Air
[08.1981 - 08.1982] 5MGE..MA61 |
22230-43020 |
— | ||
|
22230A
|
22230A
17341-43030
Hose, Auxiliary Air Valve, No.1
[08.1981 - 08.1982] 5MGE..MA61 |
17341-43030 |
— | ||
|
22230B
|
22230B
17342-43020
Hose, Auxiliary Air Valve, No.2
[08.1981 - 08.1982] 5MGE..MA61 |
17342-43020 |
— | ||
|
22230C
|
22230C
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1981 - 08.1982] 5MGE..MA61 ID=21 |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
22230C
|
22230C
90467-21006 Clip(For Ventilation Hose No.2)[08.1981 - 08.1982] 5MGE..MA61 ID=21 |
90467-21006 |
US $2.56 |
||
|
22230C
|
22230C
90467-23003
Clip(For Ventilation Hose)
[08.1981 - 08.1982] 5MGE..MA61 ID=23 |
90467-23003 |
— | ||
| replacement | |||||
|
22230C
|
22230C
96134-42300 Clip Or Clamp(For Ventilation Hose)[08.1981 - 08.1982] 5MGE..MA61 ID=23 |
96134-42300 |
US $1.44 |
||
|
22230D
|
22230D
90467-23003
Clip(For Ventilation Hose)
[08.1981 - 08.1982] 5MGE..MA61 |
90467-23003 |
— | ||
| replacement | |||||
|
22230D
|
22230D
96134-42300 Clip Or Clamp(For Ventilation Hose)[08.1981 - 08.1982] 5MGE..MA61 |
96134-42300 |
US $1.44 |
||
|
22238
|
22238
22238-43010
Gasket, Water Outlet
[08.1981 - 08.1982] 5MGE..MA61 |
22238-43010 |
— | ||
| replacement | |||||
|
22238
|
22238
22238-43020
Gasket, Water Outlet
[08.1981 - 08.1982] 5MGE..MA61 |
22238-43020 |
— | ||
|
22271
|
22271
22271-43010
Gasket, Throttle Body
[08.1981 - 12.1985] 5MGE..MA61 |
22271-43010 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-43030 Gasket, Throttle Body[08.1981 - 12.1985] 5MGE..MA61 |
22271-43030 |
US $5.24 |
||
|
23250
|
23250
23209-45011
Injector Assy, Fuel
[01.1984 - 12.1985] 5MGE..MA61; 22REC..RA6# |
23209-45011 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-43010 Injector Assy, FuelFUEL [01.1984 - 12.1985] 5MGE..MA61; 22REC..RA6# |
23209-43010 |
US $260.10 |
||
|
23250
|
23250
23250-45011
Injector Assy, Fuel
[08.1981 - 01.1984] 5MGE..MA61; 22REC..RA6# |
23250-45011 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-43010
Injector Assy, Cold Start Fuel
[08.1981 - 11.1981] 5MGE..MA61 |
23260-43010 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49066
Injector Assy, Cold Start Fuel
[08.1981 - 11.1981] 5MGE..MA61 |
23260-49066 |
— | ||
|
23260
|
23260
23260-43020
Injector Assy, Cold Start Fuel
[11.1981 - 12.1983] 5MGE..MA61 |
23260-43020 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49096
Injector Assy, Cold Start Fuel
[11.1981 - 12.1983] 5MGE..MA61 |
23260-49096 |
— | ||
|
23260
|
23260
23260-49075
Injector Assy, Cold Start Fuel
[12.1983 - 06.1985] 5MGE..MA61 |
23260-49075 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49096
Injector Assy, Cold Start Fuel
[12.1983 - 06.1985] 5MGE..MA61 |
23260-49096 |
— | ||
|
23260
|
23260
23260-49095
Injector Assy, Cold Start Fuel
[06.1985 - 12.1985] 5MGE..MA61 |
23260-49095 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49096
Injector Assy, Cold Start Fuel
[06.1985 - 12.1985] 5MGE..MA61 |
23260-49096 |
— | ||
|
23260A
|
23260A
90401-10008
Bolt, Union
[08.1981 - 12.1985] 5MGE..MA61 |
90401-10008 |
— | ||
|
23260B
|
23260B
90099-01459
Gasket
[08.1981 - 12.1985] 5MGE..MA61 |
90099-01459 |
— | ||
|
23270
|
23270
23270-43010
Damper Assy, Fuel Pressure Pulsation
[08.1981 - 12.1985] 5MGE..MA61 |
23270-43010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-42010 Damper Assy, Fuel Pressure Pulsation[08.1981 - 12.1985] 5MGE..MA61 |
23270-42010 |
US $94.72 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90430-17002 |
US $3.36 |
||
|
23280
|
23280
23280-43020
Regulator Assy, Fuel Pressure
[08.1981 - 12.1985] 5MGE..MA61 |
23280-43020 |
— | ||
|
23280D
|
23280D
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1981 - 12.1985] 5MGE..MA61 |
90401-12097 |
from US $3.08 |
||
|
23280F
|
23280F
90430-12005 Gasket(For Water Hole)[08.1981 - 12.1985] 5MGE..MA61 |
90430-12005 |
from US $0.76 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-43010
Gasket, Cold Start Injector
[08.1981 - 12.1985] 5MGE..MA61 |
23293-43010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-43030
Gasket, Cold Start Injector
[08.1981 - 12.1985] 5MGE..MA61 |
23293-43030 |
— | ||
|
23801F
|
23801F
90923-01250 Hose, Fuel, No.1FUEL, NO.1 [08.1981 - 12.1985] 5MGE..MA61 |
90923-01250 |
US $27.52 |
||
|
23801G
|
23801G
90401-10008
Bolt, Union
[08.1981 - 12.1985] 5MGE..MA61 |
90401-10008 |
— | ||
|
23801H
|
23801H
90099-01459
Gasket
[08.1981 - 12.1984] 5MGE..MA61 |
90099-01459 |
— | ||
|
23801H
|
23801H
90430-10204 Gasket(For Water Hole)[12.1984 - 12.1985] 5MGE..MA61 |
90430-10204 |
from US $3.68 |
||
|
23802B
|
23802B
23802-43010
Pipe Sub-Assy, Fuel, No.2
[08.1981 - 12.1985] 5MGE..MA61 |
23802-43010 |
— | ||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1981 - 12.1985] 5MGE..MA61 |
90401-12097 |
from US $3.08 |
||
|
23802D
|
23802D
90430-12005 Gasket(For Water Hole)[08.1981 - 12.1985] 5MGE..MA61 |
90430-12005 |
from US $0.76 |
||
|
23807
|
23807
23814-43020
Pipe Sub-Assy, Fuel Delivery
[08.1981 - 12.1985] 5MGE..MA61 |
23814-43020 |
— | ||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[08.1981 - 12.1985] 5MGE..MA61; 22REC..RA6# |
90430-14002 |
US $2.88 |
||
|
23809
|
23809
23849-41021
Support Sub-Assy, Fuel Pipe
[08.1981 - 08.1983] 5MGE..MA61 |
23849-41021 |
— | ||
|
23809
|
23809
23849-41050
Support Sub-Assy, Fuel Pipe
[08.1983 - 12.1985] 5MGE..MA61 |
23849-41050 |
— | ||
|
23809C
|
23809C
90923-05004
Gasket, Fuel Pump(For Cylinder Block Plate Plug)
[08.1981 - 08.1983] 5MGE..MA61 |
90923-05004 |
— | ||
| replacement | |||||
|
23809C
|
23809C
90923-05020
Gasket, Fuel Pump
[08.1981 - 08.1983] 5MGE..MA61 |
90923-05020 |
— | ||
|
23809F
|
23809F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1981 - 12.1985] 5MGE..MA61 |
90467-13001 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1981 - 12.1985] 5MGE..MA61 |
96135-51300 |
from US $1.92 |
||
|
23809H
|
23809H
23271-43030 Hose, Fuel Pipe Support To RegulatorFUEL PIPE SUPPORT TO REGULATOR [08.1981 - 08.1983] 5MGE..MA61 |
23271-43030 |
US $29.56 |
||
|
23809H
|
23809H
23271-43050 Hose, Fuel Pipe Support To Regulator[08.1983 - 12.1985] 5MGE..MA61 |
23271-43050 |
US $40.77 |
||
|
9010508036
|
9010508036
90105-08036 New Genuine Part |
90105-08036 |
US $1.75 |
||
|
9010508037
|
9010508037
90105-08037
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08037 |
— | ||
| replacement | |||||
|
9010508037
|
9010508037
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9020412029
|
9020412029
90204-12029
Washer, Spring(For Steering Wheel Set)
|
90204-12029 |
— | ||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9161140860
|
9161140860
91611-40860 Bolt(For Rocker Support Set) |
91611-40860 |
US $2.33 |
||
| replacement | |||||
|
9161140860
|
9161140860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.60 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
