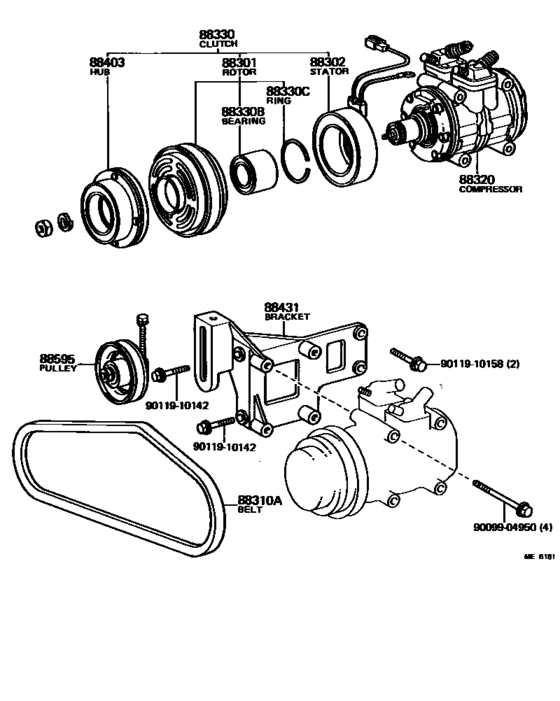

Heating & Air Conditioning - Compressor ([08.1981 - ] (8108- )MA61) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- U.S.A.
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 12.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-14010
Rotor Sub-Assy, Magnet Clutch
[08.1981 - 12.1985] MA61 |
88412-14010 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[08.1981 - 08.1983] MA61,RA6# |
88411-14050 |
— | ||
|
88310A
|
88310A
99332-10980
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1981 - 12.1985] MA61 |
99332-10980 |
— | ||
|
88320
|
88320
88320-14340
Compressor Assy, Cooler
[08.1981 - 12.1985] MA61 10P15C |
88320-14340 |
— | ||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[08.1981 - 12.1985] MA61 |
88410-14090 |
US $551.82 |
||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[08.1981 - 08.1983] MA61,RA6# |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07114 Ring, Snap (For Magnet Clutch)[08.1981 - 08.1983] MA61,RA6# |
90099-07114 |
from US $1.21 |
||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[08.1981 - 08.1983] MA61,RA6# |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[08.1981 - 08.1983] MA61,RA6# |
88403-12030 |
— | ||
|
88431
|
88431
88431-24020
Bracket, Compressor Mounting, No.1
[08.1981 - 12.1985] MA61 |
88431-24020 |
— | ||
|
88595
|
88595
88440-25010
Pulley, Cooler Compressor Idle
[08.1982 - 12.1985] MA61 |
88440-25010 |
— | ||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[08.1982 - 12.1985] MA61 |
88440-28050 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[08.1981 - 08.1982] MA61 |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[08.1981 - 08.1982] MA61 |
88440-28050 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9011910142
|
9011910142
90119-10142
New Genuine Part
|
90119-10142 |
— | ||
|
9011910158
|
9011910158
90119-10158 New Genuine Part |
90119-10158 |
US $2.48 |
||
