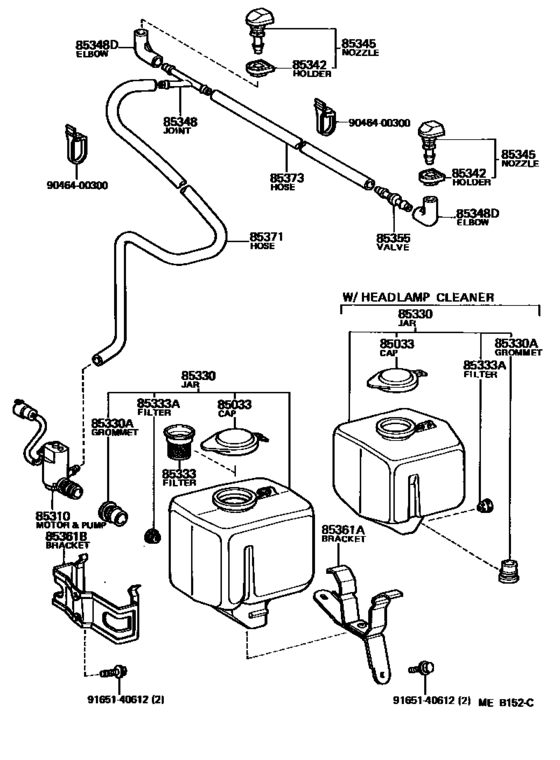

Windshield Washer ([08.1981 - ] (8108- )MA61) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- U.S.A.
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1981
- To
- 12.1985
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-12320 Cap Assy, Windshield Washer[08.1983 - 12.1985] MA61,RA6# |
85332-12320 |
US $2.10 |
||
|
85033
|
85033
85332-20060
Cap Assy, Windshield Washer
[08.1981 - 08.1983] MA61; RA64..CBR COLD SPEC |
85332-20060 |
— | ||
| replacement | |||||
|
85033
|
85033
85332-12320 Cap Assy, Windshield Washer[08.1981 - 08.1983] MA61; RA64..CBR COLD SPEC |
85332-12320 |
US $2.10 |
||
|
85310
|
85310
85310-14050
Motor And Pump Assy, Windshield Washer
[08.1982 - 08.1983] MA61 W/HEADLAMP CLEANER |
85310-14050 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12310
Motor And Pump Assy, Windshield Washer
[08.1982 - 08.1983] MA61 W/HEADLAMP CLEANER |
85330-12310 |
— | ||
|
85310
|
85310
85310-14060
Motor And Pump Assy, Windshield Washer
[08.1983 - 08.1984] MA61,RA6#; MA61 W/HEADLAMP CLEANER |
85310-14060 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12310
Motor And Pump Assy, Windshield Washer
[08.1983 - 08.1984] MA61,RA6#; MA61 W/HEADLAMP CLEANER |
85330-12310 |
— | ||
|
85310
|
85310
85310-14070
Motor And Pump Assy, Windshield Washer
[08.1984 - 12.1985] MA61,RA6#; MA61 W/HEADLAMP CLEANER |
85310-14070 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12310
Motor And Pump Assy, Windshield Washer
[08.1984 - 12.1985] MA61,RA6#; MA61 W/HEADLAMP CLEANER |
85330-12310 |
— | ||
|
85310
|
85310
85310-20130
Motor And Pump Assy, Windshield Washer
[08.1981 - 08.1983] MA61; RA64..CBR COLD SPEC |
85310-20130 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-12310
Motor And Pump Assy, Windshield Washer
[08.1981 - 08.1983] MA61; RA64..CBR COLD SPEC |
85330-12310 |
— | ||
|
85330
|
85330
85330-14360
Jar Assy, Windshield Washer
[08.1981 - 12.1985] MA61 |
85330-14360 |
— | ||
|
85330
|
85330
85331-14450
Jar Assy, Windshield Washer
[08.1982 - 12.1985] MA61 W/HEADLAMP CLEANER |
85331-14450 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1982 - 08.1984] MA61 W/HEADLAMP CLEANER |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1982 - 08.1984] MA61 W/HEADLAMP CLEANER |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1982 - 08.1984] MA61 W/HEADLAMP CLEANER |
90068-32002 |
US $7.46 |
||
|
85330A
|
85330A
90099-32103
Bush, Windshield Washer Jar
[08.1981 - 12.1985] MA61,RA6#..EFI |
90099-32103 |
— | ||
|
85333
|
85333
85333-20010
Filter, Windshield Washer Jar
[08.1981 - 12.1985] MA61 |
85333-20010 |
— | ||
|
85333A
|
85333A
85333-20020
Filter, Windshield Washer Jar
[08.1981 - 12.1985] MA61 |
85333-20020 |
— | ||
|
85342
|
85342
85342-14010 Holder, Washer Nozzle[08.1981 - 12.1985] MA61,RA6# |
85342-14010 |
US $3.84 |
||
|
85345
|
85345
85035-14300
Nozzle, Windshield Washer
[08.1984 - 12.1985] MA61,RA6# |
85035-14300 |
— | ||
|
85345
|
85345
85035-19015
Nozzle, Windshield Washer
[08.1981 - 08.1984] MA61,RA6# |
85035-19015 |
— | ||
|
85348
|
85348
85348-40010
Joint, Windshield Washer Hose, No.1
[08.1981 - 08.1984] MA61 3-WAY |
85348-40010 |
— | ||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1984 - 12.1985] MA61,RA6# |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[08.1981 - 08.1984] MA61,RA6# |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[08.1981 - 08.1984] MA61,RA6# |
85355-14481 |
US $0.98 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[08.1983 - 12.1985] MA61,RA6# |
85031-12250 |
— | ||
|
85355
|
85355
85031-14080
Joint, Windshield Washer Hose, No.1
[08.1981 - 08.1983] MA61,RA6# |
85031-14080 |
— | ||
| replacement | |||||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[08.1981 - 08.1983] MA61,RA6# |
85031-12250 |
— | ||
|
85361A
|
85361A
85036-14160
Bracket, Windshield Washer, No.1
[08.1981 - 12.1985] MA61 |
85036-14160 |
— | ||
|
85361A
|
85361A
85036-14180
Bracket, Windshield Washer, No.1
[08.1982 - 12.1985] MA61 W/HEADLAMP CLEANER |
85036-14180 |
— | ||
|
85361B
|
85361B
85361-14390
Bracket, Windshield Washer, No.2
[08.1984 - 12.1985] MA61..USA |
85361-14390 |
— | ||
|
85361B
|
85361B
85361-14440
Bracket, Windshield Washer, No.2
[08.1981 - 08.1984] MA61 |
85361-14440 |
— | ||
|
85361B
|
85361B
85361-14540
Bracket, Windshield Washer, No.2
[08.1982 - 08.1984] MA61 W/HEADLAMP CLEANER |
85361-14540 |
— | ||
|
85361B
|
85361B
85361-14570
Bracket, Windshield Washer, No.2
[08.1984 - 12.1985] MA61..USA W/HEADLAMP CLEANER |
85361-14570 |
— | ||
|
85371
|
85371
90099-33072
Hose, Windshield Washer (From Motor To Joint)
[08.1984 - 12.1985] MA61 L=800,W/HEADLAMP CLEANER |
90099-33072 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[08.1984 - 12.1985] MA61 L=800,W/HEADLAMP CLEANER |
90099-33075 |
from US $6.64 |
||
|
85371
|
85371
90099-33074
Hose, Windshield Washer (From Joint To Joint), No.2
[08.1984 - 12.1985] MA61 *H,L=850 |
90099-33074 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1984 - 12.1985] MA61 *H,L=850 |
90099-33080 |
from US $5.99 |
||
|
85371
|
85371
90099-33299 Joint, Windshield Washer Elbow, No.2[08.1982 - 08.1984] MA61 L=1000,W/HEADLAMP CLEANER |
90099-33299 |
from US $4.37 |
||
|
85371
|
85371
90099-33332
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1981 - 08.1984] MA61 |
90099-33332 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[08.1981 - 08.1984] MA61 |
90099-33334 |
— | ||
|
85373
|
85373
90099-33061
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1984 - 12.1985] MA61,RA6# *H,L=550 |
90099-33061 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1984 - 12.1985] MA61,RA6# *H,L=550 |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33299 Joint, Windshield Washer Elbow, No.2[08.1981 - 08.1984] MA61 L=1000 |
90099-33299 |
from US $4.37 |
||
|
9046400300
|
9046400300
90464-00300
New Genuine Part
|
90464-00300 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
