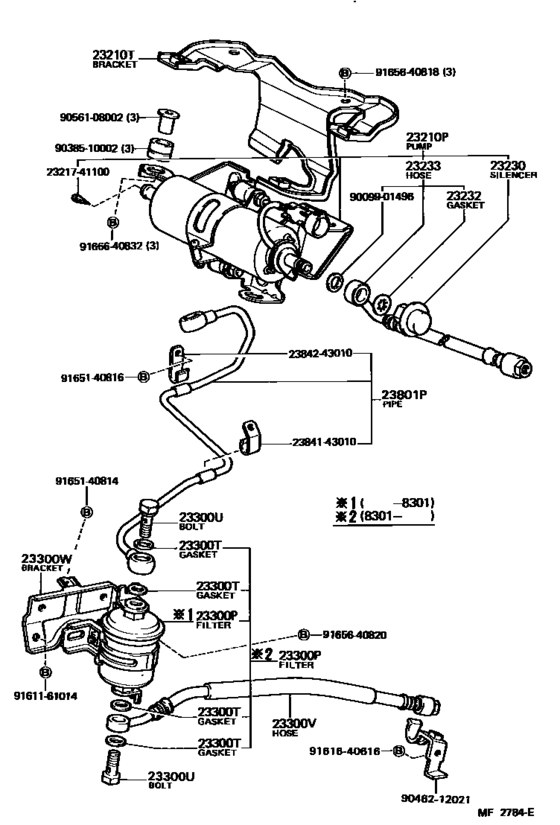

Fuel Injection System ([12.1981 - 08.1983] (8112-8308)5MGE) Diagram Toyota CELICA
- Year
- 1982 - 1985
- Sales region
- Europe
- Frame
- MA61
- grade
- SPR
- body
- LB
- ENGINE
- 5MGE
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 12.1985
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
- Destination
- SAA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23210P
|
23210P
23210-70020
Pump Assy, Fuel W/motor & Bracket
[09.1982 - 08.1983] 5MGE..MA61 |
23210-70020 |
— | ||
|
23210P
|
23210P
23210-70021
Pump Assy, Fuel W/motor & Bracket
[01.1982 - 09.1982] 5MGE..MA61 |
23210-70021 |
— | ||
| replacement | |||||
|
23210P
|
23210P
23210-70020
Pump Assy, Fuel W/motor & Bracket
[01.1982 - 09.1982] 5MGE..MA61 |
23210-70020 |
— | ||
|
23210T
|
23210T
23265-70010
Bracket, Fuel Pump
[12.1981 - 08.1983] 5MGE..MA61 |
23265-70010 |
— | ||
|
23230
|
23230
23230-26080
Silencer Assy
[12.1981 - 05.1983] 5MGE..MA61 |
23230-26080 |
— | ||
|
23230
|
23230
23230-74020
Silencer Assy
[05.1983 - 08.1983] 5MGE..MA61 |
23230-74020 |
— | ||
|
23232
|
23232
23232-26080 Gasket(For Fuel Pump Hose)[12.1981 - 08.1982] 5MGE..MA61 |
23232-26080 |
US $3.20 |
||
| replacement | |||||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[12.1981 - 08.1982] 5MGE..MA61 |
23232-41081 |
from US $1.40 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.1982 - 08.1983] 5MGE..MA61 |
23232-41081 |
from US $1.40 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[08.1983 - 12.1985] 4AGE..AA63 PUMP TO BRACKET; 5M#..MA61 PUMP TO BRACKET; 22REC..RA65 PUMP TO BRACKET |
23239-16010 |
from US $1.87 |
||
|
23233
|
23233
90923-01290 Hose, Fuel PumpFUEL PUMP [08.1983 - 12.1985] 4AGE..AA63 BRACKET TO FUEL PIPE; 5M#..MA61 BRACKET TO FUEL PIPE |
90923-01290 |
US $123.76 |
||
|
23233
|
23233
90999-99094 Hose, Fuel Pump[01.1982 - 08.1982] 5MGE..MA61 |
90999-99094 |
US $112.11 |
||
| replacement | |||||
|
23233
|
23233
90999-99117
Hose, Fuel Pump
[01.1982 - 08.1982] 5MGE..MA61 |
90999-99117 |
— | ||
|
23233
|
23233
90999-99117
Hose, Fuel Pump
[08.1982 - 05.1983] 5MGE..MA61 |
90999-99117 |
— | ||
|
23233
|
23233
90999-99128 Hose, Fuel PumpFUEL PUMP [05.1983 - 08.1983] 5MGE..MA61 |
90999-99128 |
US $129.58 |
||
|
23300P
|
23300P
23300-43020 Filter, Fuel(For Efi)FUEL(FOR EFI) [12.1981 - 01.1983] 5MGE..MA61 |
23300-43020 |
US $112.11 |
||
| replacement | |||||
|
23300P
|
23300P
23300-49065
Filter, Fuel(For Efi)
[12.1981 - 01.1983] 5MGE..MA61 |
23300-49065 |
— | ||
|
23300P
|
23300P
23300-49025 Filter, Fuel(For Efi)FUEL(FOR EFI) [01.1983 - 08.1983] 5MGE..MA61 |
23300-49025 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-49065
Filter, Fuel(For Efi)
[01.1983 - 08.1983] 5MGE..MA61 |
23300-49065 |
— | ||
|
23300P
|
23300P
23300-49065
Filter, Fuel(For Efi)
[08.1983 - 12.1985] 5M#..MA61 |
23300-49065 |
— | ||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[12.1981 - 12.1985] 4AGE..AA63; 5M#..MA61; 22REC..RA65 |
90430-12005 |
from US $0.76 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[12.1981 - 12.1985] 4AGE..AA63; 5M#..MA61; 22REC..RA65 |
90401-12097 |
from US $3.08 |
||
|
23300V
|
23300V
90923-01248 Hose, Fuel(For Fuel Inlet)FUEL(FOR FUEL INLET) [12.1981 - 11.1982] 5MGE..MA61 |
90923-01248 |
US $113.57 |
||
|
23300V
|
23300V
90923-01282 Hose, Fuel(For Fuel Inlet)FUEL(FOR FUEL INLET) [11.1982 - 12.1985] 5MGE..MA61 |
90923-01282 |
US $131.04 |
||
|
23300W
|
23300W
23264-43010 Bracket, Fuel Filter[12.1981 - 12.1985] 5M#..MA61 |
23264-43010 |
US $18.35 |
||
|
23801P
|
23801P
23801-43020
Pipe Sub-Assy, Fuel, No.1
[12.1981 - 12.1985] 5MGE..MA61 |
23801-43020 |
— | ||
|
2321741100
|
2321741100
23217-41100
Filter, Suction
|
23217-41100 |
— | ||
|
2384143010
|
2384143010
23841-43010
Clamp, Fuel Pipe(hose), No.1
|
23841-43010 |
— | ||
|
2384243010
|
2384243010
23842-43010
Clamp, Fuel Pipe(hose), No.2
|
23842-43010 |
— | ||
|
9009901496
|
9009901496
90099-01496
Washer(For Fuel Pump Hose)
|
90099-01496 |
— | ||
|
9038510002
|
9038510002
90385-10002
Bush(For Brake Traction Actuator Bracket)
|
90385-10002 |
— | ||
|
9046212021
|
9046212021
90462-12021
New Genuine Part
|
90462-12021 |
— | ||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9161161014
|
9161161014
91611-61014
New Genuine Part
|
91611-61014 |
— | ||
| replacement | |||||
|
9161161014
|
9161161014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9166640832
|
9166640832
91666-40832 New Genuine Part |
91666-40832 |
US $2.18 |
||
| replacement | |||||
|
9166640832
|
9166640832
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
