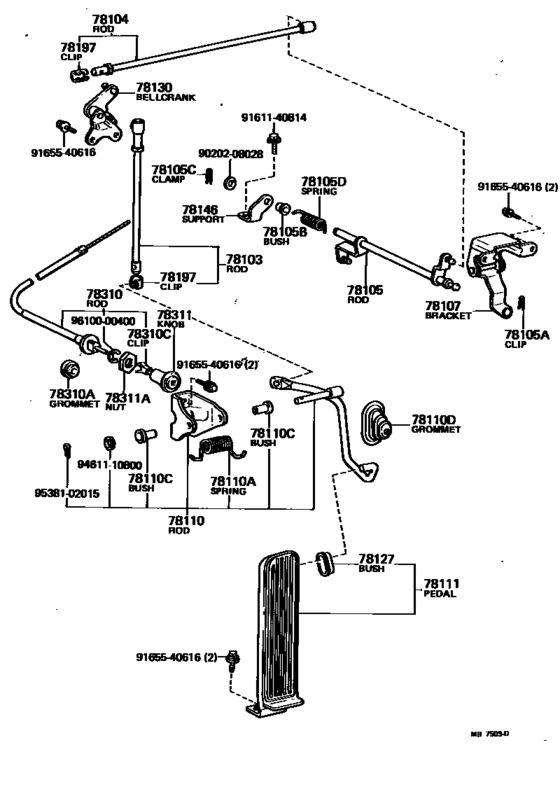

Accelerator Link ([08.1977 - ] (7708- )RA40..LHD..GT) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- RA40
- grade
- GT
- body
- LB
- ENGINE
- 18RG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78103
|
78103
78103-14130 Rod Sub-Assy, Accelerator Connecting, No.1ACCELERATOR CONNECTING, NO.1 [08.1977 - 07.1981] RA40..LHD..GT |
78103-14130 |
US $9.17 |
||
| replacement | |||||
|
78103
|
78103
78105-90A01
Rod Sub-Assy, Accelerator Connecting, No.1
[08.1977 - 07.1981] RA40..LHD..GT |
78105-90A01 |
— | ||
|
78104
|
78104
78104-14120 Rod Sub-Assy, Accelerator Connecting, No.2ACCELERATOR CONNECTING, NO.2 [08.1977 - 07.1981] RA40..LHD..GT |
78104-14120 |
US $10.63 |
||
| replacement | |||||
|
78104
|
78104
78104-20092
Rod Sub-Assy, Accelerator Connecting, No.4
[08.1977 - 07.1981] RA40..LHD..GT |
78104-20092 |
— | ||
|
78105
|
78105
78106-14150
Rod Sub-Assy, Accelerator Connecting, No.3
[08.1977 - 07.1981] RA40..LHD..GT |
78106-14150 |
— | ||
|
78105A
|
78105A
90468-16012 Pin, Sub Seat Cushion Pin[08.1977 - 07.1981] RA40 |
90468-16012 |
US $4.48 |
||
|
78105B
|
78105B
90386-08077 Bush (For Throttle Cam Shaft)[08.1977 - 07.1981] RA40..GT |
90386-08077 |
from US $1.44 |
||
|
78105D
|
78105D
90508-14379 Spring (For Accelerator Torque Rod)[08.1977 - 07.1981] RA40..GT |
90508-14379 |
US $3.35 |
||
|
78107
|
78107
78170-14090
Bracket Sub-Assy, Accelerator Torque Rod
[08.1977 - 07.1981] RA40..LHD..GT |
78170-14090 |
— | ||
|
78110
|
78110
78120-14150
Rod Assy, Accelerator Pedal
[08.1977 - 06.1978] RA40..LHD..GT |
78120-14150 |
— | ||
|
78110
|
78110
78120-14151
Rod Assy, Accelerator Pedal
[06.1978 - 04.1979] RA40..LHD..GT |
78120-14151 |
— | ||
|
78110
|
78110
78120-14152
Rod Assy, Accelerator Pedal
[04.1979 - 07.1981] RA40..LHD..GT |
78120-14152 |
— | ||
|
78110A
|
78110A
90508-23001
Spring (For Accelerator Pedal Rod)
[08.1977 - 07.1981] RA40..LHD |
90508-23001 |
— | ||
|
78110C
|
78110C
90386-08155 Bush (For Accelerator Pedal Rod)[08.1977 - 07.1981] RA40,TA40..LHD |
90386-08155 |
US $1.14 |
||
|
78110D
|
78110D
78199-22020
Grommet (For Accelerator Pedal Rod)
[08.1977 - 07.1981] RA40..LHD |
78199-22020 |
— | ||
|
78111
|
78111
78010-14011
Pedal, Accelerator
[06.1978 - 04.1979] RA40,TA40..LHD |
78010-14011 |
— | ||
|
78111
|
78111
78010-14012
Pedal, Accelerator
[04.1979 - 07.1981] RA40,TA40..LHD |
78010-14012 |
— | ||
|
78111
|
78111
78010-14020
Pedal, Accelerator
[08.1977 - 06.1978] RA40,TA40..LHD |
78010-14020 |
— | ||
|
78127
|
78127
78127-20010
Bush, Accelerator Pedal, No.2
[08.1977 - 07.1981] RA40,TA40..LHD |
78127-20010 |
— | ||
|
78130
|
78130
78015-14070
Bellcrank Assy, Accelerator
[08.1977 - 07.1981] RA40..LHD..GT |
78015-14070 |
— | ||
|
78146
|
78146
21943-88250 Support, Accelerator Torque RodACCELERATOR TORQUE ROD [08.1977 - 07.1981] RA40..GT |
21943-88250 |
US $11.07 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[08.1977 - 07.1981] RA40 |
78197-10010 |
from US $1.27 |
||
|
78310
|
78310
78310-14211
Cable Assy, Choke
[08.1977 - 08.1979] RA40..LHD..GT |
78310-14211 |
— | ||
|
78310
|
78310
78310-14221 Cable Assy, ChokeCHOKE [08.1979 - 04.1981] RA40,TA40..LHD..GT..GEN |
78310-14221 |
US $36.84 |
||
|
78310
|
78310
78310-14222
Cable Assy, Choke
[04.1981 - 07.1981] RA40,TA40..LHD..GT..GEN |
78310-14222 |
— | ||
|
78310A
|
78310A
90480-13055 Grommet, Dash Panel, No.3[08.1977 - 07.1981] TA40..B;RA40..GT,ST;TA40..RHD..(GT,ST);TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..G EN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..(GT,ST)..GEN |
90480-13055 |
US $1.40 |
||
|
78310C
|
78310C
78312-12010
Clip (For Choke Cable)
[04.1981 - 07.1981] TA40..B;TA40..RHD;RA40..GT,ST;TA40..LHD..4F..GEN;TA40..LHD..GT..GEN;TA40..LHD..(GT ,ST)..EUG;TA40..CP..LHD..5F..ST..GEN |
78312-12010 |
— | ||
|
78311
|
78311
89482-20010
Knob Sub-Assy, Choke Rod
[08.1977 - 08.1979] RA40..GT; TA40..GT,ST |
89482-20010 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.88 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9610000400
|
9610000400
96100-00400
New Genuine Part
|
96100-00400 |
— | ||
