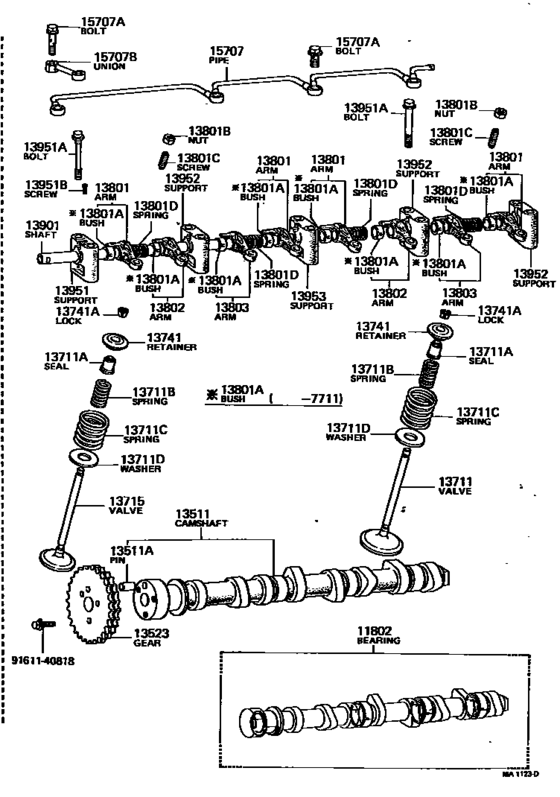

Camshaft & Valve ([08.1977 - ] (7708- )18R,18RC) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- RA40
- grade
- ST
- body
- LB
- ENGINE
- 18R
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-33010 Bearing Set, Camshaft[08.1977 - 07.1981] 18R,18RC..RA40 STD,STD |
11802-33010 |
US $74.26 |
||
|
11802
|
11802
11804-33010
Bearing Set, Camshaft
[08.1977 - 07.1981] 18R,18RC..RA40 U/S 0.25,U/S 0.125 |
11804-33010 |
— | ||
|
11802
|
11802
11805-33010 Bearing Set, Camshaft[08.1977 - 07.1981] 18R,18RC..RA40 U/S 0.50,U/S 0.250 |
11805-33010 |
US $90.27 |
||
|
13523
|
13523
13523-33010
Gear Or Sprocket, Camshaft Timing
[08.1977 - 07.1981] 18R,18RC..RA40 N=24 |
13523-33010 |
— | ||
|
13711
|
13711
13711-36021 Valve, Intake[08.1977 - 07.1981] 18R,18RC..RA40 |
13711-36021 |
US $33.20 |
||
|
13711A
|
13711A
90913-02016 Seal Or Ring, O(For Valve Stem Oil)[08.1977 - 07.1980] 18R,18RC..RA40 |
90913-02016 |
US $7.28 |
||
| replacement | |||||
|
13711A
|
13711A
90913-02054 Seal Or Ring, O(For Valve Stem Oil)[08.1977 - 07.1980] 18R,18RC..RA40 |
90913-02054 |
US $7.16 |
||
|
13711A
|
13711A
90913-02054 Seal Or Ring, O(For Valve Stem Oil)[07.1980 - 07.1981] 18R,18RC..RA40 |
90913-02054 |
US $7.16 |
||
|
13711B
|
13711B
90501-26005
Spring, Compression(For Inner)
[08.1977 - 01.1979] 18R,18RC..RA40 WD=2.6,CW=7.75 |
90501-26005 |
— | ||
|
13711B
|
13711B
90501-26398 Spring, Compression(For Inner)[01.1979 - 07.1981] 18R,18RC..RA40 WD=2.6,CW=7.7 |
90501-26398 |
US $3.06 |
||
|
13711C
|
13711C
90501-45009
Spring, Compression(For Outer)
[08.1977 - 01.1979] 18R,18RC..RA40 WD=4.5,CW=5.55 |
90501-45009 |
— | ||
|
13711C
|
13711C
90501-45012 Spring, Compression(For Outer)[04.1979 - 07.1981] 18R,18RC..RA40 WD=4.5,CW=6.5 |
90501-45012 |
US $9.32 |
||
|
13711C
|
13711C
90501-45459 Spring, Compression(For Outer)COMPRESSION(FOR OUTER) [01.1979 - 04.1979] 18R,18RC..RA40 WD=4.5,CW=5.55 |
90501-45459 |
US $9.90 |
||
| replacement | |||||
|
13711C
|
13711C
90501-45012 Spring, Compression(For Outer)[01.1979 - 04.1979] 18R,18RC..RA40 WD=4.5,CW=5.55 |
90501-45012 |
US $9.32 |
||
|
13711D
|
13711D
90201-13308 Washer, Plate(For Valve Spring Seat)[08.1977 - 07.1981] 18R,18RC..RA40 |
90201-13308 |
US $2.33 |
||
| replacement | |||||
|
13711D
|
13711D
90201-13366 Washer, Plate(For Valve Spring Seat)[08.1977 - 07.1981] 18R,18RC..RA40 |
90201-13366 |
US $2.33 |
||
|
13715
|
13715
13715-34012
Valve, Exhaust
[08.1977 - 07.1980] 18R,18RC..RA40 |
13715-34012 |
— | ||
|
13715
|
13715
13715-34013
Valve, Exhaust
[07.1980 - 07.1981] 18R,18RC..RA40 |
13715-34013 |
— | ||
|
13741
|
13741
13741-33010 Retainer, Valve Spring[08.1977 - 07.1981] 18R,18RC..RA40 |
13741-33010 |
US $4.08 |
||
|
13741A
|
13741A
90913-03005 Lock, Valve Spring Retainer[08.1977 - 07.1981] 18R,18RC..RA40; 2T,2TB..TA40 |
90913-03005 |
from US $3.84 |
||
|
13801
|
13801
13801-33013
Arm Sub-Assy, Valve Rocker, No.1
[08.1977 - 11.1977] 18R,18RC..RA40 |
13801-33013 |
— | ||
| replacement | |||||
|
13801
|
13801
13801-33012 Arm Sub-Assy, Valve Rocker, No.1VALVE ROCKER, NO.1 [08.1977 - 11.1977] 18R,18RC..RA40 |
13801-33012 |
US $29.85 |
||
|
13801
|
13801
13811-33014 Arm Sub-Assy, Valve Rocker, No.1VALVE ROCKER, NO.1 [11.1977 - 07.1981] 18R,18RC..RA40 |
13811-33014 |
US $46.30 |
||
| replacement | |||||
|
13801
|
13801
13811-33020
Arm Sub-Assy, Valve Rocker, No.1
[11.1977 - 07.1981] 18R,18RC..RA40 |
13811-33020 |
— | ||
|
13801A
|
13801A
90999-73001
Bush, Bimetal Formed(For Rocker Arm)
[08.1977 - 11.1977] 18R,18RC..RA40 |
90999-73001 |
— | ||
|
13801B
|
13801B
90170-10116 Nut, Hexagon(For Valve Adjusting)[08.1977 - 07.1981] 18R,18RC..RA40 |
90170-10116 |
US $3.06 |
||
|
13801C
|
13801C
90913-05011
Screw, Valve Adjusting
[08.1977 - 07.1981] 18R,18RC..RA40 |
90913-05011 |
— | ||
|
13801D
|
13801D
90501-16163
Spring, Compression(For Rocker Arm)
[08.1977 - 07.1981] 18R,18RC..RA40 |
90501-16163 |
— | ||
|
13802
|
13802
13802-33013
Arm Sub-Assy, Valve Rocker, No.2
[08.1977 - 11.1977] 18R,18RC..RA40 |
13802-33013 |
— | ||
| replacement | |||||
|
13802
|
13802
13802-33012 Arm Sub-Assy, Valve Rocker, No.2VALVE ROCKER, NO.2 [08.1977 - 11.1977] 18R,18RC..RA40 |
13802-33012 |
US $29.85 |
||
|
13802
|
13802
13812-33014 Arm Sub-Assy, Valve Rocker, No.2VALVE ROCKER, NO.2 [11.1977 - 07.1981] 18R,18RC..RA40 |
13812-33014 |
US $46.30 |
||
| replacement | |||||
|
13802
|
13802
13812-33020
Arm Sub-Assy, Valve Rocker, No.2
[11.1977 - 07.1981] 18R,18RC..RA40 |
13812-33020 |
— | ||
|
13803
|
13803
13803-33013
Arm Sub-Assy, Valve Rocker, No.3
[08.1977 - 11.1977] 18R,18RC..RA40 |
13803-33013 |
— | ||
| replacement | |||||
|
13803
|
13803
13803-33012 Arm Sub-Assy, Valve Rocker, No.3VALVE ROCKER, NO.3 [08.1977 - 11.1977] 18R,18RC..RA40 |
13803-33012 |
US $29.85 |
||
|
13803
|
13803
13813-33014 Arm Sub-Assy, Valve Rocker, No.3VALVE ROCKER, NO.3 [11.1977 - 07.1981] 18R,18RC..RA40 |
13813-33014 |
US $33.92 |
||
| replacement | |||||
|
13803
|
13803
13813-33020
Arm Sub-Assy, Valve Rocker, No.3
[11.1977 - 07.1981] 18R,18RC..RA40 |
13813-33020 |
— | ||
|
13901
|
13901
13901-33010
Shaft Sub-Assy, Valve Rocker, No.1
[08.1977 - 11.1977] 18R,18RC..RA40 |
13901-33010 |
— | ||
|
13901
|
13901
13901-33011 Shaft Sub-Assy, Valve Rocker, No.1[11.1977 - 07.1981] 18R,18RC..RA40 |
13901-33011 |
US $54.45 |
||
|
13951
|
13951
13951-36010 Support, Valve Rocker, No.1[08.1977 - 07.1981] 18R,18RC..RA40 |
13951-36010 |
US $22.86 |
||
|
13951A
|
13951A
90105-08016 Bolt(For Rocker Support Set)[08.1977 - 07.1981] 18R,18RC..RA40 *8-1.25PX65-16 |
90105-08016 |
US $1.75 |
||
|
13951A
|
13951A
90910-01007
Bolt(For Rocker Support Set)
[08.1977 - 07.1981] 18R,18RC..RA40 *8-1.25PX75-16 |
90910-01007 |
— | ||
|
13951B
|
13951B
90151-40010 Screw Or Bolt(For Valve Rocker Shaft Lock)[08.1977 - 07.1981] 18R,18RC..RA40 |
90151-40010 |
US $2.18 |
||
|
13952
|
13952
13952-36010 Support, Valve Rocker, No.2[08.1977 - 07.1981] 18R,18RC..RA40 |
13952-36010 |
US $22.86 |
||
| replacement | |||||
|
13952
|
13952
13951-36010 Support, Valve Rocker, No.1[08.1977 - 07.1981] 18R,18RC..RA40 |
13951-36010 |
US $22.86 |
||
|
13953
|
13953
13953-36010
Support, Valve Rocker, No.3
[08.1977 - 07.1981] 18R,18RC..RA40 |
13953-36010 |
— | ||
|
15707
|
15707
15707-33010 Pipe Sub-Assy, Oil[08.1977 - 07.1981] 18R,18RC..RA40 |
15707-33010 |
US $50.38 |
||
|
15707A
|
15707A
90401-10050 Bolt, Union(For Oil Pipe)[08.1977 - 07.1981] 18R,18RC..RA40 L=37 |
90401-10050 |
US $4.95 |
||
|
15707A
|
15707A
90401-10051 Bolt, Union(For Oil Filter Cap)[08.1977 - 07.1981] 18R,18RC..RA40 L=19 |
90401-10051 |
US $4.22 |
||
|
15707B
|
15707B
90406-08008 Union(For Oil Pipe)[08.1977 - 07.1981] 18R,18RC..RA40 |
90406-08008 |
US $7.13 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
