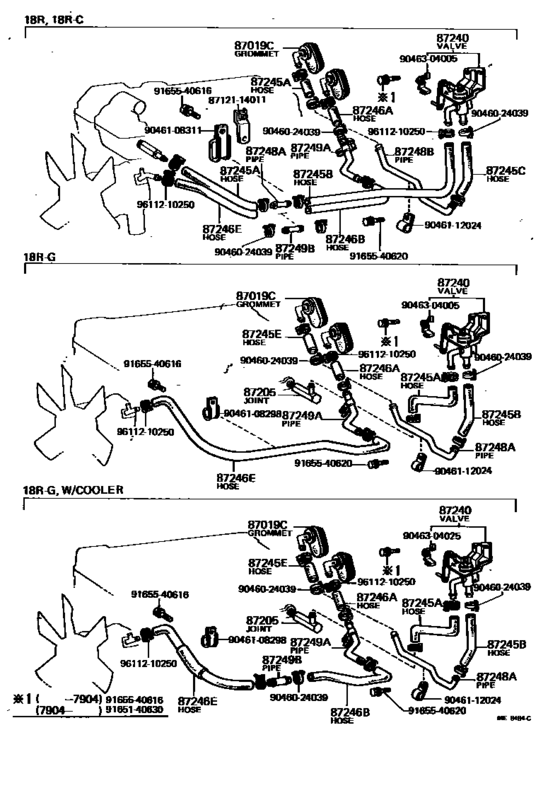

Heating & Air Conditioning - Water Piping ([08.1977 - ] (7708- )RA40..LHD) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- RA40
- grade
- ST
- body
- LB
- ENGINE
- 18R
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[08.1977 - 07.1981] RA40,TA40 |
90480-01015 |
— | ||
|
87240
|
87240
87240-14070
Valve Assy, Heater Water
[08.1977 - 04.1979] RA40,TA40 |
87240-14070 |
— | ||
|
87240
|
87240
87240-20240
Valve Assy, Heater Water
[04.1979 - 07.1981] RA40,TA40 |
87240-20240 |
— | ||
|
87245A
|
87245A
87245-14570 Hose, Heater Water, Inlet AHEATER WATER, INLET A [08.1977 - 05.1978] RA40..(ST,XT)..(EUR,GEN) |
87245-14570 |
US $17.76 |
||
| replacement | |||||
|
87245A
|
87245A
87245-14690
Hose, Heater Water, Inlet A
[08.1977 - 05.1978] RA40..(ST,XT)..(EUR,GEN) |
87245-14690 |
— | ||
|
87245A
|
87245A
87245-14690
Hose, Heater Water, Inlet A
[08.1979 - 07.1981] RA40..LT,ST,XT |
87245-14690 |
— | ||
|
87245B
|
87245B
99552-30520
Hose, Water(For Lpg Preheater)
[08.1979 - 07.1981] RA40..LT,ST,XT *H,L=520 |
99552-30520 |
— | ||
| replacement | |||||
|
87245B
|
87245B
99556-31000 Hose, Heater Water, Inlet B[08.1979 - 07.1981] RA40..LT,ST,XT *H,L=520 |
99556-31000 |
from US $22.19 |
||
|
87245B
|
87245B
99552-30540
Hose, Heater Water, Inlet B
[08.1977 - 08.1979] RA40..LT,ST,XT L=540 |
99552-30540 |
— | ||
| replacement | |||||
|
87245B
|
87245B
99556-31000 Hose, Heater Water, Inlet B[08.1977 - 08.1979] RA40..LT,ST,XT L=540 |
99556-31000 |
from US $22.19 |
||
|
87245C
|
87245C
99552-30240
Hose, Heater Water, Inlet B
[08.1977 - 08.1979] RA40..LHD..(ST,XT) L=240 |
99552-30240 |
— | ||
| replacement | |||||
|
87245C
|
87245C
99556-30300 Hose, Heater Water, Inlet A[08.1977 - 08.1979] RA40..LHD..(ST,XT) L=240 |
99556-30300 |
from US $10.24 |
||
|
87245C
|
87245C
99552-30300
Hose, Heater Water, Inlet
[08.1979 - 07.1981] RA40..LHD..(ST,XT) *H,L=230 |
99552-30300 |
— | ||
| replacement | |||||
|
87245C
|
87245C
99556-30300 Hose, Heater Water, Inlet A[08.1979 - 07.1981] RA40..LHD..(ST,XT) *H,L=230 |
99556-30300 |
from US $10.24 |
||
|
87245E
|
87245E
99552-30055
Hose, Heater Water, Inlet E
[08.1977 - 07.1981] RA40,TA40..LHD L=55 |
99552-30055 |
— | ||
| replacement | |||||
|
87245E
|
87245E
99556-30100 Hose, Water Inlet[08.1977 - 07.1981] RA40,TA40..LHD L=55 |
99556-30100 |
from US $3.20 |
||
|
87246A
|
87246A
99552-30055
Hose, Heater Water, Inlet E
[08.1977 - 07.1981] RA40,TA40..LHD L=55 |
99552-30055 |
— | ||
| replacement | |||||
|
87246A
|
87246A
99556-30100 Hose, Water Inlet[08.1977 - 07.1981] RA40,TA40..LHD L=55 |
99556-30100 |
from US $3.20 |
||
|
87246B
|
87246B
99552-30480
Hose, Heater Water, Outlet B
[08.1979 - 07.1981] RA40..LHD..(ST,XT) L=480 |
99552-30480 |
— | ||
| replacement | |||||
|
87246B
|
87246B
99556-30500 Hose, Heater Water, Inlet A[08.1979 - 07.1981] RA40..LHD..(ST,XT) L=480 |
99556-30500 |
US $16.57 |
||
|
87246B
|
87246B
99552-30500
Hose, Water(For Lpg Preheater)
[08.1977 - 08.1979] RA40..LHD..(ST,XT) L=500 |
99552-30500 |
— | ||
| replacement | |||||
|
87246B
|
87246B
99556-30500 Hose, Heater Water, Inlet A[08.1977 - 08.1979] RA40..LHD..(ST,XT) L=500 |
99556-30500 |
US $16.57 |
||
|
87246E
|
87246E
87245-14570 Hose, Heater Water, Inlet AHEATER WATER, INLET A [08.1977 - 05.1978] RA40..(ST,XT)..(EUR,GEN) |
87245-14570 |
US $17.76 |
||
| replacement | |||||
|
87246E
|
87246E
87245-14690
Hose, Heater Water, Inlet A
[08.1977 - 05.1978] RA40..(ST,XT)..(EUR,GEN) |
87245-14690 |
— | ||
|
87246E
|
87246E
87245-14690
Hose, Heater Water, Inlet A
[08.1979 - 07.1981] RA40..LHD..(ST,XT) |
87245-14690 |
— | ||
|
87248A
|
87248A
87248-14090
Pipe, Heater Water Inlet, A
[08.1977 - 07.1981] RA40..LT,ST,XT |
87248-14090 |
— | ||
|
87248B
|
87248B
87248-14060
Pipe, Heater Water Inlet, A
[08.1977 - 08.1979] RA40..LHD..(ST,XT) |
87248-14060 |
— | ||
|
87248B
|
87248B
87248-14140
Pipe, Heater Water Inlet, A
[08.1979 - 07.1981] RA40..LHD..(ST,XT) |
87248-14140 |
— | ||
|
87249A
|
87249A
87248-14070
Pipe, Heater Water Outlet, A
[08.1977 - 07.1981] RA40..LHD..(ST,XT) |
87248-14070 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87248-14040
Pipe, Heater Water Outlet, A
[08.1977 - 07.1981] RA40..LHD..(ST,XT) |
87248-14040 |
— | ||
|
87249B
|
87249B
87248-14090
Pipe, Heater Water Inlet, A
[08.1977 - 07.1981] RA40..LHD..(ST,XT) |
87248-14090 |
— | ||
|
8712114011
|
8712114011
87121-14011
Bracket, Heater, Front Rh
|
87121-14011 |
— | ||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9046108298
|
9046108298
90461-08298
New Genuine Part
|
90461-08298 |
— | ||
|
9046108311
|
9046108311
90461-08311
New Genuine Part
|
90461-08311 |
— | ||
|
9046112024
|
9046112024
90461-12024
New Genuine Part
|
90461-12024 |
— | ||
|
9046304005
|
9046304005
90463-04005
Clamp, Heater
|
90463-04005 |
— | ||
| replacement | |||||
|
9046304005
|
9046304005
87124-28020
Clamp, Heater
|
87124-28020 |
— | ||
|
9046304025
|
9046304025
90463-04025
New Genuine Part
|
90463-04025 |
— | ||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
