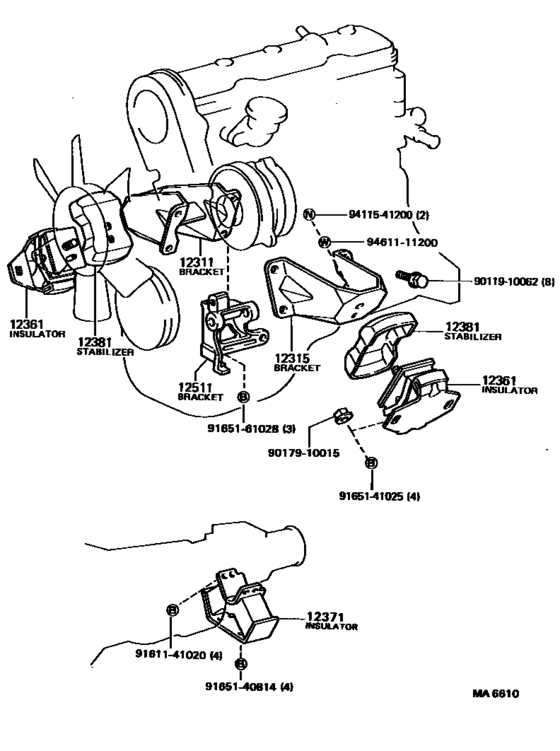

Mounting ([08.1983 - 08.1984] (8308-8408)2SC) Diagram Toyota CELICA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- SA63
- grade
- ST
- body
- CP
- ENGINE
- 2SC
- TRANSMISSION
- ATM
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-63010 Bracket, Engine Mounting, Front No.1 Rh[08.1983 - 08.1984] 2SC..SA63 |
12311-63010 |
US $43.83 |
||
|
12315
|
12315
12315-63010 Bracket, Engine Mounting, Front No.1 Lh[08.1983 - 08.1984] 2SC..SA63 |
12315-63010 |
US $39.02 |
||
|
12361
|
12361
12361-63010
Insulator, Engine Mounting, Front
[08.1983 - 08.1984] 2SC..SA63 TOYO |
12361-63010 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-63020
Insulator, Engine Mounting, Front
[08.1983 - 08.1984] 2SC..SA63 TOYO |
12361-63020 |
— | ||
|
12361
|
12361
12361-63020
Insulator, Engine Mounting, Front
[08.1983 - 08.1984] 2SC..SA63 MARUYASU |
12361-63020 |
— | ||
|
12371
|
12371
12371-34030 Insulator, Engine Mounting, Rear No.1[08.1981 - 07.1985] 2SC..SA63; 21R#,22REC..RA60,61,65; 2T..TA60..3FC |
12371-34030 |
from US $61.59 |
||
|
12381
|
12381
12381-63010 Stabilizer, Engine Mounting[08.1983 - 08.1984] 2SC..SA63 TOYO |
12381-63010 |
US $32.03 |
||
| replacement | |||||
|
12381
|
12381
12381-63020 Stabilizer, Engine Mounting[08.1983 - 08.1984] 2SC..SA63 TOYO |
12381-63020 |
US $24.32 |
||
|
12381
|
12381
12381-63020 Stabilizer, Engine Mounting[08.1983 - 08.1984] 2SC..SA63 MARUYASU |
12381-63020 |
US $24.32 |
||
|
12511
|
12511
12511-63010 Bracket, Alternator, No.1[08.1983 - 08.1984] 2SC..SA63 |
12511-63010 |
US $71.49 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.88 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165161028
|
9165161028
91651-61028 New Genuine Part |
91651-61028 |
US $1.46 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.56 |
||
