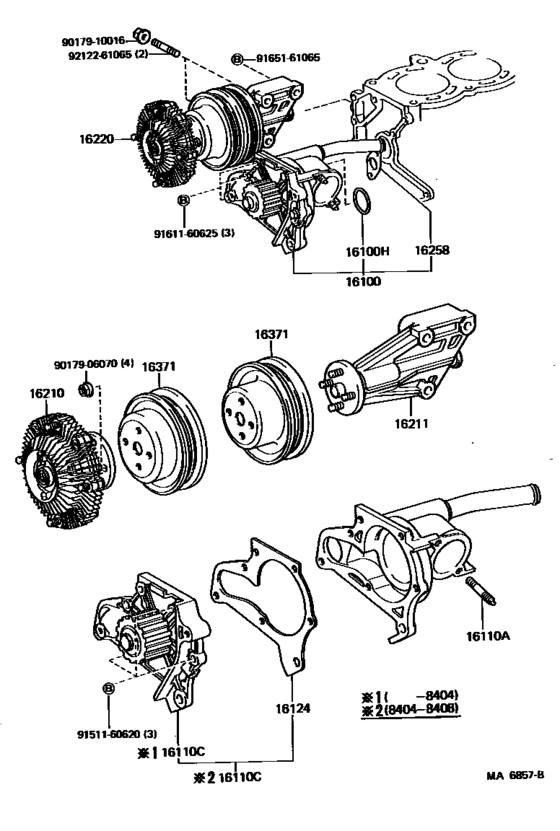

Water Pump ([08.1983 - 08.1984] (8308-8408)2SC) Diagram Toyota CELICA
- Year
- 1983 - 1984
- Sales region
- Europe
- Frame
- SA63
- grade
- ST
- body
- CP
- ENGINE
- 2SC
- TRANSMISSION
- ATM
- From
- 08.1983
- To
- 08.1984
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-69075
Pump Assy, Engine Water
[08.1983 - 08.1984] 2SC..SA63 |
16100-69075 |
— | ||
| replacements | |||||
|
16100
|
16100
16100-69077
Pump Assy, Engine Water
[08.1983 - 08.1984] 2SC..SA63 |
16100-69077 |
— | ||
|
16100
|
16100
90179-06045 New Genuine Part[08.1983 - 08.1984] 2SC..SA63 |
90179-06045 |
from US $1.92 |
||
|
16100H
|
16100H
96711-24037 Ring, O(For Water Pump)[08.1983 - 08.1984] 2SC..SA63 |
96711-24037 |
US $3.84 |
||
|
16110A
|
16110A
16193-63010 Bolt, Stud(For Water Outlet Setting)[08.1983 - 08.1984] 2SC..SA63 |
16193-63010 |
US $5.60 |
||
|
16110C
|
16110C
16110-63010
Pump Assy, Water, W/o Cover
[08.1983 - 04.1984] 2SC..SA63 |
16110-63010 |
— | ||
| replacements | |||||
|
16110C
|
16110C
16110-69037
Pump Assy, Water, W/o Coupling
[08.1983 - 04.1984] 2SC..SA63 |
16110-69037 |
— | ||
|
16110C
|
16110C
93220-16020 SCREW[08.1983 - 04.1984] 2SC..SA63 |
93220-16020 |
US $4.16 |
||
|
16110C
|
16110C
16110-69035
Pump Assy, Water, W/o Coupling
[04.1984 - 08.1984] 2SC..SA63 |
16110-69035 |
— | ||
| replacements | |||||
|
16110C
|
16110C
16110-69037
Pump Assy, Water, W/o Coupling
[04.1984 - 08.1984] 2SC..SA63 |
16110-69037 |
— | ||
|
16110C
|
16110C
93220-16020 SCREW[04.1984 - 08.1984] 2SC..SA63 |
93220-16020 |
US $4.16 |
||
|
16124
|
16124
16124-63010 Gasket, Water Pump Cover[08.1983 - 08.1984] 2SC..SA63 |
16124-63010 |
US $4.66 |
||
|
16210
|
16210
16210-74010
Coupling Assy, Fluid
[08.1983 - 08.1984] 2SC..SA63 |
16210-74010 |
— | ||
|
16211
|
16211
16211-74010
Bracket, Fluid Coupling
[08.1983 - 08.1984] 2SC..SA63 |
16211-74010 |
— | ||
|
16220
|
16220
16220-74010 Coupling Assy, Fluid, W/bracketFLUID, W/BRACKET [08.1983 - 08.1984] 2SC..SA63 |
16220-74010 |
US $317.41 |
||
|
16258
|
16258
16258-15011 Gasket(For Heater Return)[08.1983 - 07.1985] 4AGE..AA63; 2SC..SA63 |
16258-15011 |
US $8 |
||
|
16371
|
16371
16173-74010
Pulley, Fan
[08.1983 - 08.1984] 2SC..SA63 WATER PUMP SIDE |
16173-74010 |
— | ||
|
16371
|
16371
16173-74011
Pulley, Fan
[08.1983 - 08.1984] 2SC..SA63 COUPLING SIDE |
16173-74011 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9165161065
|
9165161065
91651-61065 New Genuine Part |
91651-61065 |
US $6.26 |
||
|
9212261065
|
9212261065
92122-61065 New Genuine Part |
92122-61065 |
US $4.08 |
||
| replacement | |||||
|
9212261065
|
9212261065
92122-81065 New Genuine Part |
92122-81065 |
US $3.35 |
||
