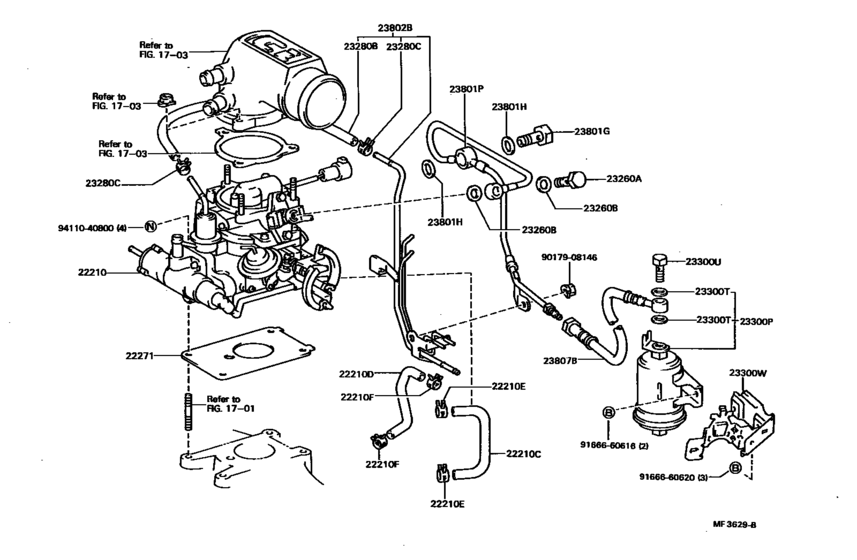

Fuel Injection System ([08.1987 - 05.1988] (8708-8805)1SILU) Diagram Toyota CELICA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- ST160
- grade
- SX
- body
- LB
- ENGINE
- 1SILU
- TRANSMISSION
- MTM
- From
- 08.1987
- To
- 05.1988
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22200-63021 Body Assy, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22200-63021 |
US $971.15 |
||
| replacement | |||||
|
22210
|
22210
22200-63022 Body Assy, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22200-63022 |
US $963.87 |
||
|
22210C
|
22210C
16264-63030 Hose, Water By-Pass, No.1[08.1987 - 05.1988] 1SILU..ST160 |
16264-63030 |
US $15.14 |
||
|
22210D
|
22210D
16267-63020 Hose, Water By-Pass, No.2[08.1987 - 05.1988] 1SILU..ST160 |
16267-63020 |
US $15.14 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1987 - 08.1988] 1SILU,3SFE,3SG#,4SFI..ST16# |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1987 - 08.1988] 1SILU,3SFE,3SG#,4SFI..ST16# |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1987 - 08.1988] 1SILU,3SFE,3SGELU..ST160,162 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1987 - 08.1988] 1SILU,3SFE,3SGELU..ST160,162 |
96135-51300 |
from US $1.92 |
||
|
22271
|
22271
22271-63010 Gasket, Throttle Body[08.1987 - 05.1988] 1SILU..ST160 |
22271-63010 |
US $7.72 |
||
| replacement | |||||
|
22271
|
22271
22271-63011 Gasket, Throttle Body[08.1987 - 05.1988] 1SILU..ST160 |
22271-63011 |
US $8.01 |
||
|
23260A
|
23260A
90401-08003 Bolt, Union[08.1987 - 05.1988] 1SILU..ST160 |
90401-08003 |
US $2.24 |
||
|
23260B
|
23260B
90430-08009
Gasket
[08.1987 - 05.1988] 1SILU..ST160 |
90430-08009 |
— | ||
| replacement | |||||
|
23260B
|
23260B
90430-08014 Gasket(For Oil Filter Outlet Pipe)[08.1987 - 05.1988] 1SILU..ST160 |
90430-08014 |
from US $0.86 |
||
|
23280B
|
23280B
95333-06030
Hose, Fuel
[08.1987 - 05.1988] 1SILU..ST160 ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
23280B
|
23280B
95338-06030 HOSE, FUEL[08.1987 - 05.1988] 1SILU..ST160 ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $9.28 |
||
|
23280C
|
23280C
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1987 - 02.1988] 1SILU,3SG#..ST16# |
90467-11009 |
— | ||
| replacement | |||||
|
23280C
|
23280C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.1987 - 02.1988] 1SILU,3SG#..ST16# |
96135-51100 |
from US $1.93 |
||
|
23280C
|
23280C
90467-11049 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.1988 - 08.1989] 1SILU,3SG#..ST160,162,165 |
90467-11049 |
US $1.89 |
||
| replacement | |||||
|
23280C
|
23280C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[02.1988 - 08.1989] 1SILU,3SG#..ST160,162,165 |
96135-51100 |
from US $1.93 |
||
|
23300P
|
23300P
23300-79095 Filter, Fuel(For Efi)[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
23300-79095 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79105 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
23300-79105 |
US $104.83 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
90430-12005 |
from US $0.76 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
90401-12097 |
from US $3.08 |
||
|
23300W
|
23300W
23264-74010 Bracket, Fuel Filter[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
23264-74010 |
US $19.95 |
||
|
23801G
|
23801G
90401-12018 Bolt, Union, No.1[08.1987 - 05.1988] 1SILU..ST160 |
90401-12018 |
US $7.13 |
||
| replacement | |||||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1987 - 05.1988] 1SILU..ST160 |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12013 Gasket(For Fuel Pipe)[08.1987 - 05.1988] 1SILU..ST160 |
90430-12013 |
US $3.20 |
||
|
23801P
|
23801P
23811-63020 Pipe Sub-Assy, Fuel, No.1[08.1987 - 05.1988] 1SILU..ST160 |
23811-63020 |
US $196.56 |
||
|
23802B
|
23802B
23802-63012 Pipe Sub-Assy, Fuel, No.2[08.1987 - 05.1988] 1SILU..ST160 |
23802-63012 |
US $59.11 |
||
|
23807B
|
23807B
23271-63060 Hose, Fuel Delivery Pipe[08.1987 - 05.1988] 1SILU..ST160 |
23271-63060 |
US $119.39 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9166660616
|
9166660616
91666-60616 New Genuine Part |
91666-60616 |
US $1.92 |
||
|
9166660620
|
9166660620
91666-60620 New Genuine Part |
91666-60620 |
US $1.60 |
||
| replacement | |||||
|
9166660620
|
9166660620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
