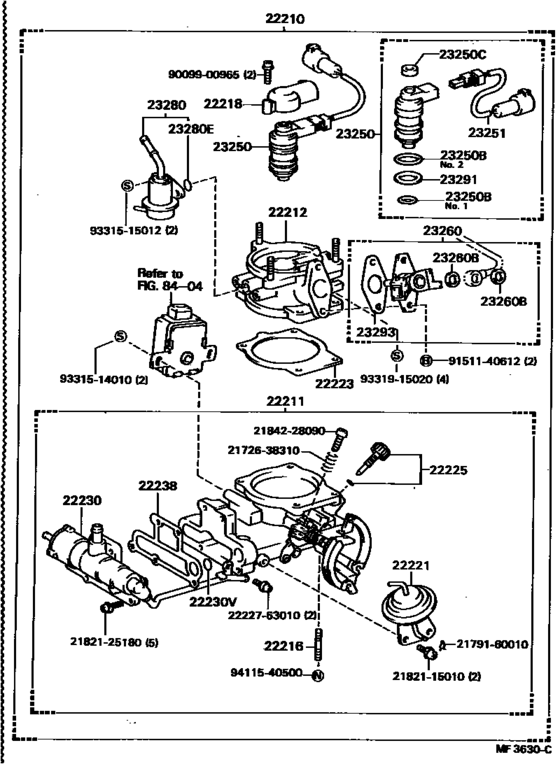

Fuel Injection System ([08.1987 - 05.1988] (8708-8805)1SILU) Diagram Toyota CELICA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- ST160
- grade
- SX
- body
- LB
- ENGINE
- 1SILU
- TRANSMISSION
- MTM
- From
- 08.1987
- To
- 05.1988
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22200-63021 Body Assy, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22200-63021 |
US $971.15 |
||
| replacement | |||||
|
22210
|
22210
22200-63022 Body Assy, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22200-63022 |
US $963.87 |
||
|
22211
|
22211
22211-63021 Body, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22211-63021 |
US $576.58 |
||
| replacement | |||||
|
22211
|
22211
22211-63022 Body, Throttle[08.1987 - 05.1988] 1SILU..ST160 |
22211-63022 |
US $570.75 |
||
|
22212
|
22212
22212-63012 Body, Upper(For Throttle Body)[08.1987 - 05.1988] 1SILU..ST160 |
22212-63012 |
US $106.29 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[08.1987 - 08.1989] 1SILU,3SFE..ST160,162 |
22216-74010 |
— | ||
|
22218
|
22218
22218-63011 Cover(For Throttle Body)[08.1987 - 05.1988] 1SILU..ST160 |
22218-63011 |
US $10.05 |
||
|
22221
|
22221
22221-63020 Positioner(For Throttle Body)[08.1987 - 05.1988] 1SILU..ST160 |
22221-63020 |
US $125.22 |
||
|
22223
|
22223
22223-63010 Gasket, Body Upper(For Throttle Body)[08.1987 - 05.1988] 1SILU..ST160 |
22223-63010 |
US $8.59 |
||
|
22225
|
22225
22225-63020 Screw, Idle Adjusting(For Throttle Body)[08.1987 - 08.1989] 1SILU,4SFI..ST160,163 |
22225-63020 |
US $9.17 |
||
|
22230
|
22230
22213-63010 Valve Assy, Auxiliary Air[08.1987 - 05.1988] 1SILU..ST160 |
22213-63010 |
US $282.46 |
||
|
22230V
|
22230V
96711-19009 Ring, O(For Oil Level Gage Guide)[08.1987 - 05.1988] 1SILU..ST160 |
96711-19009 |
from US $1.92 |
||
|
22238
|
22238
22224-63010 Gasket, Auxiliary Air Valve[08.1987 - 05.1988] 1SILU..ST160 |
22224-63010 |
US $5.24 |
||
|
23250
|
23250
23209-63011
Injector Assy, Fuel
[08.1987 - 05.1988] 1SILU..ST160 |
23209-63011 |
— | ||
|
23250B
|
23250B
90099-14082
Ring, O(For Fuel Injector)
[08.1987 - 08.1989] 1SILU,4SFI..ST160,163 ＮＯ．１ |
90099-14082 |
— | ||
|
23250B
|
23250B
90099-14083
Ring, O(For Fuel Injector)
[08.1987 - 08.1989] 1SILU,4SFI..ST160,163 ＮＯ．２ |
90099-14083 |
— | ||
|
23250C
|
23250C
90099-32124
Grommet(For Fuel Injector)
[08.1987 - 08.1989] 1SILU,4SFI..ST160,163 |
90099-32124 |
— | ||
|
23251
|
23251
23251-63010
Wire, Lead(For Fuel Injector)
[08.1987 - 05.1988] 1SILU..ST160 |
23251-63010 |
— | ||
|
23260
|
23260
23260-79055
Injector Assy, Cold Start Fuel
[08.1987 - 05.1988] 1SILU..ST160 |
23260-79055 |
— | ||
|
23260B
|
23260B
90430-08009
Gasket
[08.1987 - 05.1988] 1SILU..ST160 |
90430-08009 |
— | ||
| replacement | |||||
|
23260B
|
23260B
90430-08014 Gasket(For Oil Filter Outlet Pipe)[08.1987 - 05.1988] 1SILU..ST160 |
90430-08014 |
from US $0.86 |
||
|
23280
|
23280
23280-63010 Regulator Assy, Fuel Pressure[08.1987 - 05.1988] 1SILU..ST160 |
23280-63010 |
US $132.50 |
||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1987 - 08.1989] 1SILU,4SFI..ST160,163 |
90301-07001 |
from US $2.93 |
||
|
23291
|
23291
90099-02215
Insulator, Injector Vibration
[08.1987 - 05.1988] 1SILU..ST160 |
90099-02215 |
— | ||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1987 - 07.1989] 1SILU,3SFE,3SGELU..ST160,162 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1987 - 07.1989] 1SILU,3SFE,3SGELU..ST160,162 |
23293-42010 |
US $5.60 |
||
|
2172638310
|
2172638310
21726-38310 Spring, 1St Idle Adjusting |
21726-38310 |
US $4.95 |
||
|
2179160010
|
2179160010
21791-60010
Ring, Snap, No.1(For Carburetor Link)
|
21791-60010 |
— | ||
| replacement | |||||
|
2179160010
|
2179160010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
from US $1.76 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2184228090
|
2184228090
21842-28090 Screw, Adjusting |
21842-28090 |
US $4.08 |
||
|
2222763010
|
2222763010
22227-63010 New Genuine Part |
22227-63010 |
US $1.02 |
||
|
9009900965
|
9009900965
90099-00965
New Genuine Part
|
90099-00965 |
— | ||
|
9151140612
|
9151140612
91511-40612 New Genuine Part |
91511-40612 |
US $2.91 |
||
| replacement | |||||
|
9151140612
|
9151140612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $2.56 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9331915020
|
9331915020
93319-15020 SCREW |
93319-15020 |
from US $1.89 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
