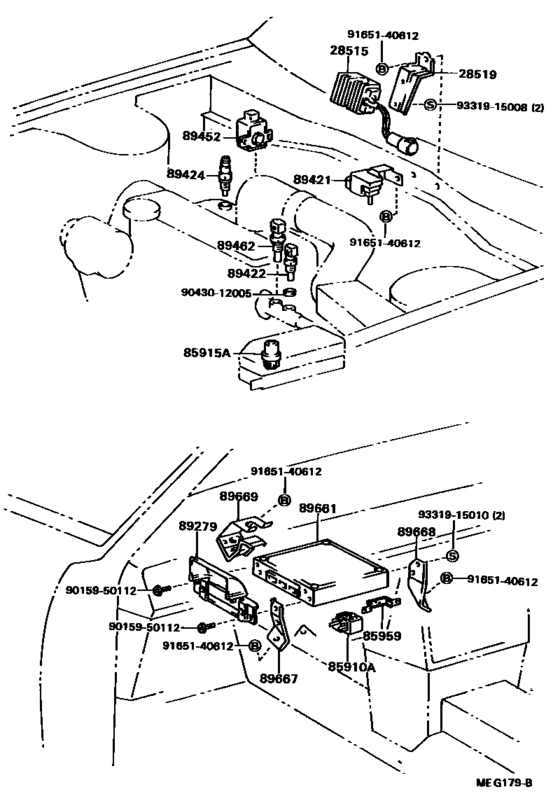

Electronic Fuel Injection System ([08.1985 - ] (8508- )ST160) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST160
- grade
- ST
- body
- LB
- ENGINE
- 1SILU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-63030 Resistor, Solenoid[08.1985 - 08.1987] 1SILU..ST160 |
28515-63030 |
US $101.92 |
||
|
28519
|
28519
28519-20010
Bracket, Solenoid Resistor
[08.1985 - 08.1987] 1SILU..ST160 |
28519-20010 |
— | ||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1985 - 08.1987] AT160,ST16# |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[08.1985 - 08.1987] AT160,ST16# |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [08.1985 - 08.1987] AT160,ST16# |
909870200483 |
US $53.75 |
||
|
85959
|
85959
85959-20040 Holder, Relay[08.1985 - 08.1987] AT160,ST160,162 |
85959-20040 |
US $8.59 |
||
|
89279
|
89279
89279-20020 Cover, Engine Control Computer[08.1985 - 08.1987] ST160 |
89279-20020 |
US $14.56 |
||
|
89421
|
89421
89421-20050
Sensor Assy, Vacuum (For E.f.i.)
[08.1985 - 08.1987] ST160 |
89421-20050 |
— | ||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1985 - 08.1987] AT160,ST16# |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1985 - 08.1987] AT160,ST16# |
89422-12010 |
from US $61.10 |
||
|
89424
|
89424
89424-28010
Sensor, Inlet Air Temperature (For E.f.i.)
[08.1985 - 08.1987] AT160,ST160,165 |
89424-28010 |
— | ||
|
89452
|
89452
89452-20030 Sensor, Throttle Position (For E.f.i.)[08.1985 - 08.1987] ST160 |
89452-20030 |
US $164.53 |
||
|
89462
|
89462
89462-40010
Switch, Start Injector Time
[08.1985 - 08.1987] ST16# |
89462-40010 |
— | ||
|
89661
|
89661
89661-20100 Computer, Engine Control[08.1985 - 07.1986] ST160..ST,SX TEN; ST160..SV W/PS,TEN |
89661-20100 |
US $1,126.94 |
||
| replacement | |||||
|
89661
|
89661
89661-20H00 Computer, Engine Control[08.1985 - 07.1986] ST160..ST,SX TEN; ST160..SV W/PS,TEN |
89661-20H00 |
US $748.38 |
||
|
89661
|
89661
89661-20101 Computer, Engine Control[03.1987 - 08.1987] ST160 TEN |
89661-20101 |
US $1,126.94 |
||
| replacement | |||||
|
89661
|
89661
89661-20H00 Computer, Engine Control[03.1987 - 08.1987] ST160 TEN |
89661-20H00 |
US $748.38 |
||
|
89661
|
89661
89661-20230 Computer, Engine Control[08.1985 - 07.1986] ST160..ST,SX DENSO; ST160..SV W/PS,DENSO |
89661-20230 |
US $1,126.94 |
||
|
89667
|
89667
89667-20040 Bracket, Engine Control Computer[08.1985 - 08.1987] AT160,ST160 |
89667-20040 |
US $5.39 |
||
|
89668
|
89668
89668-20040
Bracket, Engine Control Computer, No.2
[08.1985 - 08.1987] AT160,ST160,162 |
89668-20040 |
— | ||
|
89669
|
89669
89669-20030 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [08.1985 - 08.1987] AT160,ST160,162 |
89669-20030 |
US $11.79 |
||
|
9015950112
|
9015950112
90159-50112
New Genuine Part
|
90159-50112 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
