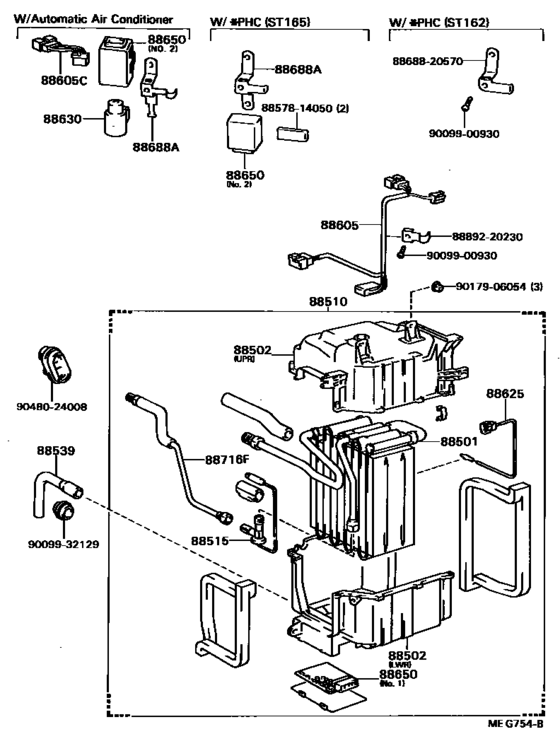

Heating & Air Conditioning - Cooler Unit ([08.1985 - ] (8508- )) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-20200
Evaporator Sub-Assy, Cooler, No.1
[08.1985 - 01.1986] AT160,ST16# |
88501-20200 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-20201
Evaporator Sub-Assy, Cooler, No.1
[08.1985 - 01.1986] AT160,ST16# |
88501-20201 |
— | ||
|
88501
|
88501
88501-20201
Evaporator Sub-Assy, Cooler, No.1
[01.1986 - 08.1987] AT160,ST160,162 |
88501-20201 |
— | ||
|
88502
|
88502
88502-20090
Case Sub-Assy, Cooling Unit
[08.1985 - 08.1987] AT160,ST16# UPR |
88502-20090 |
— | ||
|
88502
|
88502
88502-20100
Case Sub-Assy, Cooling Unit
[08.1985 - 08.1987] AT160,ST16# LWR |
88502-20100 |
— | ||
|
88510
|
88510
88510-20470
Unit Assy, Cooler
[08.1985 - 08.1987] ST16# |
88510-20470 |
— | ||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[08.1985 - 08.1987] AT160,ST16# |
88515-16031 |
US $109.52 |
||
|
88539
|
88539
88539-20130
Hose, Cooler Unit Drain, No.1
[08.1985 - 08.1987] AT160,ST16# |
88539-20130 |
— | ||
| replacement | |||||
|
88539
|
88539
88539-22110
Hose, Cooler Unit Drain, No.1
[08.1985 - 08.1987] AT160,ST16# |
88539-22110 |
— | ||
|
88605
|
88605
88605-20600
Harness Sub-Assy, Cooler Wiring, No.1
[08.1985 - 08.1987] ST162 W/*PHC |
88605-20600 |
— | ||
| replacement | |||||
|
88605
|
88605
88605-20601
Harness Sub-Assy, Cooler Wiring, No.1
[08.1985 - 08.1987] ST162 W/*PHC |
88605-20601 |
— | ||
|
88605
|
88605
88605-20670
Harness Sub-Assy, Cooler Wiring, No.1
[08.1985 - 08.1987] ST160,162 |
88605-20670 |
— | ||
|
88605
|
88605
88605-20680
Harness Sub-Assy, Cooler Wiring, No.1
[08.1985 - 08.1987] ST160,162 W/*AAC |
88605-20680 |
— | ||
|
88605C
|
88605C
88605-20630
Harness Sub-Assy, Cooler Wiring, No.2
[08.1985 - 08.1987] ST162,165 |
88605-20630 |
— | ||
|
88625
|
88625
88625-12070 Thermistor, Cooler, No.1[08.1985 - 08.1987] AT160,ST16# |
88625-12070 |
US $7.69 |
||
|
88630
|
88630
88630-95702
Relay, Heater Radiator
[08.1985 - 08.1987] AT160,ST160,162 |
88630-95702 |
— | ||
|
88650
|
88650
88650-20260
Amplifier Assy, Cooler Stabilizer
[08.1985 - 08.1986] ST16# NO.1 |
88650-20260 |
— | ||
| replacement | |||||
|
88650
|
88650
88650-20261
Amplifier Assy, Cooler Stabilizer
[08.1985 - 08.1986] ST16# NO.1 |
88650-20261 |
— | ||
|
88650
|
88650
88650-20261
Amplifier Assy, Cooler Stabilizer
[08.1986 - 08.1987] ST16# NO.1 |
88650-20261 |
— | ||
|
88650
|
88650
88650-20320
Amplifier Assy, Cooler Stabilizer
[08.1985 - 08.1987] AT160,ST160,162 W/*AAC,NO.2 |
88650-20320 |
— | ||
|
88688A
|
88688A
88688-20670
Bracket, Cooler Stabilizer Amplifier
[08.1985 - 08.1987] AT160,ST160,162 W/*AAC |
88688-20670 |
— | ||
|
88716F
|
88716F
88716-2B040 Pipe, Cooler Refrigerant Liquid, F[08.1985 - 08.1987] AT160,ST16# |
88716-2B040 |
US $43.24 |
||
|
8857814050
|
8857814050
88578-14050
Packing, Cooler Stabilizer Amplifier
|
88578-14050 |
— | ||
|
8868820570
|
8868820570
88688-20570
Bracket, Cooler Diaphragm
|
88688-20570 |
— | ||
|
8889220230
|
8889220230
88892-20230
Bracket, Cooler Evaporator Mounting
|
88892-20230 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $5.39 |
||
