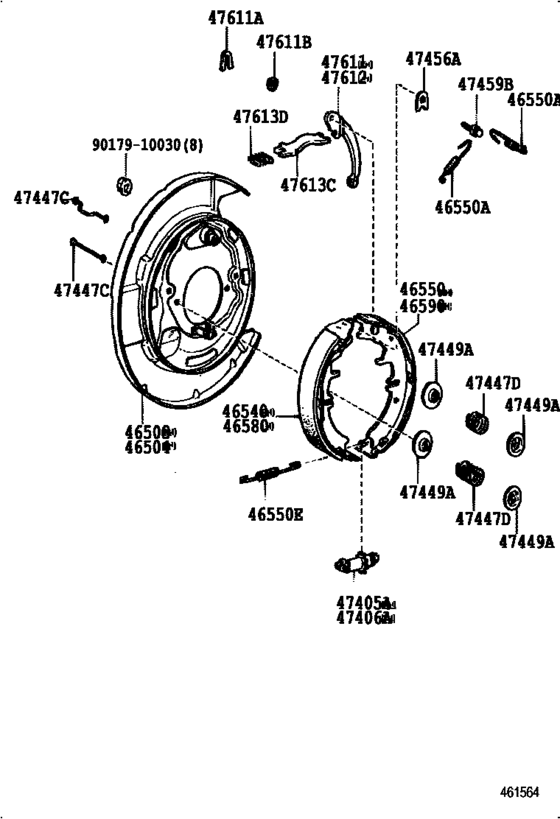

Parking Brake & Cable ([08.1985 - ] (8508- )AT160,ST162,165) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-20010 Plate Sub-Assy, Parking Brake, Rh[08.1985 - 08.1987] AT160,ST162 |
46503-20010 |
US $286.56 |
||
|
46504
|
46504
46504-20010 Plate Sub-Assy, Parking Brake, Lh[08.1985 - 08.1987] AT160,ST162 |
46504-20010 |
US $286.56 |
||
|
46540
|
46540
46540-20010 Shoe Assy, Parking Brake, Rh Or Center No.1[08.1985 - 08.1987] AT160,ST162,165 |
46540-20010 |
US $26.50 |
||
| replacement | |||||
|
46540
|
46540
46540-33010 Shoe Assy, Parking Brake, Rh Or Center No.1[08.1985 - 08.1987] AT160,ST162,165 |
46540-33010 |
US $30.40 |
||
|
46550
|
46550
46550-20010 Shoe Assy, Parking Brake, Rh Or Center No.2[08.1985 - 08.1987] AT160,ST162,165 |
46550-20010 |
US $26.50 |
||
| replacement | |||||
|
46550
|
46550
46550-33010 Shoe Assy, Parking Brake, Rh Or Center No.2[08.1985 - 08.1987] AT160,ST162,165 |
46550-33010 |
US $33.02 |
||
|
46550A
|
46550A
90507-16009 Spring, Tension, No.1(For Parking Brake Shoe Return)[08.1985 - 08.1987] AT160,ST162,165 |
90507-16009 |
from US $2.05 |
||
|
46550E
|
46550E
90506-12010 Spring, Tension, No.2(For Parking Brake Shoe Return)[08.1985 - 08.1987] AT160,ST162,165 |
90506-12010 |
from US $6.36 |
||
|
46580
|
46580
46540-20010 Shoe Assy, Parking Brake, Rh Or Center No.1[08.1985 - 08.1987] AT160,ST162,165 |
46540-20010 |
US $26.50 |
||
| replacement | |||||
|
46580
|
46580
46540-33010 Shoe Assy, Parking Brake, Rh Or Center No.1[08.1985 - 08.1987] AT160,ST162,165 |
46540-33010 |
US $30.40 |
||
|
46590
|
46590
46590-20010 Shoe Assy, Parking Brake, Lh No.2[08.1985 - 08.1987] AT160,ST162,165 |
46590-20010 |
US $26.50 |
||
| replacement | |||||
|
46590
|
46590
46590-33010 Shoe Assy, Parking Brake, Lh No.2[08.1985 - 08.1987] AT160,ST162,165 |
46590-33010 |
US $33.02 |
||
|
47405A
|
47405A
47405-30040 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[08.1985 - 08.1987] AT160,ST162,165 |
47405-30040 |
from US $21.28 |
||
|
47406A
|
47406A
47406-30040 Adjuster Sub-Assy, Parking Brake Shoe, Lh[08.1985 - 08.1987] AT160,ST162,165 |
47406-30040 |
from US $21.28 |
||
|
47447C
|
47447C
47447-20030 Pin, Shoe Hold Down Spring[08.1985 - 08.1987] AT160,ST162,165 FR |
47447-20030 |
from US $1.74 |
||
|
47447C
|
47447C
47447-22020 Pin, Shoe Hold Down Spring[08.1985 - 08.1987] AT160,ST162,165 RR |
47447-22020 |
from US $3.36 |
||
|
47447D
|
47447D
90501-14049 Spring, Brake Shoe Hold Down[08.1985 - 08.1987] AT160,ST162,165 |
90501-14049 |
from US $1.38 |
||
|
47449A
|
47449A
47449-22010 Cup, Brake Shoe Hold Down[08.1985 - 08.1987] AT160,ST162 INNER |
47449-22010 |
US $3.64 |
||
| replacement | |||||
|
47449A
|
47449A
47449-40010 Cup, Brake Shoe Hold Down[08.1985 - 08.1987] AT160,ST162 INNER |
47449-40010 |
from US $2.15 |
||
|
47449A
|
47449A
47449-30030 Cup, Brake Shoe Hold Down[08.1985 - 08.1987] AT160,ST162 OUTER |
47449-30030 |
from US $1.66 |
||
|
47456A
|
47456A
47456-20030 Plate, Shoe Guide(For Parking Brake)[08.1985 - 08.1987] AT160,ST162,165 |
47456-20030 |
from US $0.86 |
||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[08.1985 - 08.1987] AT160,ST162,165 |
47459-30010 |
from US $3.71 |
||
|
47611
|
47611
47611-20030 Lever, Parking Brake Shoe, Rh[08.1985 - 08.1987] AT160,ST162,165 |
47611-20030 |
from US $16.56 |
||
|
47611A
|
47611A
90213-07018 Washer, Type C(For Parking Brake Shoe)[08.1985 - 08.1987] AT160,ST162,165 |
90213-07018 |
from US $0.92 |
||
|
47611B
|
47611B
90564-09184 Shim(For Parking Brake Shoe)[08.1985 - 08.1987] AT160,ST162,165 厚さ＝０．３,T=0.3 |
90564-09184 |
from US $1.44 |
||
|
47611B
|
47611B
90564-09185 Shim(For Parking Brake Shoe)[08.1985 - 08.1987] AT160,ST162,165 厚さ＝０．６,T=0.6 |
90564-09185 |
from US $1.44 |
||
|
47611B
|
47611B
90564-09186 Shim(For Parking Brake Shoe)[08.1985 - 08.1987] AT160,ST162,165 厚さ＝０．９,T=0.9 |
90564-09186 |
US $1.44 |
||
|
47612
|
47612
47612-20030 Lever, Parking Brake Shoe, Lh[08.1985 - 08.1987] AT160,ST162,165 |
47612-20030 |
US $18.17 |
||
|
47613C
|
47613C
47613-20040 Strut, Parking Brake Shoe[08.1985 - 08.1987] AT160,ST162,165 RH |
47613-20040 |
US $5.28 |
||
|
47613C
|
47613C
47614-20010 Strut, Parking Brake Shoe[08.1985 - 08.1987] AT160,ST162,165 LH |
47614-20010 |
from US $5.28 |
||
|
47613D
|
47613D
90504-14002 Spring, Compression(For Parking Brake Shoe Strut)[08.1985 - 08.1987] AT160,ST162,165 |
90504-14002 |
US $3.20 |
||
|
9017910030
|
9017910030
90179-10030 Nut(For Parking Brake Plate To Rear Axle Housing) |
90179-10030 |
US $2.56 |
||
