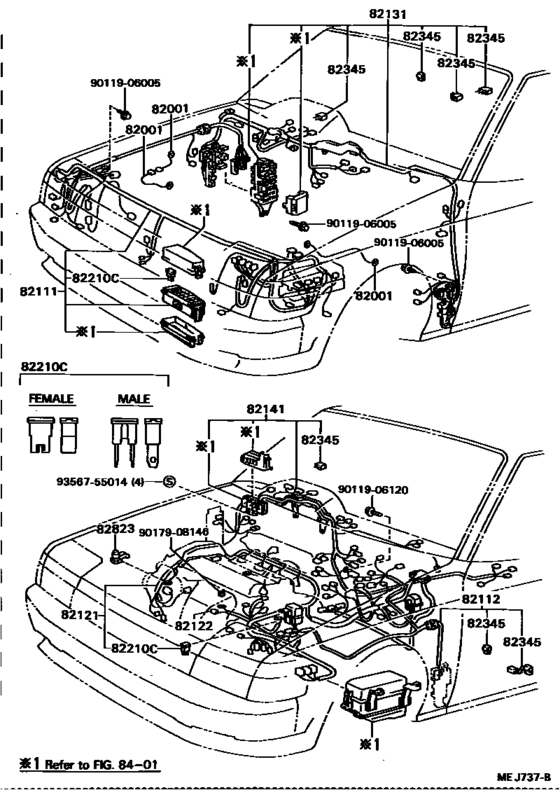

Wiring & Clamp ([08.1987 - ] (8708- )GT) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[08.1987 - 08.1989] ST16# PS RESERVE TANK BACKET-CABLE |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07239 Cable, Bond, No.1[08.1987 - 05.1988] ST162,165..GT,GT4 ENGINE HANGER-CABLE |
90980-07239 |
US $4.89 |
||
|
82001
|
82001
90980-07264
Cable, Bond, No.1
[08.1987 - 08.1989] ST16# START TOWER-TRANSMISSION |
90980-07264 |
— | ||
|
82001
|
82001
90980-07307
Cable, Bond, No.1
[05.1988 - 08.1989] ST162,165..GT,GT4 ENGINE HANGER-CABLE |
90980-07307 |
— | ||
|
82111
|
82111
82111-20860 Wire, Engine Room Main[08.1987 - 08.1989] ST160,162..GT,ST,SX |
82111-20860 |
US $711.98 |
||
|
82111
|
82111
82111-2B130 Wire, Engine Room Main[08.1987 - 08.1989] ST162..GT ｱﾘ(ESC) |
82111-2B130 |
US $711.98 |
||
|
82112
|
82112
82112-20240 Wire, Engine Room, No.2[08.1987 - 10.1987] ST16#..GT,ST,SX |
82112-20240 |
US $199.47 |
||
|
82112
|
82112
82112-20590 Wire, Engine Room, No.2[10.1987 - 05.1988] ST160,162..GT,ST,SX |
82112-20590 |
US $221.31 |
||
|
82112
|
82112
82112-20600 Wire, Engine Room, No.2[10.1987 - 05.1988] ST162..GT ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
82112-20600 |
US $221.31 |
||
|
82121
|
82121
82121-2B300 Wire, Engine[08.1987 - 05.1988] ST162..5F..GT |
82121-2B300 |
US $1,330.78 |
||
|
82121
|
82121
82121-2B301 Wire, Engine[05.1988 - 08.1988] ST162..5F..GT |
82121-2B301 |
US $1,499.68 |
||
|
82121
|
82121
82121-2B302 Wire, Engine[08.1988 - 08.1989] ST162..5F..GT |
82121-2B302 |
US $1,499.68 |
||
|
82122
|
82122
82122-20071 Wire, Engine, No.2[08.1987 - 08.1989] ST162..GT |
82122-20071 |
US $80.08 |
||
|
82131
|
82131
82131-2D540 Wire, Cowl[08.1987 - 08.1989] ST160,162,163..SX,ZR; ST162..GT GT-R |
82131-2D540 |
US $1,075.98 |
||
|
82131
|
82131
82131-2D550 Wire, Cowl[08.1987 - 08.1989] ST162..GT |
82131-2D550 |
US $1,141.50 |
||
|
82131
|
82131
82131-2D570 Wire, Cowl[08.1987 - 08.1989] ST162..GT GT-R & ｱﾘ(ESC) OR ｱﾘ(ESC) |
82131-2D570 |
US $1,572.48 |
||
|
82141
|
82141
82141-20661 Wire, Instrument Panel[08.1987 - 10.1987] ST160;ST162..5F |
82141-20661 |
US $618.80 |
||
|
82141
|
82141
82141-20670 Wire, Instrument Panel[10.1987 - 08.1989] ST162..5F..GT;ST162..LB..4FC |
82141-20670 |
US $548.91 |
||
|
82141
|
82141
82141-20680 Wire, Instrument Panel[08.1987 - 08.1989] ST160,162,163..GT,SX,ZR ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
82141-20680 |
US $711.98 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[08.1987 - 08.1989] ST16# ３０Ａ，メス端子 |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1987 - 08.1989] ST16# ４０Ａ，メス端子 |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08190 Fusible Link[08.1987 - 08.1989] ST162,165..GT,GT4 ６０Ａ，メス端子 |
90982-08190 |
US $12 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[08.1987 - 08.1989] ST16# ３０Ａ，オス端子 |
90982-08223 |
US $11.36 |
||
|
82345
|
82345
82345-12020 Diode[08.1987 - 08.1989] ST162..GT NO.1 |
82345-12020 |
US $15.55 |
||
|
82345
|
82345
82345-20040 Diode[08.1987 - 08.1989] ST16# NO.6 |
82345-20040 |
US $12.06 |
||
|
82345
|
82345
82345-20060 Diode[08.1987 - 08.1989] ST16# NO.7 |
82345-20060 |
US $11.01 |
||
|
82345
|
82345
82345-32010 Diode[08.1987 - 08.1989] ST160,162,163..GT,ST NO.5 |
82345-32010 |
US $12.06 |
||
|
82823
|
82823
82823-22060 Cap, Terminal, No.1[08.1987 - 08.1989] ST162,163 ALTERNATER |
82823-22060 |
US $14.56 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
