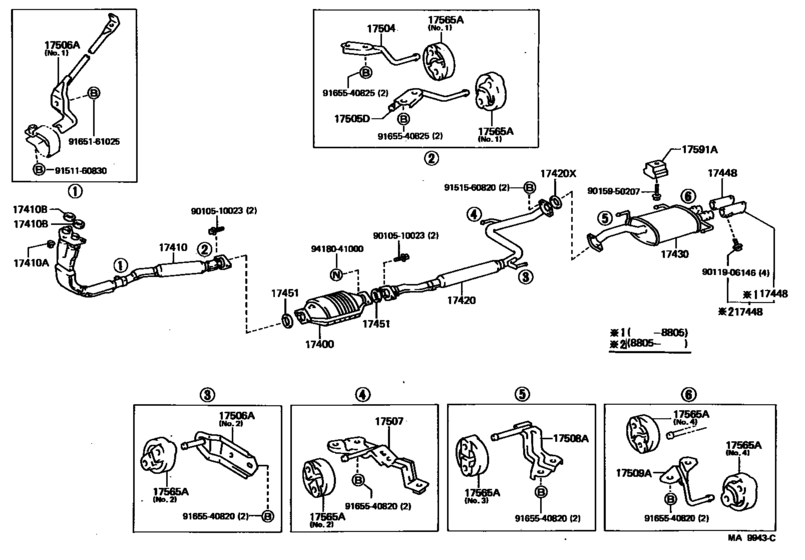

Exhaust Pipe ([08.1987 - ] (8708- )3SGELC) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GTS
- body
- CP
- ENGINE
- 3SGELC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-42130 Converter Assy, W/catalystW/CATALYST [07.1988 - 08.1989] 3SGELC..ST162 |
18450-42130 |
US $1,732.64 |
||
|
17400
|
17400
18450-74120 Converter Assy, W/catalystW/CATALYST [08.1987 - 07.1988] 3SGELC..ST162 |
18450-74120 |
US $1,747.20 |
||
| replacement | |||||
|
17400
|
17400
18450-42130 Converter Assy, W/catalystW/CATALYST [08.1987 - 07.1988] 3SGELC..ST162 |
18450-42130 |
US $1,732.64 |
||
|
17410
|
17410
17410-74340 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1987 - 08.1989] 3SGELC..ST162..USA |
17410-74340 |
US $615.89 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 3SFE,3SG#..ST16# |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 3SFE,3SG#..ST16# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1987 - 08.1989] 3SGELC..ST162 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1987 - 08.1989] 3SGELC..ST162 |
90917-06039 |
from US $2.36 |
||
|
17420
|
17420
17420-74090 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [08.1987 - 08.1989] 3SGELC..ST162 |
17420-74090 |
US $291.20 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
90917-06045 |
from US $1.70 |
||
|
17430
|
17430
17430-74080
Pipe Assy, Exhaust, Tail
[08.1987 - 08.1989] 3SGELC..ST162 |
17430-74080 |
— | ||
|
17448
|
17448
17448-74030
Baffle, Tail Pipe
[08.1987 - 05.1988] 3SGELC..ST162 |
17448-74030 |
— | ||
| replacement | |||||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[08.1987 - 05.1988] 3SGELC..ST162 |
17448-79015 |
US $53.99 |
||
|
17448
|
17448
17448-79015 Baffle, Tail Pipe[05.1988 - 08.1989] 3SGELC..ST162 |
17448-79015 |
US $53.99 |
||
|
17451
|
17451
90917-06031
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 3SGELC..ST162 FR |
90917-06031 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06043
Gasket, Exhaust Pipe
[08.1987 - 08.1989] 3SGELC..ST162 FR |
90917-06043 |
— | ||
|
17451
|
17451
90917-06032 Gasket, Exhaust Pipe, Center[08.1987 - 08.1989] 3SGELC..ST162 RR |
90917-06032 |
US $10.05 |
||
| replacement | |||||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[08.1987 - 08.1989] 3SGELC..ST162 RR |
90917-06054 |
from US $4.47 |
||
|
17504
|
17504
17504-74040 Bracket, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
17504-74040 |
US $23.73 |
||
|
17505D
|
17505D
17505-74020 Bracket, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
17505-74020 |
US $26.94 |
||
|
17506A
|
17506A
17506-74010 Bracket, Exhaust Pipe Front (For Center)[08.1987 - 08.1989] 3SFE,3SGELC..ST162 NO.2 |
17506-74010 |
US $15 |
||
|
17506A
|
17506A
17506-74030 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.1987 - 08.1989] 3SGELC..ST162 NO.1 |
17506-74030 |
US $40.91 |
||
| replacement | |||||
|
17506A
|
17506A
17506-74020 Bracket, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 3SGELC..ST162 NO.1 |
17506-74020 |
US $41.06 |
||
|
17507
|
17507
17507-74010
Bracket, Exhaust Pipe Front (For Rear)
[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
17507-74010 |
— | ||
|
17508A
|
17508A
17508-74010 Bracket, Exhaust Tail Pipe(For Front)[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
17508-74010 |
US $15 |
||
|
17509A
|
17509A
17509-74010 Bracket, Exhaust Tail Pipe (For Rear)[08.1987 - 08.1989] 3SFE,3SGELC..ST162 |
17509-74010 |
US $20.82 |
||
|
17565A
|
17565A
17565-63020 Ring, Catalytic Converter[08.1987 - 08.1989] 3SGTE..ST165 NO.1; 3SFE,3SGELC..ST162..4FC NO.3 |
17565-63020 |
from US $11.51 |
||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[08.1987 - 08.1989] 3SGTE..ST165 NO.2; 3SFE,3SGELC..ST162..4FC NO.4 |
17565-63030 |
US $13.44 |
||
|
17565A
|
17565A
17565-63060 Bolt Or Ring, Exhaust Pipe Front (For Front)[08.1987 - 08.1989] 3SFE,3SGELC..ST162..4FC NO.1,2 |
17565-63060 |
US $12.52 |
||
|
17591A
|
17591A
17591-74010 Stopper, Exhaust Pipe Support[08.1987 - 08.1989] 3SFE,3SG#..ST16# |
17591-74010 |
US $18.05 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.98 |
||
|
9011906146
|
9011906146
90119-06146 New Genuine Part |
90119-06146 |
US $1.02 |
||
|
9015950207
|
9015950207
90159-50207 New Genuine Part |
90159-50207 |
US $0.92 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.98 |
||
|
9151560820
|
9151560820
91515-60820 New Genuine Part |
91515-60820 |
US $2.18 |
||
| replacement | |||||
|
9151560820
|
9151560820
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.54 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
