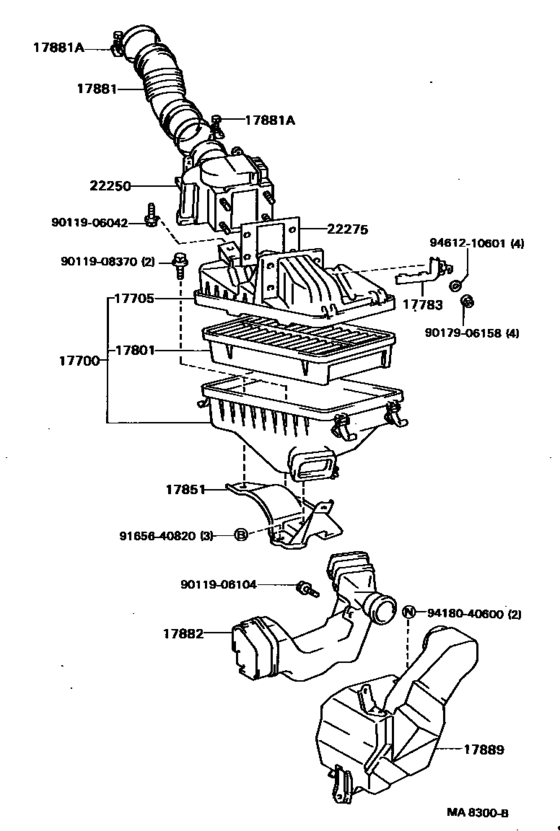

Air Cleaner ([08.1985 - ] (8508- )3SGELC) Diagram Toyota CELICA
- Year
- 1985 - 1987
- Sales region
- Europe
- Frame
- ST162
- grade
- GTS
- body
- LB
- ENGINE
- 3SGELC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-74040 Cleaner Assy, Air[08.1985 - 08.1987] 3SGELC..ST162 |
17700-74040 |
US $337.79 |
||
|
17705
|
17705
17705-74040
Cap Sub-Assy, Air Cleaner
[08.1985 - 08.1987] 3SGELC..ST162 |
17705-74040 |
— | ||
|
17783
|
17783
17783-74020
Plate, Air Cleaner Baffle
[08.1985 - 08.1987] 2SELC,3S#..ST16# |
17783-74020 |
— | ||
|
17801
|
17801
17801-64010 Element Sub-Assy, Air Cleaner Filter[08.1985 - 08.1987] 2SELC,3SGELC..ST16# |
17801-64010 |
from US $43.39 |
||
|
17851
|
17851
17851-74010
Bracket, Air Cleaner Support
[08.1985 - 08.1987] 2SELC,3S#..ST16# |
17851-74010 |
— | ||
|
17881
|
17881
17881-74060
Hose, Air Cleaner, No.1
[08.1985 - 08.1987] 3SGELC..ST162 |
17881-74060 |
— | ||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[11.1985 - 08.1987] 3SGELC..ST162 THROTTLE BODY SIDE |
96111-10750 |
from US $3.04 |
||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[08.1985 - 11.1985] 3SGELC..ST162 THROTTLE BODY SIDE |
96111-10780 |
from US $3.61 |
||
|
17881A
|
17881A
96111-10900 Clamp, Hose[08.1985 - 08.1987] 3SGELC..ST162 AIR FLOW METER SIDE |
96111-10900 |
from US $1.21 |
||
|
17882
|
17882
17882-20100
Hose, Air Cleaner, No.2
[08.1985 - 08.1987] 2SELC,3SGELC..ST16# |
17882-20100 |
— | ||
|
17889
|
17889
17889-20010 Box, Air Cleaner Hose, No.2[08.1985 - 08.1987] 2SELC,3SGELC..ST16# |
17889-20010 |
US $187.82 |
||
|
22250
|
22250
22250-74060 Meter Assy, Intake Air FlowINTAKE AIR FLOW [08.1985 - 08.1987] 3SGELC..ST162 |
22250-74060 |
US $917.28 |
||
|
22275
|
22275
22275-43010 Gasket, Air Flow Meter[08.1985 - 08.1987] 3SGELC..ST162 |
22275-43010 |
from US $14.24 |
||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011906104
|
9011906104
90119-06104 New Genuine Part |
90119-06104 |
US $1.89 |
||
|
9011908370
|
9011908370
90119-08370
New Genuine Part
|
90119-08370 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $1.03 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
