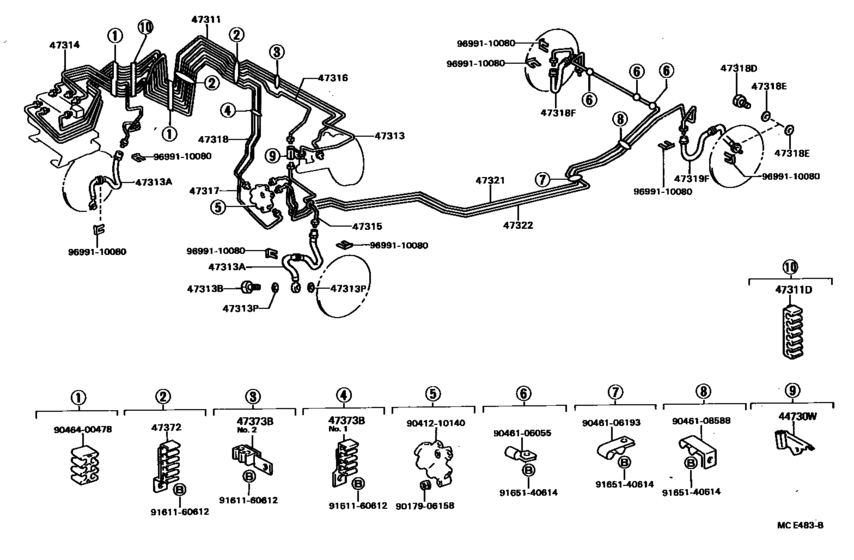

Brake Tube & Clamp ([08.1987 - ] W(ANTI-LOCK BRAKE SYSTEM) (8708- )ST162..LHD) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44730W
|
44730W
90412-10149 Way, 2(For Front Brake Tube)[08.1987 - 05.1988] ST162..LHD |
90412-10149 |
US $13.25 |
||
|
47311
|
47311
47311-20420
Tube, Front Brake, No.1
[08.1987 - 08.1989] AT160,ST162..LHD |
47311-20420 |
— | ||
|
47311
|
47311
47311-20510 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1987 - 03.1988] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
47311-20510 |
US $14.71 |
||
|
47311
|
47311
47311-20511 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
47311-20511 |
US $27.37 |
||
|
47311D
|
47311D
90480-01433 Grommet(For Front Brake Tube)[08.1987 - 08.1989] ST162 |
90480-01433 |
US $3.32 |
||
|
47313
|
47313
47313-20250
Tube, Front Brake, No.3
[08.1987 - 08.1989] AT160,ST162..LHD |
47313-20250 |
— | ||
|
47313
|
47313
47313-20330 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
47313-20330 |
US $36.69 |
||
|
47313A
|
47313A
90947-02550 Hose, Flexible, No.1(For Front)[08.1987 - 08.1989] AT160,ST16# |
90947-02550 |
US $38.73 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02940
Hose, Flexible, No.1(For Front)
[08.1987 - 08.1989] AT160,ST16# |
90947-02940 |
— | ||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1987 - 08.1989] AT160,ST16# |
90401-10015 |
from US $3.20 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[08.1987 - 08.1989] AT160,ST16# |
90430-10074 |
from US $0.94 |
||
|
47314
|
47314
47314-20200
Tube, Front Brake, No.4
[08.1987 - 08.1989] AT160,ST16#..LHD |
47314-20200 |
— | ||
|
47314
|
47314
47314-20250 Tube, Front Brake, No.4FRONT BRAKE, NO.4 [08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
47314-20250 |
US $18.05 |
||
|
47315
|
47315
47315-20330
Tube, Front Brake, No.5
[08.1987 - 08.1989] AT160,ST162..LHD |
47315-20330 |
— | ||
|
47315
|
47315
47315-20340 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1987 - 08.1989] ST165..LHD; ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
47315-20340 |
US $5.53 |
||
|
47316
|
47316
47316-20380 Tube, Front Brake, No.6FRONT BRAKE, NO.6 [08.1987 - 08.1989] ST162..LHD |
47316-20380 |
US $34.36 |
||
|
47317
|
47317
47317-20030 Tube, Front Brake, No.7FRONT BRAKE, NO.7 [08.1987 - 08.1989] ST162..LHD |
47317-20030 |
US $32.47 |
||
|
47318
|
47318
47318-20160 Tube, Front Brake, No.8FRONT BRAKE, NO.8 [08.1987 - 08.1989] ST162..LHD |
47318-20160 |
US $24.46 |
||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.1987 - 08.1989] ST16# |
90401-10015 |
from US $3.20 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[08.1987 - 08.1989] ST16# |
90430-10074 |
from US $0.94 |
||
|
47318F
|
47318F
90947-02551 Hose, Flexible(For Rear Rh)[08.1987 - 08.1989] ST162 |
90947-02551 |
US $41.64 |
||
| replacement | |||||
|
47318F
|
47318F
90947-02941
Hose, Flexible(For Rear Rh)
[08.1987 - 08.1989] ST162 |
90947-02941 |
— | ||
|
47319F
|
47319F
90947-02551 Hose, Flexible(For Rear Rh)[08.1987 - 08.1989] ST162 |
90947-02551 |
US $41.64 |
||
| replacement | |||||
|
47319F
|
47319F
90947-02941
Hose, Flexible(For Rear Rh)
[08.1987 - 08.1989] ST162 |
90947-02941 |
— | ||
|
47321
|
47321
47321-20130
Tube, Rear Brake, No.1
[08.1987 - 08.1989] AT160,ST162..LHD |
47321-20130 |
— | ||
|
47322
|
47322
47322-20250
Tube, Rear Brake, No.2
[08.1987 - 08.1989] AT160,ST162..LHD |
47322-20250 |
— | ||
|
47372
|
47372
47371-20070 Clamp, Brake Tube, No.4[08.1987 - 08.1989] ST162..LHD |
47371-20070 |
US $5.24 |
||
|
47373B
|
47373B
47371-20060 Clamp, Brake Tube, No.1[08.1987 - 08.1989] ST162..RHD W(ANTI-LOCK BRAKE SYSTEM),NO.1; ST162..LHD W(ANTI-LOCK BRAKE SYSTEM),NO.2 |
47371-20060 |
US $5.24 |
||
| replacement | |||||
|
47373B
|
47373B
47371-42070 Clamp, Brake Tube, No.1[08.1987 - 08.1989] ST162..RHD W(ANTI-LOCK BRAKE SYSTEM),NO.1; ST162..LHD W(ANTI-LOCK BRAKE SYSTEM),NO.2 |
47371-42070 |
US $7.13 |
||
|
47373B
|
47373B
47371-30010 Clamp, Brake Tube, No.1[08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM),NO.1 |
47371-30010 |
US $11.53 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9041210140
|
9041210140
90412-10140 Valve Assy, Proportioning |
90412-10140 |
from US $32.50 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $3.14 |
||
|
9046106193
|
9046106193
90461-06193 New Genuine Part |
90461-06193 |
US $4.37 |
||
|
9046108588
|
9046108588
90461-08588
New Genuine Part
|
90461-08588 |
— | ||
|
9046400478
|
9046400478
90464-00478
Clamp, Brake Tube, No.3
|
90464-00478 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.35 |
||
