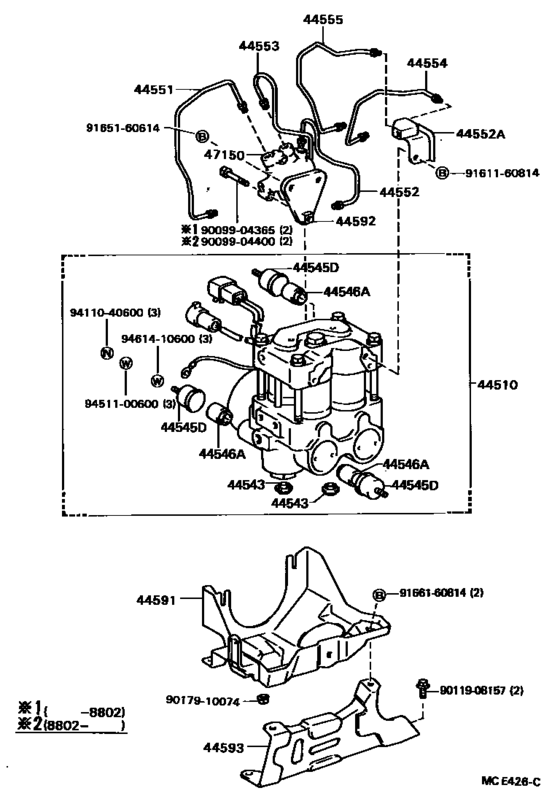

Brake Tube & Clamp ([08.1987 - ] W(ANTI-LOCK BRAKE SYSTEM) (8708- )ST162) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44510
|
44510
44510-20010 Actuator Assy, Brake[08.1987 - 08.1989] ST162 |
44510-20010 |
US $1,849.12 |
||
|
44543
|
44543
44543-14010
Cap, Rubber
[08.1987 - 08.1989] ST16# |
44543-14010 |
— | ||
|
44545D
|
44545D
44545-14010
Holder, Brake Actuator Bolt
[08.1987 - 08.1989] ST16# |
44545-14010 |
— | ||
|
44546A
|
44546A
44546-14010 Cushion, Brake Actuator Bolt[08.1987 - 08.1989] ST16# |
44546-14010 |
US $1.31 |
||
|
44551
|
44551
44551-20010 Tube, Brake Actuator, No.1[08.1987 - 02.1988] ST162 |
44551-20010 |
US $8.59 |
||
|
44551
|
44551
44551-20011 Tube, Brake Actuator, No.1[02.1988 - 08.1989] ST162 |
44551-20011 |
US $8.30 |
||
|
44552
|
44552
44552-20010 Tube, Brake Actuator, No.2[08.1987 - 02.1988] ST162 |
44552-20010 |
US $8.59 |
||
|
44552
|
44552
44552-20030 Tube, Brake Actuator, No.2[02.1988 - 08.1988] ST162 |
44552-20030 |
US $8.59 |
||
| replacement | |||||
|
44552
|
44552
44552-20031 Tube, Brake Actuator, No.2[02.1988 - 08.1988] ST162 |
44552-20031 |
US $8.30 |
||
|
44552
|
44552
44552-20031 Tube, Brake Actuator, No.2[08.1988 - 08.1989] ST162 |
44552-20031 |
US $8.30 |
||
|
44552A
|
44552A
90413-10215 Way, No.2(For Brake Actuator)[08.1987 - 08.1989] ST162 |
90413-10215 |
US $15.87 |
||
|
44553
|
44553
44553-20010 Tube, Brake Actuator, No.3[08.1987 - 02.1988] ST162 |
44553-20010 |
US $8.59 |
||
|
44553
|
44553
44553-20011 Tube, Brake Actuator, No.3[02.1988 - 08.1989] ST162 |
44553-20011 |
US $8.30 |
||
|
44554
|
44554
44554-20010 Tube, Brake Actuator, No.4[08.1987 - 11.1987] ST162 |
44554-20010 |
US $8.59 |
||
| replacement | |||||
|
44554
|
44554
44554-20011 Tube, Brake Actuator, No.4[08.1987 - 11.1987] ST162 |
44554-20011 |
US $8.59 |
||
|
44554
|
44554
44554-20011 Tube, Brake Actuator, No.4[11.1987 - 02.1988] ST162 |
44554-20011 |
US $8.59 |
||
|
44554
|
44554
44554-20012 Tube, Brake Actuator, No.4[02.1988 - 08.1989] ST162 |
44554-20012 |
US $8.30 |
||
|
44555
|
44555
44555-20010 Tube, Brake Actuator, No.5[08.1987 - 11.1987] ST162 |
44555-20010 |
US $9.46 |
||
| replacement | |||||
|
44555
|
44555
44555-20011 Tube, Brake Actuator, No.5[08.1987 - 11.1987] ST162 |
44555-20011 |
US $9.17 |
||
|
44555
|
44555
44555-20011 Tube, Brake Actuator, No.5[11.1987 - 08.1989] ST162 |
44555-20011 |
US $9.17 |
||
|
44591
|
44591
44591-20010 Bracket, Brake Actuator, No.1[08.1987 - 08.1989] ST162 |
44591-20010 |
US $62.46 |
||
|
44592
|
44592
44592-20010 Bracket, Brake Actuator, No.2[08.1987 - 08.1989] ST162 |
44592-20010 |
US $7.86 |
||
|
44593
|
44593
44593-20010 Bracket, Brake Actuator, No.3[08.1987 - 08.1989] ST162 |
44593-20010 |
US $28.54 |
||
|
47150
|
47150
47150-12060
Valve Assy, Proportioning
[01.1988 - 08.1989] ST162 |
47150-12060 |
— | ||
| replacement | |||||
|
47150
|
47150
47150-12270 Valve Assy, Proportioning[01.1988 - 08.1989] ST162 |
47150-12270 |
from US $172.98 |
||
|
47150
|
47150
47150-20130 Valve Assy, Proportioning[08.1987 - 01.1988] ST162 |
47150-20130 |
US $225.68 |
||
| replacement | |||||
|
47150
|
47150
47150-12240 Valve Assy, ProportioningPROPORTIONING [08.1987 - 01.1988] ST162 |
47150-12240 |
from US $215.59 |
||
|
47150
|
47150
47150-20200 Valve Assy, ProportioningPROPORTIONING [08.1987 - 01.1988] ST162 W(ANTI-LOCK BRAKE SYSTEM) |
47150-20200 |
US $227.14 |
||
| replacement | |||||
|
47150
|
47150
47150-20201
Valve Assy, Proportioning
[08.1987 - 01.1988] ST162 W(ANTI-LOCK BRAKE SYSTEM) |
47150-20201 |
— | ||
|
47150
|
47150
47150-20201
Valve Assy, Proportioning
[01.1988 - 08.1989] ST162 W(ANTI-LOCK BRAKE SYSTEM) |
47150-20201 |
— | ||
|
9009904365
|
9009904365
90099-04365
New Genuine Part
|
90099-04365 |
— | ||
|
9009904400
|
9009904400
90099-04400
New Genuine Part
|
90099-04400 |
— | ||
|
9011908157
|
9011908157
90119-08157
New Genuine Part
|
90119-08157 |
— | ||
| replacement | |||||
|
9011908157
|
9011908157
90119-08718 BOLT WWASHER |
90119-08718 |
from US $2.07 |
||
|
9017910074
|
9017910074
90179-10074 New Genuine Part |
90179-10074 |
US $1.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9166160814
|
9166160814
91661-60814 New Genuine Part |
91661-60814 |
US $1.02 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
