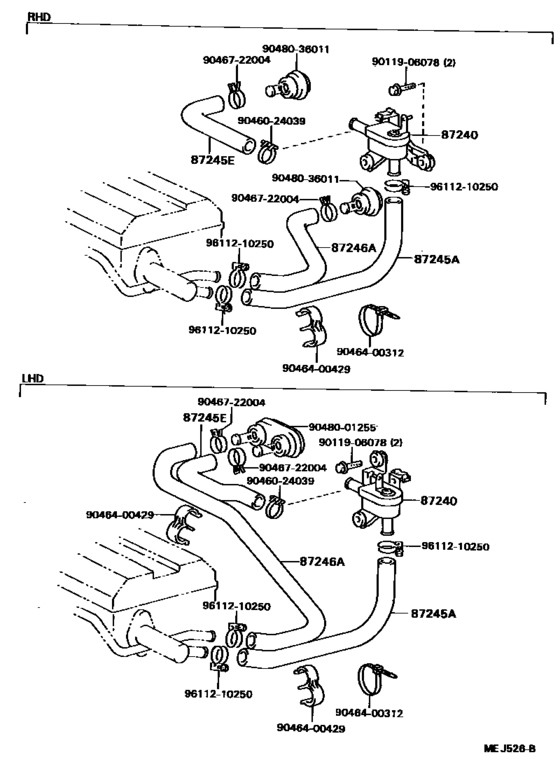

Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )ST16#) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87240
|
87240
87240-20300 Valve Assy, Heater WaterHEATER WATER [08.1987 - 08.1989] AT160,ST16#..LHD |
87240-20300 |
US $43.24 |
||
|
87245A
|
87245A
87245-2B080
Hose, Heater Water, Inlet A
[08.1987 - 08.1989] ST162;ST165..RHD |
87245-2B080 |
— | ||
|
87245E
|
87245E
87245-20820
Hose, Heater Water, Inlet E
[08.1987 - 08.1989] AT160,ST16#..LHD |
87245-20820 |
— | ||
|
87246A
|
87246A
87245-20870
Hose, Heater Water, Outlet A
[08.1987 - 08.1989] ST16#..LHD |
87245-20870 |
— | ||
|
9011906078
|
9011906078
90119-06078 New Genuine Part |
90119-06078 |
US $1.75 |
||
| replacement | |||||
|
9011906078
|
9011906078
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9046400312
|
9046400312
90464-00312 New Genuine Part |
90464-00312 |
US $1.31 |
||
|
9046400429
|
9046400429
90464-00429 New Genuine Part |
90464-00429 |
US $2.18 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $4.49 |
||
|
9048001255
|
9048001255
90480-01255
New Genuine Part
|
90480-01255 |
— | ||
|
9048036011
|
9048036011
90480-36011
Grommet, Heater Hose
|
90480-36011 |
— | ||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.75 |
||
