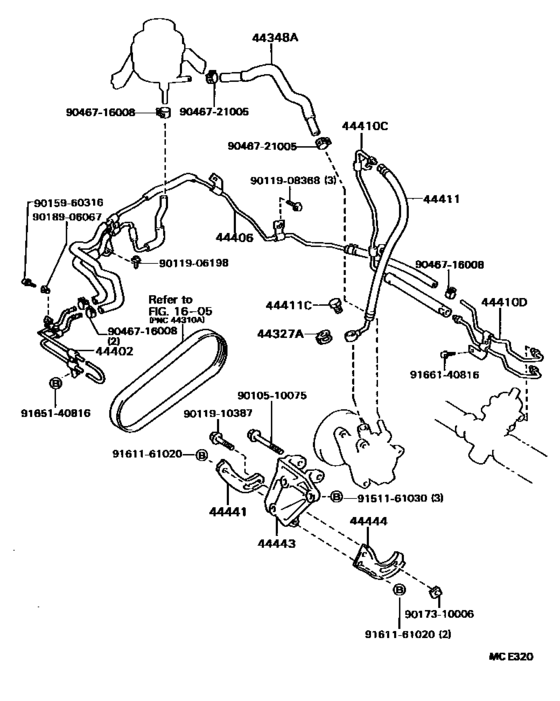

Power Steering Tube ([08.1987 - ] (8708- )ST162..LHD) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[08.1987 - 08.1989] ST16# |
44327-12010 |
US $4.16 |
||
|
44348A
|
44348A
44348-20110
Hose, Oil Reservoir To Pump, No.1
[08.1987 - 08.1989] ST16#..LHD |
44348-20110 |
— | ||
|
44348A
|
44348A
44348-20150 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
44348-20150 |
US $84.45 |
||
|
44402
|
44402
44402-20180 Cooler Sub-Assy, Power Steering Oil, No.1POWER STEERING OIL, NO.1 [08.1987 - 08.1989] ST162..LHD |
44402-20180 |
US $109.20 |
||
|
44406
|
44406
44406-20041 Tube Sub-Assy, ReturnRETURN [08.1987 - 08.1989] ST162..LHD |
44406-20041 |
US $186.37 |
||
|
44406
|
44406
44406-20070 Tube Sub-Assy, ReturnRETURN [08.1987 - 08.1989] ST162..LHD W(ANTI-LOCK BRAKE SYSTEM) |
44406-20070 |
US $160.16 |
||
|
44410C
|
44410C
44410-20330
Tube Assy, Pressure Feed, No.1
[08.1987 - 08.1989] ST162..LHD |
44410-20330 |
— | ||
| replacement | |||||
|
44410C
|
44410C
44410-20331 Tube Assy, Pressure Feed, No.1[08.1987 - 08.1989] ST162..LHD |
44410-20331 |
US $190.74 |
||
|
44410D
|
44410D
44410-20260
Tube Assy, Pressure Feed, No.2
[08.1987 - 08.1989] ST162..LHD |
44410-20260 |
— | ||
|
44411
|
44411
44411-20170
Hose, Pressure Feed
[08.1987 - 08.1989] ST162..LHD |
44411-20170 |
— | ||
| replacement | |||||
|
44411
|
44411
44411-20171
Hose, Pressure Feed
[08.1987 - 08.1989] ST162..LHD |
44411-20171 |
— | ||
|
44411C
|
44411C
90401-16008 Bolt, Union(For Pressure Feed Tube)[08.1987 - 08.1989] ST16# |
90401-16008 |
from US $9.76 |
||
|
44441
|
44441
44441-32010
Bracket, Pump, Front
[08.1987 - 08.1989] ST16# |
44441-32010 |
— | ||
|
44443
|
44443
44443-20050 Bracket, Pump[08.1987 - 08.1989] ST16# |
44443-20050 |
US $70.76 |
||
|
44444
|
44444
44444-20030 Stay, Pump, Rear[08.1987 - 08.1989] ST16# |
44444-20030 |
US $17.47 |
||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.56 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $1.75 |
||
|
9011908368
|
9011908368
90119-08368 New Genuine Part |
90119-08368 |
US $2.18 |
||
|
9011910387
|
9011910387
90119-10387
New Genuine Part
|
90119-10387 |
— | ||
|
9015960316
|
9015960316
90159-60316 New Genuine Part |
90159-60316 |
US $1.60 |
||
|
9017310006
|
9017310006
90173-10006 New Genuine Part |
90173-10006 |
US $1.22 |
||
|
9018906067
|
9018906067
90189-06067 CLIP |
90189-06067 |
from US $0.82 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
US $4.80 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $5.85 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9166140816
|
9166140816
91661-40816
New Genuine Part
|
91661-40816 |
— | ||
