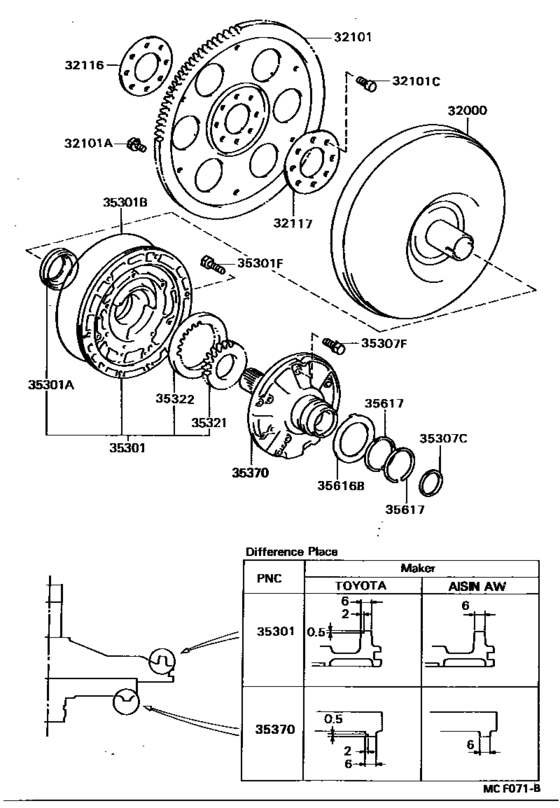

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140E (8708- )4FC) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-32020 Converter Assy, Torque[08.1987 - 02.1988] ST162..4FC |
32000-32020 |
US $1,834.56 |
||
| replacement | |||||
|
32000
|
32000
32000-32080
Converter Assy, Torque
[08.1987 - 02.1988] ST162..4FC |
32000-32080 |
— | ||
|
32000
|
32000
32000-32040 Converter Assy, Torque[02.1988 - 08.1989] ST162..4FC |
32000-32040 |
US $1,834.56 |
||
| replacement | |||||
|
32000
|
32000
32000-32080
Converter Assy, Torque
[02.1988 - 08.1989] ST162..4FC |
32000-32080 |
— | ||
|
32101
|
32101
32101-20100 Gear Sub-Assy, Drive Plate & Ring[07.1989 - 08.1989] ST162..4FC |
32101-20100 |
US $281.01 |
||
|
32101
|
32101
32101-32021
Gear Sub-Assy, Drive Plate & Ring
[08.1987 - 07.1989] ST162..4FC |
32101-32021 |
— | ||
|
32101A
|
32101A
90109-08113 Bolt(For Drive Plate & Torque Converter Setting)[08.1987 - 08.1989] ST162..4FC *8-1.25PX12-8.4,OLIVE GREEN |
90109-08113 |
US $1.28 |
||
|
32101A
|
32101A
90119-08498 Bolt(For Drive Plate & Torque Converter Setting)[08.1987 - 08.1989] ST162..4FC *8-1.25PX12-8,BLACK |
90119-08498 |
US $1.28 |
||
|
32101C
|
32101C
90105-12184
Bolt, Flywheel Setting
[07.1989 - 08.1989] ST162..4FC *12-1.25PX22-16 |
90105-12184 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-12384 Bolt, Flywheel Setting[07.1989 - 08.1989] ST162..4FC *12-1.25PX22-16 |
90105-12384 |
from US $0.92 |
||
|
32101C
|
32101C
90109-10054 Bolt(For Drive Plate & Torque Converter Setting)[08.1987 - 07.1989] ST162..4FC *10-1.25PX22-16 |
90109-10054 |
US $3.36 |
||
|
32116
|
32116
32116-20040 Spacer, Drive Plate, Front[07.1989 - 08.1989] ST162..4FC |
32116-20040 |
US $15.87 |
||
|
32116
|
32116
32116-32011 Spacer, Drive Plate, Front[08.1987 - 07.1989] ST162..4FC |
32116-32011 |
US $16.07 |
||
|
32117
|
32117
32117-20050 Spacer, Drive Plate, Rear[07.1989 - 08.1989] ST162..4FC |
32117-20050 |
US $20.68 |
||
|
32117
|
32117
32117-32010 Spacer, Drive Plate, Rear[08.1987 - 07.1989] ST162..4FC |
32117-32010 |
US $13.28 |
||
|
35301
|
35301
35035-32010 Body Sub-Assy, Front Oil Pump[08.1987 - 08.1989] ST162..4FC AISIN AW |
35035-32010 |
US $355.26 |
||
|
35301
|
35301
35035-32020 Body Sub-Assy, Front Oil Pump[08.1987 - 08.1989] ST162..4FC TOYOTA |
35035-32020 |
US $355.26 |
||
| replacement | |||||
|
35301
|
35301
35035-32H00 Body Sub-Assy, Front Oil Pump[08.1987 - 08.1989] ST162..4FC TOYOTA |
35035-32H00 |
US $400.40 |
||
|
35301A
|
35301A
90311-38020 Seal, Oil (For Front Oil Pump)[08.1987 - 08.1989] ST162..4FC |
90311-38020 |
from US $8.64 |
||
|
35301B
|
35301B
90301-99024 Ring, O (For Front Oil Pump Body)[08.1987 - 08.1989] ST162..4FC |
90301-99024 |
from US $10.43 |
||
|
35301F
|
35301F
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting)[08.1987 - 08.1989] ST162..4FC *8-1.25PX28-28 |
90105-08050 |
US $3.20 |
||
|
35307C
|
35307C
35789-32020
Race, Thrust Bearing (For Stator Shaft)
[08.1987 - 08.1989] ST162..4FC T=0.8,T=0.8 |
35789-32020 |
— | ||
|
35307C
|
35307C
35789-32030 Race, Thrust Bearing (For Stator Shaft)[08.1987 - 08.1989] ST162..4FC T=1.4,T=1.4 |
35789-32030 |
US $9.90 |
||
|
35307F
|
35307F
90119-06180 Bolt (For Stator Shaft)[08.1987 - 08.1989] ST162..4FC |
90119-06180 |
US $1.02 |
||
|
35321
|
35321
35321-32040 Gear, Front Oil Pump Drive[08.1987 - 08.1989] ST162..4FC T=9.440-9.456 |
35321-32040 |
US $52.27 |
||
| replacement | |||||
|
35321
|
35321
35321-12070
Gear, Front Oil Pump Drive
[08.1987 - 08.1989] ST162..4FC T=9.440-9.456 |
35321-12070 |
— | ||
|
35321
|
35321
35321-32050 Gear, Front Oil Pump Drive[08.1987 - 08.1989] ST162..4FC T=9.456-9.474 |
35321-32050 |
US $52.27 |
||
| replacement | |||||
|
35321
|
35321
35321-12090 Gear, Front Oil Pump Drive[08.1987 - 08.1989] ST162..4FC T=9.456-9.474 |
35321-12090 |
US $50.09 |
||
|
35321
|
35321
35321-32060 Gear, Front Oil Pump Drive[08.1987 - 08.1989] ST162..4FC T=9.474-9.490 |
35321-32060 |
US $52.27 |
||
| replacement | |||||
|
35321
|
35321
35321-12110 Gear, Front Oil Pump Drive[08.1987 - 08.1989] ST162..4FC T=9.474-9.490 |
35321-12110 |
US $50.09 |
||
|
35322
|
35322
35322-32040 Gear, Front Oil Pump Driven[08.1987 - 08.1989] ST162..4FC T=9.440-9.456 |
35322-32040 |
US $56.06 |
||
| replacement | |||||
|
35322
|
35322
35322-12060 Gear, Front Oil Pump Driven[08.1987 - 08.1989] ST162..4FC T=9.440-9.456 |
35322-12060 |
US $53.58 |
||
|
35322
|
35322
35322-32050 Gear, Front Oil Pump Driven[08.1987 - 08.1989] ST162..4FC T=9.456-9.474 |
35322-32050 |
US $56.06 |
||
| replacement | |||||
|
35322
|
35322
35322-12080 Gear, Front Oil Pump Driven[08.1987 - 08.1989] ST162..4FC T=9.456-9.474 |
35322-12080 |
US $53.58 |
||
|
35322
|
35322
35322-32060 Gear, Front Oil Pump Driven[08.1987 - 08.1989] ST162..4FC T=9.474-9.490 |
35322-32060 |
US $56.06 |
||
| replacement | |||||
|
35322
|
35322
35322-12100
Gear, Front Oil Pump Driven
[08.1987 - 08.1989] ST162..4FC T=9.474-9.490 |
35322-12100 |
— | ||
|
35370
|
35370
35370-32022 Shaft Sub-Assy, Stator[08.1987 - 08.1989] ST162..4FC AISIN AW |
35370-32022 |
US $364 |
||
| replacements | |||||
|
35370
|
35370
35370-20H00 Shaft Assy, Stator[08.1987 - 08.1989] ST162..4FC AISIN AW |
35370-20H00 |
US $243.15 |
||
|
35370
|
35370
35370-32H01 Shaft Assy, Stator[08.1987 - 08.1989] ST162..4FC AISIN AW |
35370-32H01 |
US $260.62 |
||
|
35370
|
35370
35370-32031 Shaft Sub-Assy, Stator[08.1987 - 08.1989] ST162..4FC TOYOTA |
35370-32031 |
US $364 |
||
| replacement | |||||
|
35370
|
35370
35370-32H02 Shaft Assy, Stator[08.1987 - 08.1989] ST162..4FC TOYOTA |
35370-32H02 |
US $340.70 |
||
|
35616B
|
35616B
35616-32010 Washer, Clutch Drum Thrust (For Stator Shaft)[08.1987 - 08.1989] ST162..4FC |
35616-32010 |
US $27.81 |
||
|
35617
|
35617
35617-32011 Ring, Clutch Drum Oil Seal[08.1987 - 08.1989] ST162..4FC |
35617-32011 |
US $20.38 |
||
