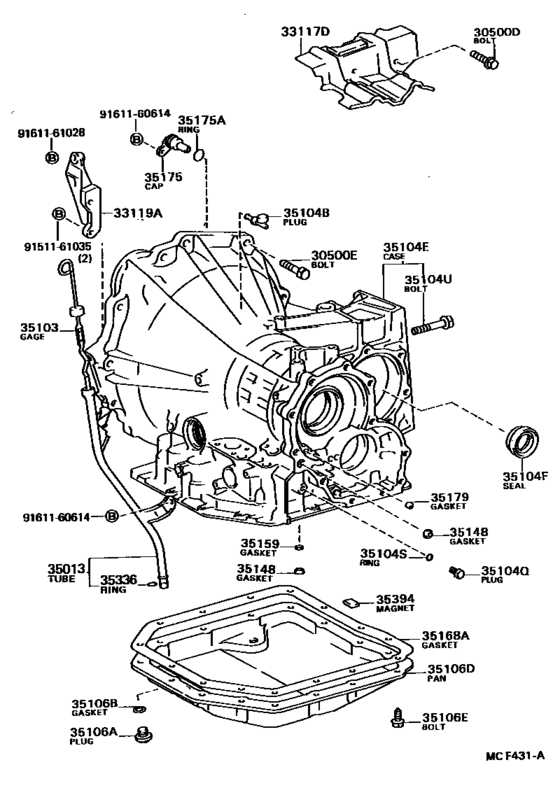

Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140E (8708- )4FC) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST162
- grade
- GT
- body
- LB
- ENGINE
- 3SGEL
- TRANSMISSION
- ATM
- DESTINATION
- EUG
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500D
|
30500D
90105-08040
Bolt(For Plate Bolt Lock)
[08.1987 - 08.1989] ST162..4FC |
90105-08040 |
— | ||
| replacement | |||||
|
30500D
|
30500D
91641-H0820 Bolt[08.1987 - 08.1989] ST162..4FC |
91641-H0820 |
from US $0.88 |
||
|
30500E
|
30500E
90105-08040
Bolt(For Plate Bolt Lock)
[08.1987 - 08.1989] ST162..4FC *8-1.25PX18-15 |
90105-08040 |
— | ||
| replacement | |||||
|
30500E
|
30500E
91641-H0820 Bolt[08.1987 - 08.1989] ST162..4FC *8-1.25PX18-15 |
91641-H0820 |
from US $0.88 |
||
|
30500E
|
30500E
90105-10077 Bolt(For Transaxle Case Protector)[08.1987 - 08.1989] ST162..4FC *10-1.25PX43-26 |
90105-10077 |
from US $4.16 |
||
|
30500E
|
30500E
91619-61245 Bolt(For Transaxle & Engine Setting)[08.1987 - 08.1989] ST162..4FC *12-1.25PX45-30 |
91619-61245 |
from US $1.92 |
||
|
33117D
|
33117D
33117-32022 Protector, Transaxle Case[08.1987 - 08.1989] ST162..4FC |
33117-32022 |
US $29.70 |
||
|
33119A
|
33119A
33119-32030 Plate, Stiffener, Lh(Mtm)[08.1987 - 08.1989] ST162..4FC |
33119-32030 |
US $55.18 |
||
|
35013
|
35013
35013-20240 Tube Sub-Assy, Transmission Oil Filler[08.1987 - 08.1989] ST162..4FC |
35013-20240 |
US $23.30 |
||
|
35103
|
35103
35103-20120 Gage Sub-Assy, Transmission Oil Level[08.1987 - 08.1989] ST162..4FC |
35103-20120 |
US $15.87 |
||
|
35104B
|
35104B
90930-03089
Plug, Breather, No.1 (Atm)
[08.1987 - 08.1989] ST162..4FC |
90930-03089 |
— | ||
|
35104E
|
35104E
35104-32051 Case Sub-Assy, Automatic Transaxle[08.1987 - 02.1988] ST162..4FC |
35104-32051 |
US $1,246.34 |
||
| replacements | |||||
|
35104E
|
35104E
35104-32112 Case Sub-Assy, Automatic Transaxle[08.1987 - 02.1988] ST162..4FC |
35104-32112 |
US $1,244.88 |
||
|
35104E
|
35104E
90501-18084 Spring, Compression (For C-1 Accumulator Piston)[08.1987 - 02.1988] ST162..4FC |
90501-18084 |
US $3.64 |
||
|
35104E
|
35104E
35424-20020 Piston, C-1 Accumulator[08.1987 - 02.1988] ST162..4FC |
35424-20020 |
US $12.96 |
||
|
35104E
|
35104E
35603-32030
Spring Sub-Assy, Forward Clutch Return
[08.1987 - 02.1988] ST162..4FC |
35603-32030 |
— | ||
|
35104E
|
35104E
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[08.1987 - 02.1988] ST162..4FC |
90301-23194 |
US $5.24 |
||
|
35104E
|
35104E
90501-20118 Spring, Compression (For C-1 Accumulator Piston)[08.1987 - 02.1988] ST162..4FC |
90501-20118 |
US $3.49 |
||
|
35104E
|
35104E
90105-10203 New Genuine Part[08.1987 - 02.1988] ST162..4FC |
90105-10203 |
US $3.14 |
||
|
35104E
|
35104E
91642-H0822 New Genuine Part[08.1987 - 02.1988] ST162..4FC |
91642-H0822 |
US $2.48 |
||
|
35104E
|
35104E
35104-32052 Case Sub-Assy, Automatic Transaxle[02.1988 - 08.1989] ST162..4FC |
35104-32052 |
US $1,250.70 |
||
| replacements | |||||
|
35104E
|
35104E
90501-18084 Spring, Compression (For C-1 Accumulator Piston)[02.1988 - 08.1989] ST162..4FC |
90501-18084 |
US $3.64 |
||
|
35104E
|
35104E
35424-20020 Piston, C-1 Accumulator[02.1988 - 08.1989] ST162..4FC |
35424-20020 |
US $12.96 |
||
|
35104E
|
35104E
35603-32030
Spring Sub-Assy, Forward Clutch Return
[02.1988 - 08.1989] ST162..4FC |
35603-32030 |
— | ||
|
35104E
|
35104E
90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)[02.1988 - 08.1989] ST162..4FC |
90301-23194 |
US $5.24 |
||
|
35104E
|
35104E
90501-20118 Spring, Compression (For C-1 Accumulator Piston)[02.1988 - 08.1989] ST162..4FC |
90501-20118 |
US $3.49 |
||
|
35104E
|
35104E
35104-32112 Case Sub-Assy, Automatic Transaxle[02.1988 - 08.1989] ST162..4FC |
35104-32112 |
US $1,244.88 |
||
|
35104E
|
35104E
90105-10203 New Genuine Part[02.1988 - 08.1989] ST162..4FC |
90105-10203 |
US $3.14 |
||
|
35104E
|
35104E
91642-H0822 New Genuine Part[02.1988 - 08.1989] ST162..4FC |
91642-H0822 |
US $2.48 |
||
|
35104E
|
35104E
35104-32053 Case Sub-Assy, Automatic Transaxle[08.1989 - 08.1989] ST162..4FC |
35104-32053 |
US $1,250.70 |
||
| replacements | |||||
|
35104E
|
35104E
35104-32112 Case Sub-Assy, Automatic Transaxle[08.1989 - 08.1989] ST162..4FC |
35104-32112 |
US $1,244.88 |
||
|
35104E
|
35104E
90105-10203 New Genuine Part[08.1989 - 08.1989] ST162..4FC |
90105-10203 |
US $3.14 |
||
|
35104E
|
35104E
91642-H0822 New Genuine Part[08.1989 - 08.1989] ST162..4FC |
91642-H0822 |
US $2.48 |
||
|
35104F
|
35104F
90311-35019 Seal, Oil, No.2(For Transaxle Case)[08.1987 - 08.1989] ST162..4FC |
90311-35019 |
from US $6.40 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[08.1987 - 08.1989] ST162..4FC |
90341-08001 |
from US $1.92 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[08.1987 - 08.1989] ST162..4FC |
90301-06196 |
from US $2.26 |
||
|
35104U
|
35104U
90105-12052 Bolt (For Transaxle Case)[08.1987 - 08.1989] ST162..4FC *12-1.25PX54-24 |
90105-12052 |
US $4.95 |
||
| replacement | |||||
|
35104U
|
35104U
90105-12263 Bolt (For Rear Axle Carrier)[08.1987 - 08.1989] ST162..4FC *12-1.25PX54-24 |
90105-12263 |
US $4.96 |
||
|
35106A
|
35106A
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[08.1987 - 08.1989] ST162..4FC |
90341-18016 |
from US $2.07 |
||
|
35106B
|
35106B
90430-18008 Gasket[08.1987 - 08.1989] ST162..4FC |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
35106B
|
35106B
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 08.1989] ST162..4FC |
90430-T0021 |
US $1.15 |
||
|
35106D
|
35106D
35106-10021 Pan Sub-Assy, Automatic Transaxle Oil[08.1987 - 08.1989] ST162..4FC |
35106-10021 |
US $115.02 |
||
| replacement | |||||
|
35106D
|
35106D
35106-10022 Pan Sub-Assy, Automatic Transaxle Oil[08.1987 - 08.1989] ST162..4FC |
35106-10022 |
US $109.20 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.1987 - 08.1989] ST162..4FC |
90119-06173 |
from US $0.90 |
||
|
35148
|
35148
35148-16010 Gasket (For Automatic Transfer Case)[08.1987 - 08.1989] ST162..4FC |
35148-16010 |
US $8.56 |
||
|
35159
|
35159
35159-32011 Gasket, Brake Drum[08.1987 - 08.1989] ST162..4FC |
35159-32011 |
US $11.21 |
||
|
35168A
|
35168A
35168-32010 Gasket, Automatic Transaxle Oil Pan[08.1987 - 08.1989] ST162..4FC |
35168-32010 |
from US $11.60 |
||
|
35175
|
35175
35175-32010
Cap, Transaxle Case, No.2
[08.1987 - 08.1989] ST162..4FC |
35175-32010 |
— | ||
|
35175A
|
35175A
90301-21002 Ring, O (For Transaxle Case Cap)[08.1987 - 08.1989] ST162..4FC |
90301-21002 |
US $3.35 |
||
|
35179
|
35179
35179-32010 Gasket, Overdrive Brake[08.1987 - 08.1989] ST162..4FC |
35179-32010 |
US $8.91 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1987 - 08.1989] ST162..4FC |
90301-09173 |
from US $2.24 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1987 - 08.1989] ST162..4FC |
35394-30011 |
from US $5.76 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.21 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $2.72 |
||
