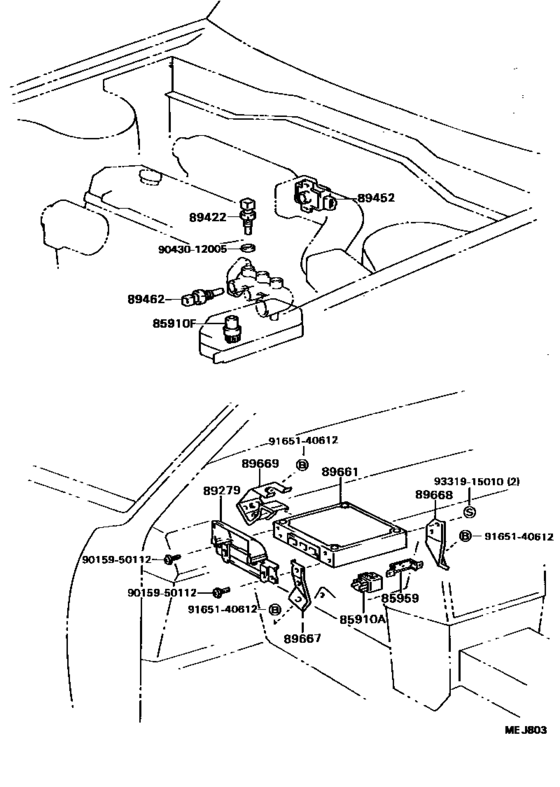

Electronic Fuel Injection System ([08.1987 - ] (8708- )ST162..ST) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- ST162
- grade
- ST
- body
- CP
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1987 - 08.1989] AT160,ST162..TWC |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[08.1987 - 08.1989] AT160,ST162..TWC |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [08.1987 - 08.1989] AT160,ST162..TWC |
909870200483 |
US $53.75 |
||
|
85959
|
85959
85959-20090 Holder, Relay[08.1987 - 08.1989] AT160,ST162..RHD |
85959-20090 |
US $9.61 |
||
|
89279
|
89279
89279-32030
Cover, Engine Control Computer
[08.1987 - 08.1989] AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
89279-32030 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 08.1989] AT160,ST162..TWC |
89422-20010 |
from US $36.78 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1987 - 08.1988] AT160,ST162..TWC |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1987 - 08.1988] AT160,ST162..TWC |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-32020
Sensor, Throttle Position (For E.f.i.)
[08.1987 - 08.1989] ST162..ST |
89452-32020 |
— | ||
|
89462
|
89462
89462-20030 Switch, Start Injector Time[08.1988 - 08.1989] AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
89462-20030 |
US $131.72 |
||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[08.1987 - 08.1988] AT160,ST162..(GT,ST)..(ARL,GEN)..TWC |
89462-30011 |
US $139.12 |
||
|
89661
|
89661
89661-20441 Computer, Engine ControlENGINE CONTROL [08.1987 - 08.1988] ST162..ST |
89661-20441 |
US $1,413.78 |
||
| replacement | |||||
|
89661
|
89661
89661-20443 Computer, Engine Control[08.1987 - 08.1988] ST162..ST |
89661-20443 |
US $1,291.47 |
||
|
89661
|
89661
89661-32320 Computer, Engine ControlENGINE CONTROL [08.1988 - 11.1988] ST162..ST |
89661-32320 |
US $1,306.03 |
||
| replacement | |||||
|
89661
|
89661
89661-32323 Computer, Engine Control[08.1988 - 11.1988] ST162..ST |
89661-32323 |
US $1,292.93 |
||
|
89661
|
89661
89661-32321 Computer, Engine ControlENGINE CONTROL [11.1988 - 08.1989] ST162..ST |
89661-32321 |
US $1,292.93 |
||
| replacement | |||||
|
89661
|
89661
89661-32323 Computer, Engine Control[11.1988 - 08.1989] ST162..ST |
89661-32323 |
US $1,292.93 |
||
|
89667
|
89667
89667-20170 Bracket, Engine Control Computer[08.1987 - 08.1989] AT160,ST162..RHD..(GT,ST) |
89667-20170 |
US $5.24 |
||
|
89668
|
89668
89668-20080 Bracket, Engine Control Computer, No.2[08.1987 - 08.1989] AT160,ST162..RHD |
89668-20080 |
US $5.24 |
||
|
89669
|
89669
89669-20060 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [08.1987 - 08.1989] AT160,ST162..TWC |
89669-20060 |
US $13.54 |
||
|
9015950112
|
9015950112
90159-50112
New Genuine Part
|
90159-50112 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
