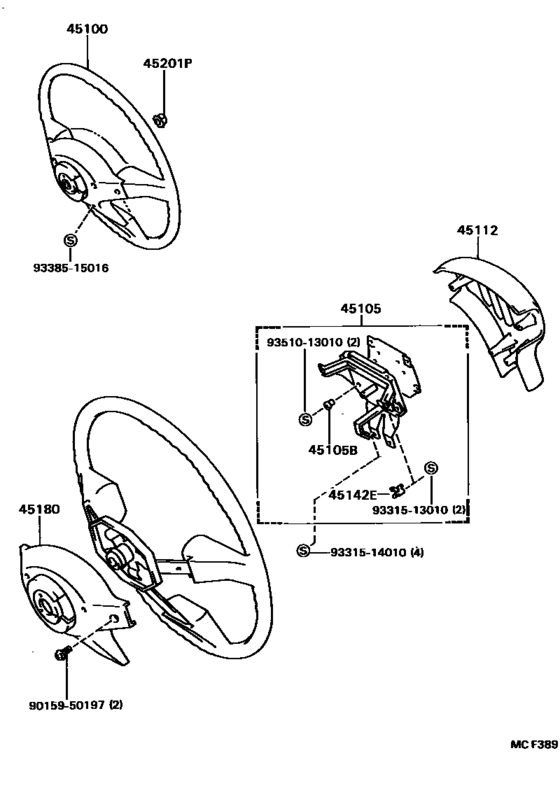

Steering Wheel ([10.1987 - ] (8710- )ST165) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBOAT
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-20520-01
Wheel Assy, Steering
[10.1987 - 08.1989] ST165..USA NEW BLACK,TRIM2# |
45100-20520-01 |
— | ||
|
45100
|
45100
45100-20520-02 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165..USA MAROON,TRIM3# |
45100-20520-02 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-20520-01
Wheel Assy, Steering
[10.1987 - 08.1989] ST165..USA MAROON,TRIM3# |
45100-20520-01 |
— | ||
|
45100
|
45100
45100-20520-04 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165..USA DEEP BLUE,TRIM8# |
45100-20520-04 |
US $380.02 |
||
| replacement | |||||
|
45100
|
45100
45100-20520-01
Wheel Assy, Steering
[10.1987 - 08.1989] ST165..USA DEEP BLUE,TRIM8# |
45100-20520-01 |
— | ||
|
45100
|
45100
45102-20490-01 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165 W(CRUISE CONTROL),NEW BLACK,TRIM2#; ST162..GTS W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),NEW BLACK,TRIM2# |
45102-20490-01 |
US $860.50 |
||
|
45100
|
45100
45102-20490-02 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165 W(CRUISE CONTROL),MAROON,TRIM3#; ST162..GTS W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),MAROON,TRIM3# |
45102-20490-02 |
US $860.50 |
||
| replacement | |||||
|
45100
|
45100
45102-20490-01 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165 W(CRUISE CONTROL),MAROON,TRIM3#; ST162..GTS W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),MAROON,TRIM3# |
45102-20490-01 |
US $860.50 |
||
|
45100
|
45100
45102-20490-04 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165 W(CRUISE CONTROL),DEEP BLUE,TRIM8#; ST162..GTS W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),DEEP BLUE,TRIM8# |
45102-20490-04 |
US $860.50 |
||
| replacement | |||||
|
45100
|
45100
45102-20490-01 Wheel Assy, SteeringSTEERING [10.1987 - 08.1989] ST165 W(CRUISE CONTROL),DEEP BLUE,TRIM8#; ST162..GTS W(CRUISE CONTROL AND 8WAY LEATHER SPORT SEAT),DEEP BLUE,TRIM8# |
45102-20490-01 |
US $860.50 |
||
|
45105
|
45105
45105-20180 Plate Sub-Assy, Horn Button Contact, No.1HORN BUTTON CONTACT, NO.1 [08.1987 - 08.1989] ST16#..USA |
45105-20180 |
US $63.77 |
||
|
45105B
|
45105B
90561-02001 Spacer(For Horn Button Contact Plate)[08.1987 - 08.1989] ST16# |
90561-02001 |
US $7.28 |
||
|
45112
|
45112
45112-20400-01 Pad, Steering WheelSTEERING WHEEL [10.1987 - 08.1989] ST165..USA NEW BLACK,TRIM2# |
45112-20400-01 |
US $82.99 |
||
|
45112
|
45112
45112-20400-02 Pad, Steering WheelSTEERING WHEEL [10.1987 - 08.1989] ST165..USA MAROON,TRIM3# |
45112-20400-02 |
US $82.99 |
||
| replacement | |||||
|
45112
|
45112
45112-20400-01 Pad, Steering WheelSTEERING WHEEL [10.1987 - 08.1989] ST165..USA MAROON,TRIM3# |
45112-20400-01 |
US $82.99 |
||
|
45112
|
45112
45112-20400-04 Pad, Steering WheelSTEERING WHEEL [10.1987 - 08.1989] ST165..USA DEEP BLUE,TRIM8# |
45112-20400-04 |
US $82.99 |
||
| replacement | |||||
|
45112
|
45112
45112-20400-01 Pad, Steering WheelSTEERING WHEEL [10.1987 - 08.1989] ST165..USA DEEP BLUE,TRIM8# |
45112-20400-01 |
US $82.99 |
||
|
45142E
|
45142E
45142-20060 Seat, Horn Button Contact, No.1[08.1987 - 08.1989] ST16# |
45142-20060 |
US $5.39 |
||
|
45180
|
45180
45180-20040-01 Cover Sub-Assy, Steering Wheel[08.1987 - 08.1989] ST16#..GTS,TBO4W,TBOAT NEW BLACK,TRIM2# |
45180-20040-01 |
US $28.25 |
||
|
45180
|
45180
45180-20040-02 Cover Sub-Assy, Steering WheelSTEERING WHEEL [08.1987 - 08.1989] ST16#..GTS,TBO4W,TBOAT MAROON,TRIM3# |
45180-20040-02 |
US $28.25 |
||
| replacement | |||||
|
45180
|
45180
45180-20040-01 Cover Sub-Assy, Steering Wheel[08.1987 - 08.1989] ST16#..GTS,TBO4W,TBOAT MAROON,TRIM3# |
45180-20040-01 |
US $28.25 |
||
|
45180
|
45180
45180-20040-04 Cover Sub-Assy, Steering Wheel[08.1987 - 08.1989] ST16#..GTS,TBO4W,TBOAT DEEP BLUE,TRIM8# |
45180-20040-04 |
US $28.25 |
||
| replacement | |||||
|
45180
|
45180
45180-20040-01 Cover Sub-Assy, Steering Wheel[08.1987 - 08.1989] ST16#..GTS,TBO4W,TBOAT DEEP BLUE,TRIM8# |
45180-20040-01 |
US $28.25 |
||
|
45180
|
45180
45184-20160-01 Cover Sub-Assy, Steering Wheel[08.1987 - 10.1987] ST162..GTS W(CRUISE CONTROL),NEW BLACK,TRIM2# |
45184-20160-01 |
US $26.21 |
||
|
45180
|
45180
45184-20160-02 Cover Sub-Assy, Steering WheelSTEERING WHEEL [08.1987 - 10.1987] ST162..GTS W(CRUISE CONTROL),MAROON,TRIM3# |
45184-20160-02 |
US $26.21 |
||
| replacement | |||||
|
45180
|
45180
45184-20160-01 Cover Sub-Assy, Steering Wheel[08.1987 - 10.1987] ST162..GTS W(CRUISE CONTROL),MAROON,TRIM3# |
45184-20160-01 |
US $26.21 |
||
|
45180
|
45180
45184-20160-04 Cover Sub-Assy, Steering Wheel[08.1987 - 10.1987] ST162..GTS W(CRUISE CONTROL),DEEP BLUE,TRIM8# |
45184-20160-04 |
US $26.21 |
||
| replacement | |||||
|
45180
|
45180
45184-20160-01 Cover Sub-Assy, Steering Wheel[08.1987 - 10.1987] ST162..GTS W(CRUISE CONTROL),DEEP BLUE,TRIM8# |
45184-20160-01 |
US $26.21 |
||
|
45201P
|
45201P
90179-12086 Nut, Steering Wheel Set[08.1987 - 08.1989] ST16# |
90179-12086 |
US $4.80 |
||
|
9015950197
|
9015950197
90159-50197 New Genuine Part |
90159-50197 |
US $1.60 |
||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.44 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9338515016
|
9338515016
93385-15016 New Genuine Part |
93385-15016 |
US $1.28 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
