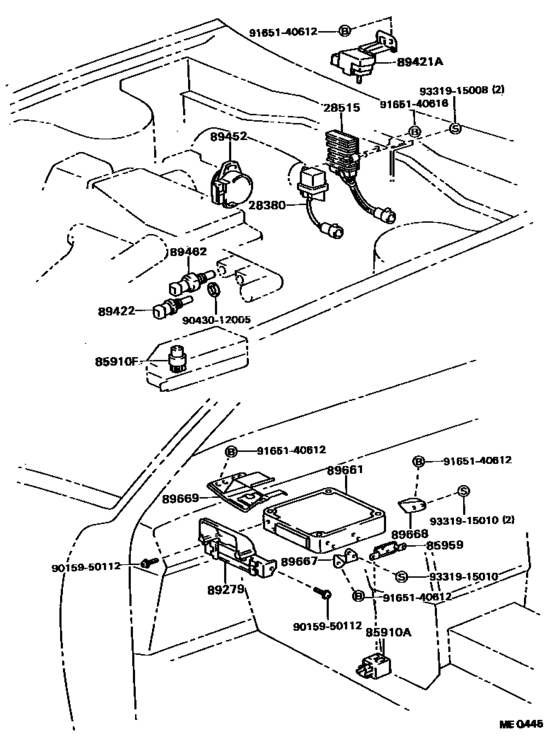

Electronic Fuel Injection System ([10.1987 - ] (8710- )ST165) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- FRG
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
28380-74010 Relay Assy, Fuel Pump[10.1987 - 08.1989] 3SGTE..ST165 |
28380-74010 |
US $84.45 |
||
|
28515
|
28515
28515-74030 Resistor, Solenoid[10.1987 - 08.1989] 3SGTE..ST165 |
28515-74030 |
US $136.86 |
||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1987 - 08.1989] AT160,ST16#..TWC |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[08.1987 - 08.1989] AT160,ST16#..TWC |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [08.1987 - 08.1989] AT160,ST16#..TWC |
909870200483 |
US $53.75 |
||
|
85959
|
85959
85959-20070 Holder, RelayRELAY [10.1987 - 08.1989] ST165..LHD |
85959-20070 |
US $8.01 |
||
|
89279
|
89279
89279-20100 Cover, Engine Control ComputerENGINE CONTROL COMPUTER [10.1987 - 08.1989] ST165..LHD |
89279-20100 |
US $14.56 |
||
|
89421A
|
89421A
89420-20070 Sensor, Turbo PressureTURBO PRESSURE [10.1987 - 08.1989] ST165..LHD |
89420-20070 |
US $126.67 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 08.1989] AT160,ST16#..TWC |
89422-20010 |
from US $36.78 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[08.1987 - 08.1988] AT160,ST16#..TWC |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[08.1987 - 08.1988] AT160,ST16#..TWC |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-20050 Sensor, Throttle Position (For E.f.i.)[08.1987 - 08.1989] ST16# |
89452-20050 |
US $178.21 |
||
|
89462
|
89462
89462-20010
Switch, Start Injector Time
[08.1987 - 08.1988] ST16#..FRG |
89462-20010 |
— | ||
|
89462
|
89462
89462-20040 Switch, Start Injector Time[08.1988 - 08.1989] ST16#..FRG |
89462-20040 |
from US $131.72 |
||
|
89661
|
89661
89661-20370 Computer, Engine ControlENGINE CONTROL [10.1987 - 08.1989] ST165 |
89661-20370 |
US $1,805.44 |
||
|
89667
|
89667
89667-20120 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [10.1987 - 08.1989] ST165..LHD |
89667-20120 |
US $5.24 |
||
|
89668
|
89668
89668-20110 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [10.1987 - 02.1988] ST165..LHD |
89668-20110 |
US $5.24 |
||
|
89669
|
89669
89669-20070 Bracket, Engine Control Computer, No.3[10.1987 - 08.1989] ST165 |
89669-20070 |
US $11.65 |
||
|
9015950112
|
9015950112
90159-50112
New Genuine Part
|
90159-50112 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
