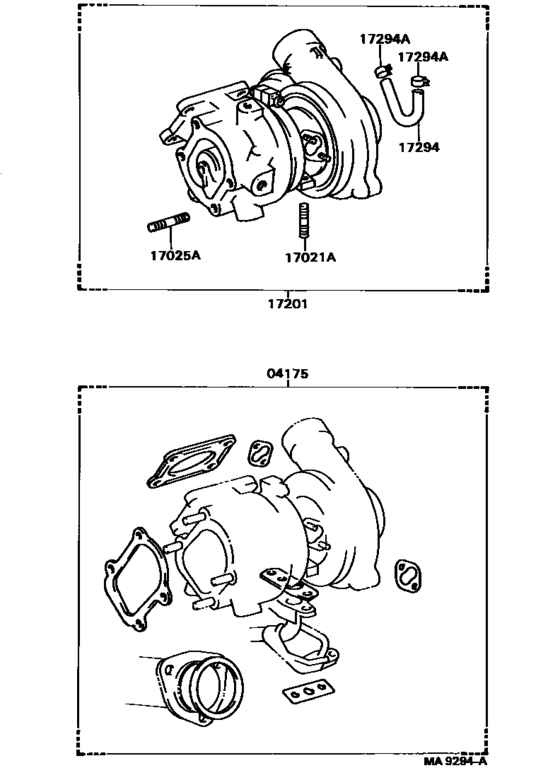

Manifold ([10.1987 - ] (8710- )3SGTE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- FRG
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-74010
Gasket Kit, Turbocharger
[10.1987 - 08.1989] 3SGTE..ST165 |
04175-74010 |
— | ||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[10.1987 - 08.1989] 3SGTE..ST165 |
90116-08158 |
from US $1.76 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[10.1987 - 08.1989] 3SGTE..ST165 |
90116-10125 |
from US $1.48 |
||
|
17201
|
17201
17201-74010 Turbocharger Sub-Assy[10.1987 - 10.1989] 3SGTE..ST165 |
17201-74010 |
US $2,824.64 |
||
|
17294
|
17294
17294-28010 Hose, Actuator[10.1987 - 08.1989] 3SGTE..ST165 |
17294-28010 |
US $16.07 |
||
|
17294A
|
17294A
96132-30600
Clip(For Actuator Hose)
[10.1987 - 12.1988] 3SGTE..ST165 |
96132-30600 |
— | ||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[10.1987 - 12.1988] 3SGTE..ST165 |
96132-51100 |
from US $1.74 |
||
|
17294A
|
17294A
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[12.1988 - 08.1989] 3SGTE..ST165 |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[12.1988 - 08.1989] 3SGTE..ST165 |
96132-51100 |
from US $1.74 |
||
