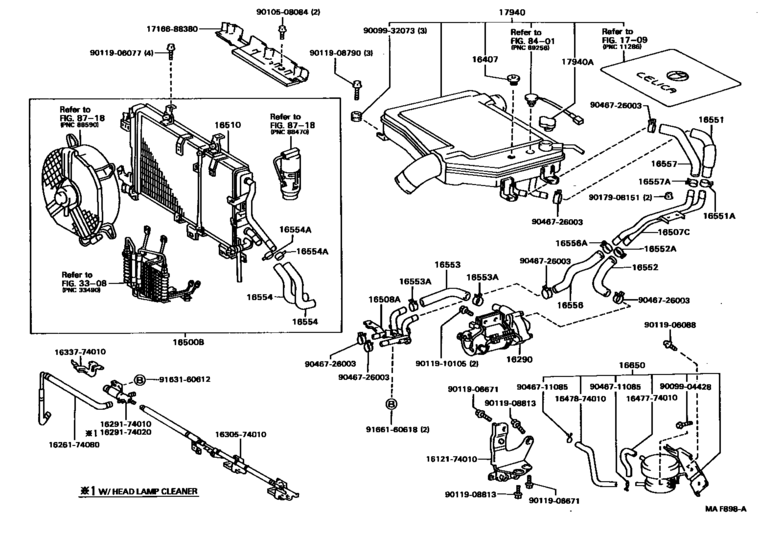

Intercooler & Sub Radiator ([08.1991 - 02.1992] (9108-9202)3SGTE) Diagram Toyota CELICA
- Year
- 1991 - 1992
- Sales region
- Europe
- Frame
- ST185
- grade
- TB4WA
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- G
- From
- 08.1991
- To
- 02.1992
- Body Shape
- WIB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16290
|
16290
16290-74020
Pump Assy, Water W/motor & Bracket
[08.1991 - 02.1992] 3SGTE..ST185 |
16290-74020 |
— | ||
|
16407
|
16407
16407-74040
Cock Sub-Assy, Radiator Drain
[08.1991 - 02.1992] 3SGTE..ST185 |
16407-74040 |
— | ||
|
16500B
|
16500B
16500-74030 Sub-Radiator Kit[08.1991 - 02.1992] 3SGTE..ST185 |
16500-74030 |
US $2,256.80 |
||
| replacements | |||||
|
16500B
|
16500B
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16500B
|
16500B
16510-74020 Sub-Radiator Assy[08.1991 - 02.1992] 3SGTE..ST185 |
16510-74020 |
US $643.55 |
||
|
16500B
|
16500B
90119-06701 New Genuine Part[08.1991 - 02.1992] 3SGTE..ST185 |
90119-06701 |
US $2.18 |
||
|
16500B
|
16500B
16554-74020
Hose, Sub-Radiator, No.4
[08.1991 - 02.1992] 3SGTE..ST185 |
16554-74020 |
— | ||
|
16500B
|
16500B
33490-20031 Cooler Assy, Manual Transmission Oil[08.1991 - 02.1992] 3SGTE..ST185 |
33490-20031 |
US $812.45 |
||
|
16500B
|
16500B
90091-20609 BOLT[08.1991 - 02.1992] 3SGTE..ST185 |
90091-20609 |
US $0.44 |
||
|
16500B
|
16500B
16500-74040 Sub-Radiator Kit[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
16500-74040 |
US $3,086.72 |
||
| replacements | |||||
|
16500B
|
16500B
16510-74020 Sub-Radiator Assy[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
16510-74020 |
US $643.55 |
||
|
16500B
|
16500B
90119-06701 New Genuine Part[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
90119-06701 |
US $2.18 |
||
|
16500B
|
16500B
88471-16050 Receiver & Dryer Assy, Cooler[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
88471-16050 |
from US $51.98 |
||
|
16500B
|
16500B
16554-74020
Hose, Sub-Radiator, No.4
[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
16554-74020 |
— | ||
|
16500B
|
16500B
33490-20031 Cooler Assy, Manual Transmission Oil[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
33490-20031 |
US $812.45 |
||
|
16500B
|
16500B
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
90467-26007 |
US $4.32 |
||
|
16500B
|
16500B
88590-20250
Blower Assy, W/shroud
[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
88590-20250 |
— | ||
|
16500B
|
16500B
90091-20609 BOLT[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
90091-20609 |
US $0.44 |
||
|
16500B
|
16500B
88473-20110
Holder, Receiver
[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
88473-20110 |
— | ||
|
16500B
|
16500B
88716-2D050 Pipe, Cooler Refrigerant Liquid, B[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
88716-2D050 |
US $59.40 |
||
|
16500B
|
16500B
93385-56025 New Genuine Part[08.1991 - 02.1992] 3SGTE..ST185 W(AIR CONDITIONER) |
93385-56025 |
US $0.44 |
||
|
16507C
|
16507C
16507-74020
Pipe Sub-Assy, Sub-Radiator, No.1
[08.1991 - 02.1992] 3SGTE..ST185 |
16507-74020 |
— | ||
|
16508A
|
16508A
16508-74020
Pipe Sub-Assy, Sub-Radiator, No.2
[08.1991 - 02.1992] 3SGTE..ST185 |
16508-74020 |
— | ||
|
16510
|
16510
16510-74020 Sub-Radiator Assy[08.1991 - 02.1992] 3SGTE..ST185 |
16510-74020 |
US $643.55 |
||
|
16551
|
16551
16551-74020
Hose, Sub-Radiator, No.1
[08.1991 - 02.1992] 3SGTE..ST185 |
16551-74020 |
— | ||
|
16551A
|
16551A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16551A
|
16551A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16552
|
16552
16552-74020 Hose, Sub-Radiator, No.2[08.1991 - 02.1992] 3SGTE..ST185 |
16552-74020 |
US $17.33 |
||
|
16552A
|
16552A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16552A
|
16552A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16553
|
16553
16553-74020
Hose, Sub-Radiator, No.3
[08.1991 - 02.1992] 3SGTE..ST185 |
16553-74020 |
— | ||
|
16553A
|
16553A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16553A
|
16553A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16554
|
16554
16554-74020
Hose, Sub-Radiator, No.4
[08.1991 - 02.1992] 3SGTE..ST185 |
16554-74020 |
— | ||
|
16554A
|
16554A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16554A
|
16554A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16556
|
16556
16556-74020
Hose, Sub-Radiator, No.6
[08.1991 - 02.1992] 3SGTE..ST185 |
16556-74020 |
— | ||
|
16556A
|
16556A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16556A
|
16556A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16557
|
16557
16557-74020
Hose, Sub-Radiator, No.7
[08.1991 - 02.1992] 3SGTE..ST185 |
16557-74020 |
— | ||
|
16557A
|
16557A
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26003 |
— | ||
| replacement | |||||
|
16557A
|
16557A
90467-26007 Clip(For Ventilation Hose No.2)[08.1991 - 02.1992] 3SGTE..ST185 |
90467-26007 |
US $4.32 |
||
|
16650
|
16650
16650-74010
Tank Assy, Reserve(For Intercooler)
[08.1991 - 02.1992] 3SGTE..ST185 |
16650-74010 |
— | ||
|
17940
|
17940
17940-74060
Intercooler Assy
[08.1991 - 02.1992] 3SGTE..ST185 |
17940-74060 |
— | ||
|
17940A
|
17940A
16401-74010
Cap Sub-Assy, Intercooler
[08.1991 - 02.1992] 3SGTE..ST185 |
16401-74010 |
— | ||
|
1612174010
|
1612174010
16121-74010
Stay, Water Pump
|
16121-74010 |
— | ||
|
1626174080
|
1626174080
16261-74080 Hose, Water By-pass |
16261-74080 |
US $21.55 |
||
|
1629174010
|
1629174010
16291-74010 Joint, Water Hose |
16291-74010 |
US $27.66 |
||
|
1629174020
|
1629174020
16291-74020 Joint, Water Hose |
16291-74020 |
US $27.66 |
||
| replacement | |||||
|
1629174020
|
1629174020
16291-74010 Joint, Water Hose |
16291-74010 |
US $27.66 |
||
|
1630574010
|
1630574010
16305-74010 Outlet Sub-assy, Water By-pass |
16305-74010 |
US $38.58 |
||
|
1633774010
|
1633774010
16337-74010 Connector, Water Outlet Housing, No.3 |
16337-74010 |
US $13.40 |
||
|
1647774010
|
1647774010
16477-74010
Pipe(for Radiator Reserve Tank)
|
16477-74010 |
— | ||
|
1647874010
|
1647874010
16478-74010
New Genuine Part
|
16478-74010 |
— | ||
|
1716688380
|
1716688380
17166-88380
Insulator, Exhaust Manifold Heat,no.4
|
17166-88380 |
— | ||
|
9009904428
|
9009904428
90099-04428
Hose Or Pipe(For Radiator Reserve Tank)
|
90099-04428 |
— | ||
|
9009932073
|
9009932073
90099-32073
Grommet
|
90099-32073 |
— | ||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.28 |
||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9011906671
|
9011906671
90119-06671
New Genuine Part
|
90119-06671 |
— | ||
|
9011908790
|
9011908790
90119-08790 New Genuine Part |
90119-08790 |
US $10.13 |
||
|
9011908813
|
9011908813
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.56 |
||
|
9011910105
|
9011910105
90119-10105
New Genuine Part
|
90119-10105 |
— | ||
|
9017908151
|
9017908151
90179-08151 NUT |
90179-08151 |
US $1.12 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.78 |
||
|
9046726003
|
9046726003
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
|
90467-26003 |
— | ||
| replacement | |||||
|
9046726003
|
9046726003
90467-26007 Clip(For Ventilation Hose No.2) |
90467-26007 |
US $4.32 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9166160618
|
9166160618
91661-60618 Bolt(For Oil Receiver Pipe) |
91661-60618 |
US $1.75 |
||
| replacement | |||||
|
9166160618
|
9166160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
