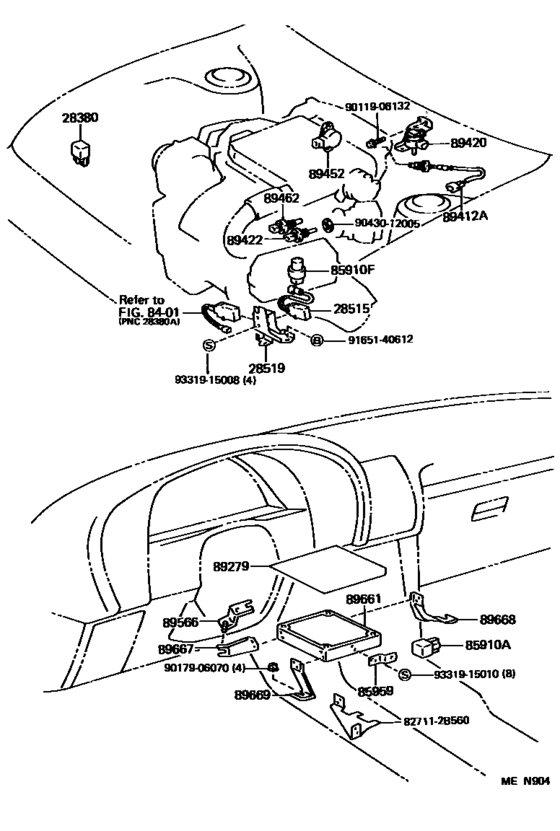

Electronic Fuel Injection System ([10.1989 - ] (8910- )ST185) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- ST185
- grade
- TBOAT
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 10.1989
- To
- 09.1993
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
28380-30010
Relay Assy, Fuel Pump
[10.1989 - 09.1993] 3SGTE..ST185 |
28380-30010 |
— | ||
|
28515
|
28515
28515-74070 Resistor, Solenoid[10.1989 - 08.1991] 3SGTE..ST185 |
28515-74070 |
US $138.32 |
||
|
28515
|
28515
28515-74090
Resistor, Solenoid
[08.1991 - 09.1993] 3SGTE..ST185 |
28515-74090 |
— | ||
|
28519
|
28519
28519-74050 Bracket, Solenoid Resistor[10.1989 - 08.1991] 3SGTE..ST185 |
28519-74050 |
US $10.92 |
||
|
28519
|
28519
28519-74070 Bracket, Solenoid Resistor[08.1991 - 09.1993] 3SGTE..ST185 |
28519-74070 |
US $18.78 |
||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[10.1989 - 09.1993] ST185 |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[09.1989 - 09.1993] AT180,ST18# |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [09.1989 - 09.1993] AT180,ST18# |
909870200483 |
US $53.75 |
||
|
85959
|
85959
85959-20150 Holder, RelayRELAY [09.1989 - 09.1993] AT180,ST18# |
85959-20150 |
US $5.24 |
||
|
89279
|
89279
89279-12020 Cover, Engine Control Computer[09.1989 - 09.1993] AT180,ST18# |
89279-12020 |
US $4.22 |
||
|
89412A
|
89412A
89412-12010 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [09.1989 - 08.1991] AT180,ST18#..USA CALIFORNIA SPEC |
89412-12010 |
US $151.20 |
||
|
89420
|
89420
89420-20140
Sensor Assy, Vacuum
[10.1989 - 09.1993] ST185 |
89420-20140 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[09.1989 - 08.1991] AT180,ST18# |
89422-20010 |
from US $36.78 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1991 - 09.1991] ST18#..CP,LB |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-12040 Sensor, Throttle Position (For E.f.i.)[09.1989 - 08.1991] ST185;ST184..ATM..GTS |
89452-12040 |
from US $135.14 |
||
|
89462
|
89462
89462-20040 Switch, Start Injector Time[10.1989 - 09.1993] ST185 |
89462-20040 |
from US $131.72 |
||
|
89566
|
89566
89566-20010 Bracket, Fuel Injection Computer[09.1989 - 09.1993] AT180,ST18# |
89566-20010 |
US $6.99 |
||
|
89661
|
89661
89661-20760 Computer, Engine ControlENGINE CONTROL [10.1989 - 03.1990] ST185 |
89661-20760 |
US $1,470.56 |
||
| replacement | |||||
|
89661
|
89661
89661-20761 Computer, Engine ControlENGINE CONTROL [10.1989 - 03.1990] ST185 |
89661-20761 |
US $1,470.56 |
||
|
89661
|
89661
89661-20761 Computer, Engine ControlENGINE CONTROL [03.1990 - 08.1991] ST185 |
89661-20761 |
US $1,470.56 |
||
|
89661
|
89661
89661-2B290 Computer, Engine ControlENGINE CONTROL [08.1991 - 09.1993] ST185 |
89661-2B290 |
US $1,470.56 |
||
|
89667
|
89667
89667-20210 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [09.1989 - 09.1993] AT180,ST18# |
89667-20210 |
US $5.82 |
||
|
89668
|
89668
89668-20180 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [09.1989 - 09.1993] AT180,ST18# |
89668-20180 |
US $10.77 |
||
|
89669
|
89669
89669-20130 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [09.1989 - 09.1993] AT180,ST18# |
89669-20130 |
US $8.30 |
||
|
827112B560
|
827112B560
82711-2B560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B560 |
US $13.54 |
||
|
9011906132
|
9011906132
90119-06132 New Genuine Part |
90119-06132 |
US $2.48 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.70 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
