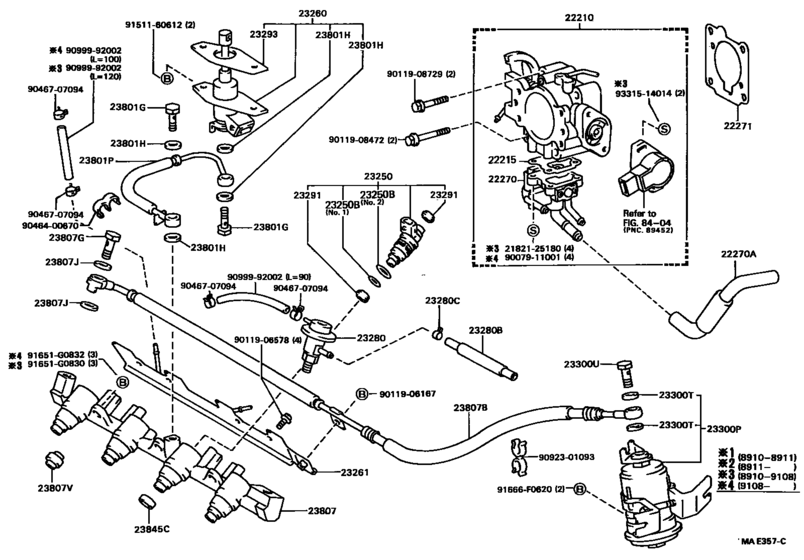

Fuel Injection System ([10.1989 - ] (8910- )3SGTE) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- Europe
- Frame
- ST185
- grade
- TBOAT
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 10.1989
- To
- 09.1993
- Body Shape
- WIB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-74490 Body Assy, ThrottleTHROTTLE [10.1989 - 08.1991] 3SGTE..ST185 |
22210-74490 |
US $1,218.67 |
||
|
22210
|
22210
22210-74670 Body Assy, ThrottleTHROTTLE [08.1991 - 09.1993] 3SGTE..ST185 |
22210-74670 |
US $1,218.67 |
||
|
22215
|
22215
22215-74380 Gasket, Throttle Body Cover[10.1989 - 09.1993] 3SGTE..ST185 |
22215-74380 |
from US $3.78 |
||
|
22270
|
22270
22270-74080
Valve Assy, Idle Speed Control(For Thlottle Body)
[10.1989 - 09.1993] 3SGTE..ST185 |
22270-74080 |
— | ||
|
22270A
|
22270A
17341-88381
Hose, Air, No.1(For Idle Speed Control Valve)
[10.1989 - 09.1993] 3SGTE..ST185 |
17341-88381 |
— | ||
|
22271
|
22271
22271-88381 Gasket, Throttle Body[10.1989 - 09.1993] 3SGTE..ST185 |
22271-88381 |
US $8.32 |
||
|
23250
|
23250
23209-79015
Injector Assy, Fuel
[10.1989 - 09.1993] 3SGTE..ST185 |
23209-79015 |
— | ||
|
23250B
|
23250B
90301-14006 Ring, O(For Fuel Injector)[10.1989 - 09.1993] 3SGTE..ST185 NO.1 |
90301-14006 |
from US $2.91 |
||
|
23250B
|
23250B
90301-17007 Ring, O(For Fuel Injector)[10.1989 - 09.1993] 3SGTE..ST185 NO.2 |
90301-17007 |
from US $3.06 |
||
|
23260
|
23260
23260-79175
Injector Assy, Cold Start Fuel
[10.1989 - 09.1993] 3SGTE..ST185 |
23260-79175 |
— | ||
|
23261
|
23261
23261-88380 Cover, Injector[10.1989 - 09.1993] 3SGTE..ST185 |
23261-88380 |
US $23.88 |
||
|
23280
|
23280
23280-74070
Regulator Assy, Fuel Pressure
[10.1989 - 09.1993] 3SGTE..ST185 |
23280-74070 |
— | ||
|
23280B
|
23280B
90447-12119
Hose, Fuel Pressure Regulator Return
[10.1989 - 09.1993] 3SGTE..ST185 L=380 |
90447-12119 |
— | ||
|
23280C
|
23280C
90467-11065 Clip(For Fuel Hose No.2)[10.1989 - 09.1993] 3SGTE..ST185 |
90467-11065 |
US $2.56 |
||
|
23291
|
23291
23291-75010 Insulator, Injector Vibration[10.1989 - 09.1993] 3SGTE..ST185 |
23291-75010 |
from US $2.56 |
||
|
23293
|
23293
23293-88381
Gasket, Cold Start Injector
[10.1989 - 09.1993] 3SGTE..ST185 |
23293-88381 |
— | ||
|
23300P
|
23300P
23300-79235 Filter, Fuel(For Efi)[09.1989 - 09.1993] 3SGTE,5SFE..ST18# |
23300-79235 |
US $80.72 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[09.1989 - 08.1991] 4AFE..AT180; 3SGTE,5SFE..ST18# |
90430-12005 |
from US $0.76 |
||
|
23300T
|
23300T
90430-12026 Gasket[08.1991 - 09.1993] 4AFE..AT180; 3SGTE,5SFE..ST18# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1989 - 09.1993] 4AFE..AT180; 3SGTE,5SFE..ST18# |
90401-12097 |
from US $3.08 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[09.1989 - 08.1990] 4AFE..AT180; 3SGTE..ST185 |
90401-08003 |
US $2.24 |
||
|
23801H
|
23801H
90430-08005 Gasket[09.1989 - 08.1990] 4AFE..AT180; 3SGTE..ST185 |
90430-08005 |
US $2.24 |
||
|
23801H
|
23801H
90430-08012 Gasket[06.1991 - 09.1993] 3SGTE..ST185 |
90430-08012 |
US $1.92 |
||
|
23801P
|
23801P
23801-88381
Pipe Sub-Assy, Fuel, No.1
[10.1989 - 09.1993] 3SGTE..ST185 |
23801-88381 |
— | ||
|
23807
|
23807
23814-88382 Pipe Sub-Assy, Fuel Delivery[10.1989 - 09.1993] 3SGTE..ST185 |
23814-88382 |
US $177.63 |
||
|
23807B
|
23807B
90923-01365
Hose, Fuel Delivery Pipe
[10.1989 - 09.1993] 3SGTE..ST185 |
90923-01365 |
— | ||
|
23807G
|
23807G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[10.1989 - 09.1993] 3SGTE..ST185 |
90401-12097 |
from US $3.08 |
||
|
23807J
|
23807J
90430-12005 Gasket(For Water Hole)[10.1989 - 06.1991] 3SGTE..ST185 |
90430-12005 |
from US $0.76 |
||
|
23807J
|
23807J
90430-12026 Gasket[06.1991 - 09.1991] 3SGTE..ST185 |
90430-12026 |
from US $0.88 |
||
|
23807V
|
23807V
90561-08032 Spacer, No.1(For Delivery Pipe)[10.1989 - 09.1993] 3SGTE..ST185 |
90561-08032 |
US $2.08 |
||
|
23845C
|
23845C
23845-88380 Insulator, Fuel Pipe[10.1989 - 09.1993] 3SGTE..ST185 |
23845-88380 |
from US $2.72 |
||
|
91651G0830
|
91651G0830
91651-G0830
New Genuine Part
|
91651-G0830 |
— | ||
|
91651G0832
|
91651G0832
91651-G0832 New Genuine Part |
91651-G0832 |
US $2.33 |
||
|
91666F0620
|
91666F0620
91666-F0620 New Genuine Part |
91666-F0620 |
US $1.60 |
||
| replacement | |||||
|
91666F0620
|
91666F0620
91661-G0620
New Genuine Part
|
91661-G0620 |
— | ||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9011906578
|
9011906578
90119-06578 Bolt(For Transaxle Case Receiver) |
90119-06578 |
US $1.60 |
||
| replacement | |||||
|
9011906578
|
9011906578
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
|
9011908472
|
9011908472
90119-08472
Bolt(For Clutch Master Cylinder Setting)
|
90119-08472 |
— | ||
| replacement | |||||
|
9011908472
|
9011908472
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.56 |
||
|
9011908729
|
9011908729
90119-08729
Bolt (for Transaxle Housing & Transaxle Case Setting)
|
90119-08729 |
— | ||
| replacement | |||||
|
9011908729
|
9011908729
90105-08233 Bolt (For Transaxle Housing & Transaxle Case Setting) |
90105-08233 |
US $0.87 |
||
|
9046400670
|
9046400670
90464-00670
New Genuine Part
|
90464-00670 |
— | ||
|
9046707094
|
9046707094
90467-07094 Clip, Hose Fuel(For Injection Pump) |
90467-07094 |
US $1.92 |
||
|
9092301093
|
9092301093
90923-01093
New Genuine Part
|
90923-01093 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
