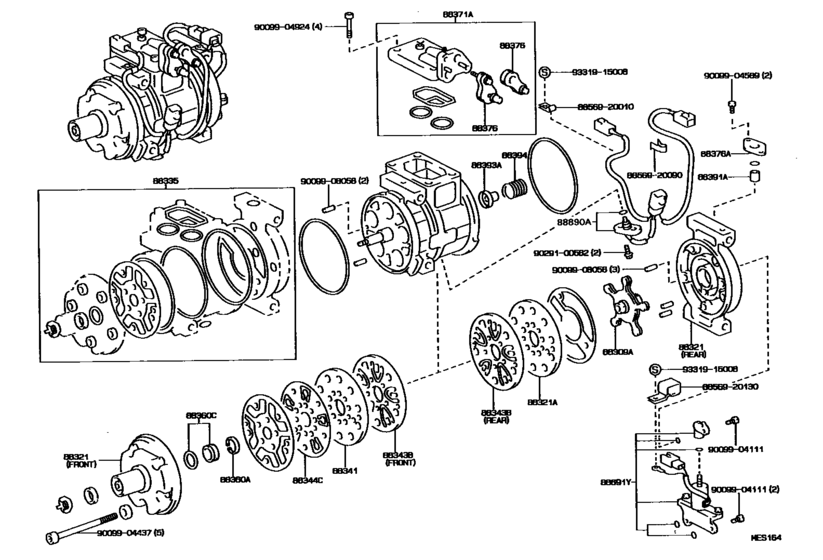

Heating & Air Conditioning - Compressor ([08.1990 - ] (9008- )ST185) Diagram Toyota CELICA
- Year
- 1991 - 1992
- Sales region
- General
- Frame
- ST185
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1991
- To
- 02.1992
- Body Shape
- WIB
- Driver's Position
- RHD
- Fuel Induction
- TB4WA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88309A
|
88309A
88309-20010
Pump Sub-Assy, Compressor
[10.1989 - 11.1993] ST184,185 |
88309-20010 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[08.1990 - 11.1993] ST182,185 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88322-20050
Head, Cooler Compressor Cylinder
[08.1990 - 11.1993] ST185 REAR |
88322-20050 |
— | ||
|
88321A
|
88321A
88342-20030
Plate Sub-Assy, Valve
[08.1990 - 11.1993] ST185 |
88342-20030 |
— | ||
|
88335
|
88335
88335-32020
Gasket Kit, Overhaul
[10.1989 - 11.1993] ST184,185 |
88335-32020 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B040
Gasket Kit, Overhaul
[10.1989 - 11.1993] ST184,185 |
88335-2B040 |
— | ||
|
88341
|
88341
88341-22010
Plate Sub-Assy, Valve
[08.1990 - 11.1993] ST185..TBO4W FRONT; ST182,185 FRONT |
88341-22010 |
— | ||
|
88341
|
88341
88342-20020
Plate, Front Valve
[08.1991 - 11.1993] ST185 REAR |
88342-20020 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[10.1989 - 11.1993] ST184,185 FRONT |
88343-14020 |
— | ||
|
88343B
|
88343B
88343-32010
Reed, Suction Valve
[10.1989 - 11.1993] ST184,185 REAR |
88343-32010 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[08.1990 - 11.1993] ST185 |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[10.1989 - 11.1993] AT180,ST18# |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-14030
Seal Assy, Shaft
[10.1989 - 11.1993] AT180,ST18# |
88360-14030 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[10.1989 - 11.1993] AT180,ST18# |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-20290
Valve, Suction
[10.1989 - 11.1993] ST184,185 |
88371-20290 |
— | ||
|
88376
|
88376
88376-17020
Cap, Blind
[10.1989 - 11.1993] AT180,ST18# SUCTION |
88376-17020 |
— | ||
|
88376
|
88376
88376-22020
Cap, Blind
[10.1989 - 11.1993] AT180,ST18# DISCHARGE |
88376-22020 |
— | ||
|
88376A
|
88376A
88376-32010
Cap, Compressor
[10.1989 - 11.1993] ST184,185 |
88376-32010 |
— | ||
|
88391A
|
88391A
88391-32010 Valve, FloatFLOAT [10.1989 - 11.1993] ST184,185 |
88391-32010 |
US $8.88 |
||
|
88393A
|
88393A
88393-32010
Plate, Stopper
[10.1989 - 11.1993] ST184,185 |
88393-32010 |
— | ||
|
88394
|
88394
88394-32010
Spring, Compressor
[10.1989 - 11.1993] ST184,185 |
88394-32010 |
— | ||
|
88691Y
|
88691Y
88691-20010
Valve, Magnet
[10.1989 - 11.1993] ST184,185 |
88691-20010 |
— | ||
|
88890A
|
88890A
88336-20130
Pick Up, Assy
[10.1989 - 11.1993] ST184,185 |
88336-20130 |
— | ||
|
8856920010
|
8856920010
88569-20010
Clamp (for Cooler Relay)
|
88569-20010 |
— | ||
|
8856920090
|
8856920090
88569-20090
Clamp (for Cooler Relay)
|
88569-20090 |
— | ||
|
8856920130
|
8856920130
88569-20130
Clamp (for Cooler Relay)
|
88569-20130 |
— | ||
|
9009904111
|
9009904111
90099-04111
New Genuine Part
|
90099-04111 |
— | ||
|
9009904437
|
9009904437
90099-04437 Bolt, Compressor, No.1COMPRESSOR, NO.1 |
90099-04437 |
US $2.48 |
||
|
9009904589
|
9009904589
90099-04589
New Genuine Part
|
90099-04589 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9029100582
|
9029100582
90291-00582
New Genuine Part
|
90291-00582 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
