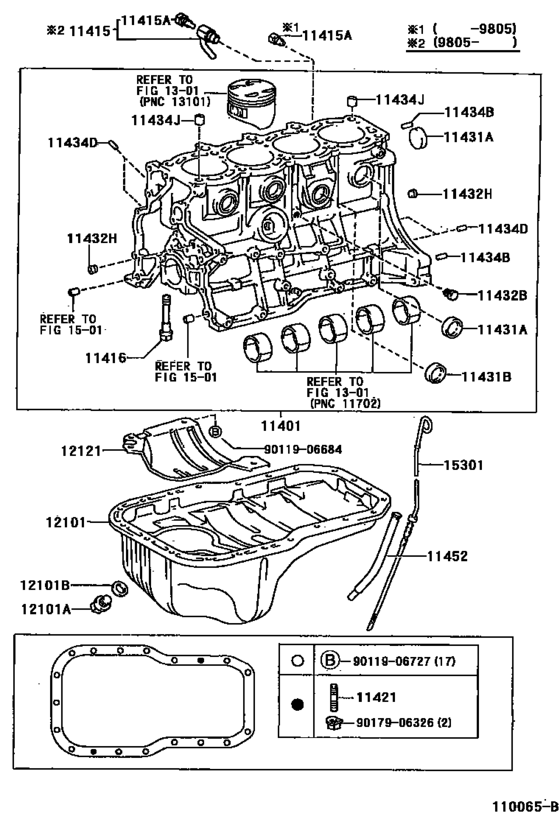

Cylinder Block ([09.1993 - ] (9309- )3SFE) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- ST202
- grade
- SS1
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- From
- 09.1993
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79525 Block Sub-Assy, Cylinder[09.1993 - 08.1995] 3SFE..ST202,203 |
11401-79525 |
US $2,475.20 |
||
| replacement | |||||
|
11401
|
11401
11401-79526 Block Sub-Assy, Cylinder[09.1993 - 08.1995] 3SFE..ST202,203 |
11401-79526 |
US $2,475.20 |
||
|
11401
|
11401
11401-79526 Block Sub-Assy, Cylinder[08.1995 - 06.1996] 3SFE..ST202,203 |
11401-79526 |
US $2,475.20 |
||
|
11401
|
11401
11401-79805 Block Sub-Assy, Cylinder[06.1996 -] 3SFE..ST202,203 |
11401-79805 |
US $3,086.72 |
||
|
11415
|
11415
90910-09107 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1998 -] 3SFE..ST202 |
90910-09107 |
US $9.76 |
||
|
11415A
|
11415A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1993 - 05.1998] 3SFE,3SG#..ST20# |
90345-52001 |
from US $3.68 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[05.1998 -] 3SFE..ST202 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90105-10028 Bolt(For Crankshaft Bearing Cap Set)[09.1993 -] 3SFE,3SG#..ST20# |
90105-10028 |
US $3.84 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[09.1993 - 09.1997] 3SFE..ST202,203 |
90116-06022 |
from US $1.95 |
||
|
11421
|
11421
92122-60610 Bolt, Stud(For Oil Pan)[09.1997 -] 3SFE..ST202,203 |
92122-60610 |
US $2.08 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[09.1993 -] 3SFE,3SG#..ST20# |
96411-43500 |
from US $3.88 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[09.1993 -] 3SFE,3SG#..ST20# |
96411-44000 |
from US $4.35 |
||
|
11432B
|
11432B
90344-52003 Plug, W/head Taper Screw, No.1[09.1993 - 12.1996] 3SFE..ST202,203 |
90344-52003 |
US $1.40 |
||
|
11432B
|
11432B
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1996 -] 3SFE..ST202,203 |
90345-52001 |
from US $3.68 |
||
|
11432H
|
11432H
90344-53006 Plug, Tight, No.1(For Timing Gear Cover)[09.1993 -] 3SFE..ST202,203 |
90344-53006 |
from US $2.08 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[09.1993 -] 3SFE,3SG#..ST20# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[09.1993 -] 3SFE..ST202,203 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[09.1993 -] 3SFE,3SG#..ST20# |
90253-13017 |
from US $1.40 |
||
|
11452
|
11452
11452-74030 Guide, Oil Level Gage[09.1993 - 04.1994] 3SFE..ST202,203 |
11452-74030 |
US $17.33 |
||
| replacement | |||||
|
11452
|
11452
11452-74031
Guide, Oil Level Gage
[09.1993 - 04.1994] 3SFE..ST202,203 |
11452-74031 |
— | ||
|
11452
|
11452
11452-74031
Guide, Oil Level Gage
[04.1994 -] 3SFE..ST202,203 |
11452-74031 |
— | ||
|
12101
|
12101
12101-74050 Pan Sub-Assy, Oil[09.1993 - 08.1998] 3SFE..ST202,203 |
12101-74050 |
US $403.31 |
||
|
12101
|
12101
12101-74150 Pan Sub-Assy, Oil[08.1998 -] 3SFE..ST202 |
12101-74150 |
US $225.68 |
||
| replacements | |||||
|
12101
|
12101
12101-74160 Pan Sub-Assy, OilOIL [08.1998 -] 3SFE..ST202 |
12101-74160 |
US $225.68 |
||
|
12101
|
12101
12129-54010 Plug, Oil Pan[08.1998 -] 3SFE..ST202 |
12129-54010 |
US $18.39 |
||
|
12101
|
12101
91651-60614 Bolt[08.1998 -] 3SFE..ST202 |
91651-60614 |
US $1.12 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[09.1993 -] 3SFE,3SG#..ST20# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.1993 -] 3SFE,3SG#..ST20# |
90341-12012 |
from US $2.56 |
||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[09.1993 - 12.1993] 3SFE..ST20# |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[09.1993 - 12.1993] 3SFE..ST20# |
90430-12031 |
from US $0.88 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[12.1993 -] 3SFE,3SG#..ST20# |
90430-12031 |
from US $0.88 |
||
|
12121
|
12121
12123-74040 Plate, Oil Pan Baffle, No.1[09.1993 -] 3SFE..ST202,203 |
12123-74040 |
US $37.42 |
||
|
15301
|
15301
15301-74010 Gage Sub-Assy, Oil Level[09.1993 -] 3SFE..ST202,203 |
15301-74010 |
from US $11.36 |
||
|
9011906684
|
9011906684
90119-06684 New Genuine Part |
90119-06684 |
US $0.96 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
