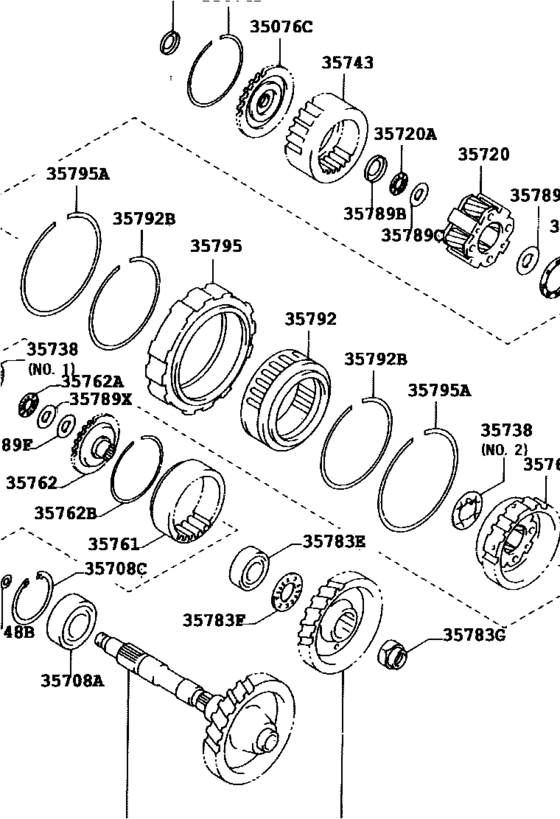

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([12.1997 - 08.1999] A241E (9712-9908)ATM..CV,SS2,SS3) Diagram Toyota CELICA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- ST202
- grade
- SS3
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 08.1995
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35076-32020 Flange Sub-Assy, Front Planetary Ring Gear[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35076-32020 |
US $70.47 |
||
|
35076C
|
35076C
35076-32030 Flange Sub-Assy, Front Planetary Ring Gear[09.1993 - 12.1997] ST202..ATM..(CV,SS2,SS3) |
35076-32030 |
US $70.47 |
||
|
35076F
|
35076F
90521-99014 Ring, Hole Snap (For Front Planetary Ring Gear Flange)[09.1993 - 03.1999] ST202,203..ATM |
90521-99014 |
US $3.49 |
||
|
35097
|
35097
35097-20040 Counter Gear Kit, Automatic Transaxle[09.1993 - 12.1997] ST202,203..ATM |
35097-20040 |
US $521.25 |
||
|
35097
|
35097
35097-21020 Counter Gear Kit, Automatic Transaxle[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35097-21020 |
US $457.18 |
||
|
35708A
|
35708A
90363-40024 Bearing, Radial Ball(For Overdrive Planetary Gear)[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90363-40024 |
US $193.34 |
||
|
35708C
|
35708C
90521-76003 Ring, Hole Snap(For Overdrive Planetary Gear Bearing)[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90521-76003 |
US $7.43 |
||
|
35720
|
35720
35720-17010
Gear Assy, Front Planetary
[09.1993 - 12.1997] ST202,203..ATM |
35720-17010 |
— | ||
|
35720
|
35720
35720-32020
Gear Assy, Front Planetary
[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35720-32020 |
— | ||
| replacement | |||||
|
35720
|
35720
35720-33010 Gear Assy, Front Planetary[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35720-33010 |
US $749.91 |
||
|
35720A
|
35720A
90374-22001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[09.1993 - 12.1997] ST202,203..ATM |
90374-22001 |
US $10.05 |
||
|
35720A
|
35720A
90374-31001 Bearing, Thrust Needle Roller(For Front Planetary Flange)[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90374-31001 |
US $16.02 |
||
|
35738
|
35738
35738-21040 Washer, Planetary Carrier Thrust, No.2[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) ＮＯ．２ |
35738-21040 |
US $18.20 |
||
|
35738
|
35738
35738-21050 Washer, Planetary Carrier Thrust, No.2[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) ＮＯ．１ |
35738-21050 |
US $9.46 |
||
|
35738
|
35738
35738-32010 Washer, Planetary Carrier Thrust, No.2[09.1993 - 12.1997] ST202,203..ATM |
35738-32010 |
US $15.43 |
||
|
35739
|
35739
35739-21010 Washer, Planetary Carrier Thrust, No.3[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35739-21010 |
US $27.66 |
||
|
35739
|
35739
35739-32011 Washer, Planetary Carrier Thrust, No.3[09.1993 - 12.1997] ST202,203..ATM |
35739-32011 |
US $15.29 |
||
|
35743
|
35743
35743-32040 Gear, Front Planetary Ring[09.1993 - 12.1997] ST202,203..ATM |
35743-32040 |
from US $104.83 |
||
|
35743
|
35743
35743-33010 Gear, Front Planetary Ring[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35743-33010 |
US $106.29 |
||
|
35760
|
35760
35760-32030
Gear Assy, Rear Planetary
[09.1993 - 12.1997] ST202,203..ATM |
35760-32030 |
— | ||
|
35760
|
35760
35760-33010 Gear Assy, Rear Planetary[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35760-33010 |
US $318.86 |
||
|
35761
|
35761
35761-32010 Gear, Rear Planetary Ring[09.1993 - 12.1997] ST202,203..ATM |
35761-32010 |
US $101.92 |
||
|
35761
|
35761
35761-32020 Gear, Rear Planetary Ring[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35761-32020 |
US $101.92 |
||
|
35762
|
35762
35762-21011 Flange, Rear Planetary Ring Gear[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35762-21011 |
US $78.62 |
||
|
35762
|
35762
35762-32010 Flange, Rear Planetary Ring Gear[09.1993 - 12.1997] ST202,203..ATM |
35762-32010 |
US $74.26 |
||
|
35762A
|
35762A
90374-22006
Bearing, Thrust Needle Roller (For Rear Planetary Flange)
[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90374-22006 |
— | ||
|
35762A
|
35762A
90374-24002
Bearing, Thrust Needle Roller (For Rear Planetary Flange)
[09.1993 - 12.1997] ST202,203..ATM |
90374-24002 |
— | ||
|
35762B
|
35762B
90521-90001 Ring, Hole Snap (For Rear Planetary Ring Gear Flange)[09.1993 - 03.1999] ST202,203..ATM |
90521-90001 |
US $3.06 |
||
|
35783E
|
35783E
90365-37001
Bearing, Cylindrical Roller(For Counter Driven Gear)
[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90365-37001 |
— | ||
|
35783F
|
35783F
90374-41001 Bearing, Thrust Needle Roller(For Counter Driven Gear)[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90374-41001 |
US $15 |
||
|
35783G
|
35783G
90179-20013 Nut(For Counter Driven Gear)[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
90179-20013 |
US $3.49 |
||
|
35789B
|
35789B
35789-32040 Race, Thrust Bearing (For Input Shaft Rear)[09.1993 - 03.1999] ST202,203..ATM |
35789-32040 |
US $9.32 |
||
|
35789C
|
35789C
35789-32060 Race, Thrust Bearing (For Front Planetary Gear Front)[09.1993 - 03.1999] ST202,203..ATM |
35789-32060 |
US $9.17 |
||
|
35789D
|
35789D
35789-32070
Race, Thrust Bearing (For Front Planetary Gear Rear)
[09.1993 - 03.1999] ST202,203..ATM |
35789-32070 |
— | ||
|
35789X
|
35789X
35789-21020 Race, Thrust Bearing[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35789-21020 |
US $15.14 |
||
|
35792
|
35792
35792-12010 Clutch, 1 Way, No.2[09.1993 - 12.1997] ST202,203..ATM |
35792-12010 |
US $214.03 |
||
| replacement | |||||
|
35792
|
35792
35792-20020 Clutch, 1 Way, No.2[09.1993 - 12.1997] ST202,203..ATM |
35792-20020 |
from US $207.27 |
||
|
35792
|
35792
35792-20020 Clutch, 1 Way, No.2[12.1997 - 03.1999] ST202..ATM..(CV,SS2,SS3) |
35792-20020 |
from US $207.27 |
||
|
35792B
|
35792B
90521-99010 Ring, Hole Snap (For 1 Way Clutch No.2)[09.1993 - 03.1999] ST202,203..ATM |
90521-99010 |
US $3.93 |
||
|
35795
|
35795
35795-32010 Race, 1 Way Clutch Outer[09.1993 - 03.1999] ST202,203..ATM |
35795-32010 |
US $113.57 |
||
|
35795A
|
35795A
90521-99011 Ring, Hole Snap (For Overdrive Brake Flange)[09.1993 - 03.1999] ST202,203..ATM |
90521-99011 |
US $4.80 |
||
