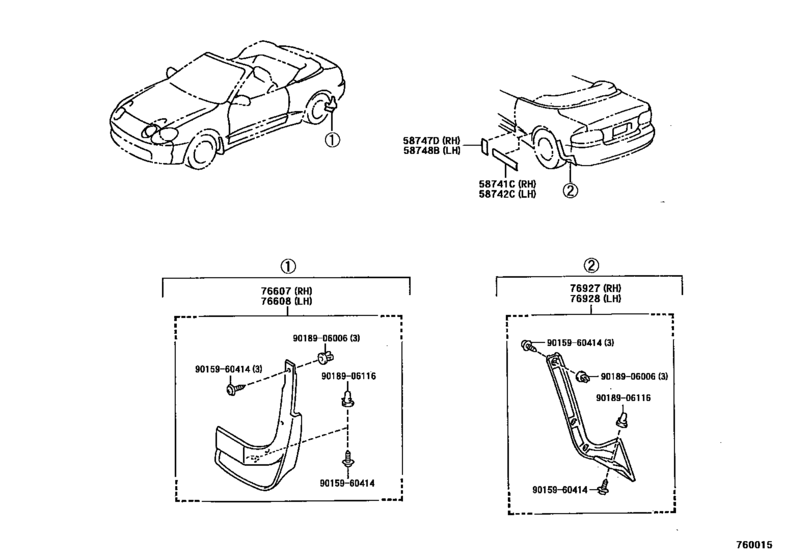

Mudguard & Spoiler ([08.1994 - ] (9408- )CVT) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Europe
- Frame
- ST202
- grade
- GT
- body
- CVT
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 08.1994
- To
- 05.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-20140 Protector, Quarter Panel, RhQUARTER PANEL, RH [11.1993 - 08.1995] AT200,ST20# |
58741-20140 |
US $23.30 |
||
|
58742C
|
58742C
58742-20130 Protector, Quarter Panel, LhQUARTER PANEL, LH [11.1993 - 08.1995] AT200,ST20# |
58742-20130 |
US $23.30 |
||
|
58747D
|
58747D
58747-20020 Protector, Quarter Panel, Rear Rh[11.1993 -] AT200,ST20# |
58747-20020 |
US $11.07 |
||
|
58748B
|
58748B
58748-20020 Protector, Quarter Panel, Rear Lh[11.1993 -] AT200,ST20# |
58748-20020 |
US $11.07 |
||
|
76607
|
76607
76625-29195
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[11.1993 -] AT200,ST20# |
76625-29195 |
— | ||
|
76608
|
76608
76626-29195
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[11.1993 -] AT200,ST20# |
76626-29195 |
— | ||
|
76927
|
76927
76927-29015
Protecter, Rear Mudguard, Rh
[12.1995 -] AT200,ST20# |
76927-29015 |
— | ||
|
76928
|
76928
76928-29015
Protecter, Rear Mudguard, Lh
[12.1995 -] AT200,ST20# |
76928-29015 |
— | ||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906116
|
9018906116
90189-06116 CLIP |
90189-06116 |
from US $1.56 |
