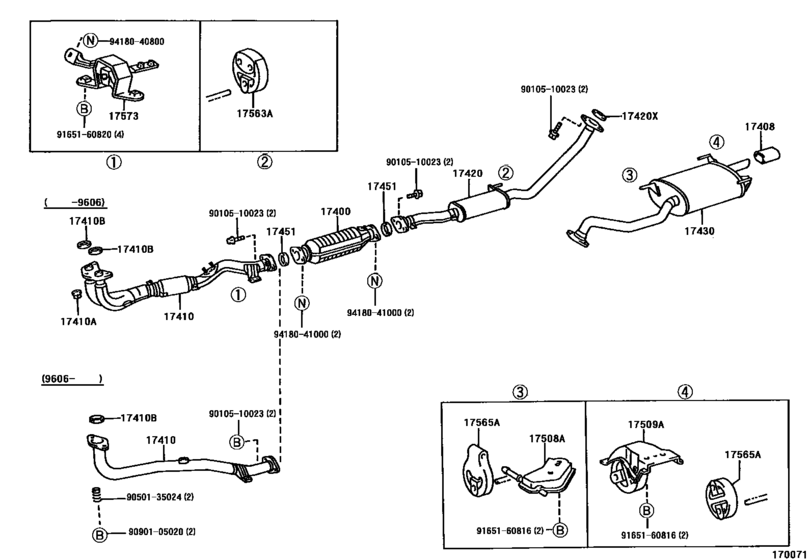

Exhaust Pipe ([11.1993 - ] (9311- )3SGE) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- Europe
- Frame
- ST202
- grade
- GT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-74460 Converter Assy, W/catalystW/CATALYST [11.1993 - 06.1996] 3SGE..ST202 |
18450-74460 |
US $1,980.16 |
||
|
17400
|
17400
18450-74560 Converter Assy, W/catalystW/CATALYST [06.1996 -] 3SGE..ST202 |
18450-74560 |
US $1,980.16 |
||
|
17408
|
17408
17408-74020 Baffle Sub Assy, Exhaust Tail Pipe[11.1993 -] 3SGE..ST202..LB |
17408-74020 |
US $72.36 |
||
|
17410
|
17410
17410-7A200 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [11.1993 - 12.1994] 3SGE..ST202 |
17410-7A200 |
US $403.31 |
||
| replacement | |||||
|
17410
|
17410
17410-7A201 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [11.1993 - 12.1994] 3SGE..ST202 |
17410-7A201 |
US $403.31 |
||
|
17410
|
17410
17410-7A201 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [12.1994 - 06.1996] 3SGE..ST202 |
17410-7A201 |
US $403.31 |
||
|
17410
|
17410
17410-7A540
Pipe Assy, Exhaust, Front
[06.1996 -] 3SGE..ST202 |
17410-7A540 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.1993 - 06.1996] 7AFE,3SG#..AT200,ST20# |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.1993 - 06.1996] 7AFE,3SG#..AT200,ST20# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
17451-74050 Gasket, Exhaust Pipe[06.1996 - 12.1996] 3SGE..ST202 |
17451-74050 |
US $18.93 |
||
| replacement | |||||
|
17410B
|
17410B
17451-74051 Gasket, Exhaust Pipe[06.1996 - 12.1996] 3SGE..ST202 |
17451-74051 |
from US $16.38 |
||
|
17410B
|
17410B
17451-74051 Gasket, Exhaust Pipe[12.1996 -] 3SGE..ST202 |
17451-74051 |
from US $16.38 |
||
|
17410B
|
17410B
90917-06075 Gasket, Exhaust Pipe[11.1993 - 06.1996] 3SGE..ST202 |
90917-06075 |
from US $9.28 |
||
|
17420
|
17420
17420-74710
Pipe Assy, Exhaust, Center
[11.1993 -] 3SGE..ST202 |
17420-74710 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-74700 Pipe Assy, Exhaust, Center[11.1993 -] 3SGE..ST202 |
17420-74700 |
US $416.42 |
||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[11.1993 -] 3SGE..ST202 |
90917-06045 |
from US $1.70 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[11.1993 -] 3SGE..ST202 |
90080-43028 |
US $19.44 |
||
|
17430
|
17430
17430-7A310 Pipe Assy, Exhaust, TailEXHAUST, TAIL [11.1993 - 06.1996] 3SGE..ST202 |
17430-7A310 |
US $426.61 |
||
|
17430
|
17430
17430-7A750
Pipe Assy, Exhaust, Tail
[06.1996 -] 3SGE..ST202 |
17430-7A750 |
— | ||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[11.1993 -] 3SGE..ST202 FRONT |
90917-06054 |
from US $4.23 |
||
|
17451
|
17451
90917-06073 Gasket, Exhaust Pipe, Center[11.1993 -] 3SGE..ST202 REAR |
90917-06073 |
from US $7.20 |
||
|
17508A
|
17508A
17508-74080
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[11.1993 -] 7AFE,3SGE..AT200,ST202 |
17508-74080 |
— | ||
|
17509A
|
17509A
17509-74140
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[11.1993 -] 7AFE,3SGE..AT200,ST202 |
17509-74140 |
— | ||
|
17563A
|
17563A
17565-64180 Support, Exhaust Pipe, No.3[11.1993 -] 7AFE,3SGE..AT200,ST202 |
17565-64180 |
US $15.52 |
||
|
17565A
|
17565A
17565-16230
Support, Exhaust Pipe, No.4
[11.1993 -] 7AFE,3SGE..AT200,ST202 FRONT |
17565-16230 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-28020 Support, Exhaust Pipe, No.4[11.1993 -] 7AFE,3SGE..AT200,ST202 FRONT |
17565-28020 |
US $7.04 |
||
|
17565A
|
17565A
17565-74290 Support, Exhaust Pipe, No.2[11.1993 -] 7AFE,3SGE..AT200,ST202 REAR |
17565-74290 |
from US $7.49 |
||
|
17573
|
17573
17573-74150
Bracket, Exhaust Pipe No.1 Support, Lower
[11.1993 -] 7AFE,3SGE..AT200,ST202 |
17573-74150 |
— | ||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
