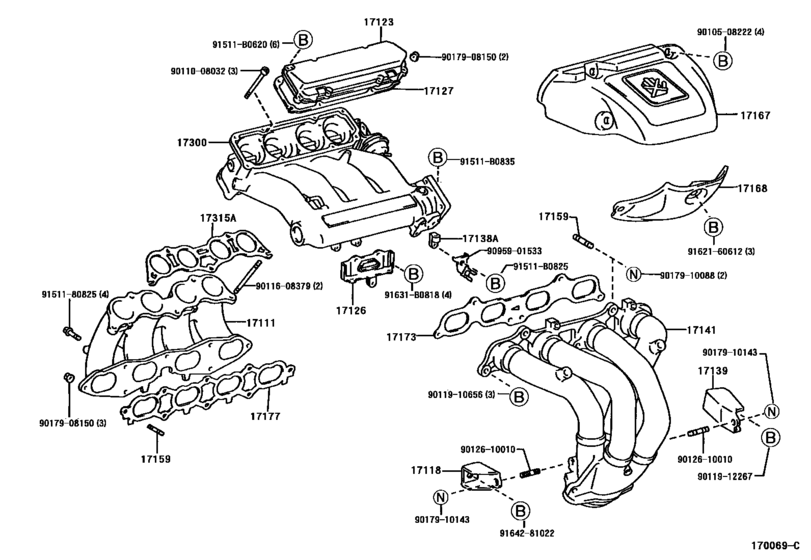

Manifold ([06.1996 - ] (9606- )3SGE) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- Europe
- Frame
- ST202
- grade
- GT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-88460 Manifold, Intake[11.1993 -] 3SGE..ST202 |
17101-88460 |
US $910 |
||
|
17118
|
17118
17118-88460 Stay, Manifold[11.1993 - 06.1996] 3SGE..ST202 |
17118-88460 |
US $90.27 |
||
|
17118
|
17118
17118-88462 Stay, ManifoldMANIFOLD [06.1996 -] 3SGE..ST202 |
17118-88462 |
US $23.73 |
||
|
17123
|
17123
17123-88460
Cover, Surge Tank
[11.1993 -] 3SGE..ST202 |
17123-88460 |
— | ||
|
17126
|
17126
17126-88460
Stay, Surge Tank, No.2
[11.1993 -] 3SGE..ST202 |
17126-88460 |
— | ||
|
17127
|
17127
17127-88460 Gasket, Surge Tank Cover[11.1993 -] 3SGE..ST202 |
17127-88460 |
US $17.63 |
||
|
17138A
|
17138A
17138-88460 Stay, Intake Pipe[11.1993 -] 3SGE..ST202 |
17138-88460 |
US $29.12 |
||
|
17139
|
17139
17139-88460 Stay, Manifold, No.2[11.1993 - 06.1996] 3SGE..ST202 |
17139-88460 |
US $64.36 |
||
|
17139
|
17139
17139-88462 Stay, Manifold, No.2MANIFOLD, NO.2 [06.1996 -] 3SGE..ST202 |
17139-88462 |
US $25.19 |
||
|
17141
|
17141
17141-88460 Manifold, Exhaust[11.1993 - 06.1996] 3SGE..ST202 |
17141-88460 |
US $438.26 |
||
|
17141
|
17141
17141-88462 Manifold, ExhaustEXHAUST [06.1996 -] 3SGE..ST202 |
17141-88462 |
US $331.97 |
||
|
17159
|
17159
90116-08242
Bolt, Stud(For Manifold To Cylinder Head)
[11.1993 -] 3SG#..ST20# INTAKE MANIFOLD |
90116-08242 |
— | ||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [02.1995 -] 3SGE..ST202 EXHAUST MANIFOLD |
90116-10169 |
from US $1.44 |
||
|
17167
|
17167
17167-88460
Insulator, Exhaust Manifold Heat, No.1
[11.1993 - 06.1996] 3SGE..ST202 |
17167-88460 |
— | ||
|
17167
|
17167
17167-88462
Insulator, Exhaust Manifold Heat, No.1
[06.1996 -] 3SGE..ST202 |
17167-88462 |
— | ||
|
17168
|
17168
17168-88460
Insulator, Exhaust Manifold Heat, No.2
[11.1993 - 06.1996] 3SGE..ST202 |
17168-88460 |
— | ||
|
17168
|
17168
17168-88463 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [06.1996 -] 3SGE..ST202 |
17168-88463 |
US $41.35 |
||
|
17173
|
17173
17173-88460
Gasket, Exhaust Manifold To Head
[11.1993 - 04.1996] 3SGE..ST202 |
17173-88460 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-88461 Gasket, Exhaust Manifold To Head[11.1993 - 04.1996] 3SGE..ST202 |
17173-88461 |
from US $15.99 |
||
|
17173
|
17173
17173-88461 Gasket, Exhaust Manifold To Head[04.1996 -] 3SGE..ST202 |
17173-88461 |
from US $15.99 |
||
|
17177
|
17177
17177-88460 Gasket, Intake Manifold To Head, No.1[11.1993 -] 3SG#..ST20# |
17177-88460 |
from US $11.27 |
||
|
17300
|
17300
17300-88463 Valve Assy, Intake Air Control[11.1993 - 06.1996] 3SGE..ST202 |
17300-88463 |
US $1,006.10 |
||
| replacements | |||||
|
17300
|
17300
17300-88469 Valve Assy, Intake Air Control[11.1993 - 06.1996] 3SGE..ST202 |
17300-88469 |
US $1,009.01 |
||
|
17300
|
17300
17342-88460
Hose, No.2(For Idle-Up)
[11.1993 - 06.1996] 3SGE..ST202 |
17342-88460 |
— | ||
|
17300
|
17300
17362-88460
Tube, Air, No.2
[11.1993 - 06.1996] 3SGE..ST202 |
17362-88460 |
— | ||
|
17300
|
17300
17300-88466 Valve Assy, Intake Air ControlINTAKE AIR CONTROL [06.1996 -] 3SGE..ST202 |
17300-88466 |
US $1,193.92 |
||
|
17315A
|
17315A
17315-88460 Gasket, Intake Air Control Valve[11.1993 -] 3SGE..ST202 |
17315-88460 |
US $17.63 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
91511B0835
|
91511B0835
91511-B0835
Bolt(For Cylinder Head Set Sub)
|
91511-B0835 |
— | ||
| replacement | |||||
|
91511B0835
|
91511B0835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
91631B0818
|
91631B0818
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9010508222
|
9010508222
90105-08222 BOLT WASHER BASED |
90105-08222 |
US $2.56 |
||
|
9011008032
|
9011008032
90110-08032
New Genuine Part
|
90110-08032 |
— | ||
|
9011608379
|
9011608379
90116-08379
New Genuine Part
|
90116-08379 |
— | ||
|
9011910656
|
9011910656
90119-10656 New Genuine Part |
90119-10656 |
US $2.08 |
||
|
9011912267
|
9011912267
90119-12267 New Genuine Part |
90119-12267 |
US $1.92 |
||
|
9012610010
|
9012610010
90126-10010
New Genuine Part
|
90126-10010 |
— | ||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9017910143
|
9017910143
90179-10143 Nut(For Front Suspension Support) |
90179-10143 |
US $3.20 |
||
|
9095901533
|
9095901533
90959-01533
New Genuine Part
|
90959-01533 |
— | ||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9164281022
|
9164281022
91642-81022 BOLT WWASHER |
91642-81022 |
US $2.33 |
||
| replacement | |||||
|
9164281022
|
9164281022
91642-H1022 BOLT W-WASHER |
91642-H1022 |
US $2.24 |
||
