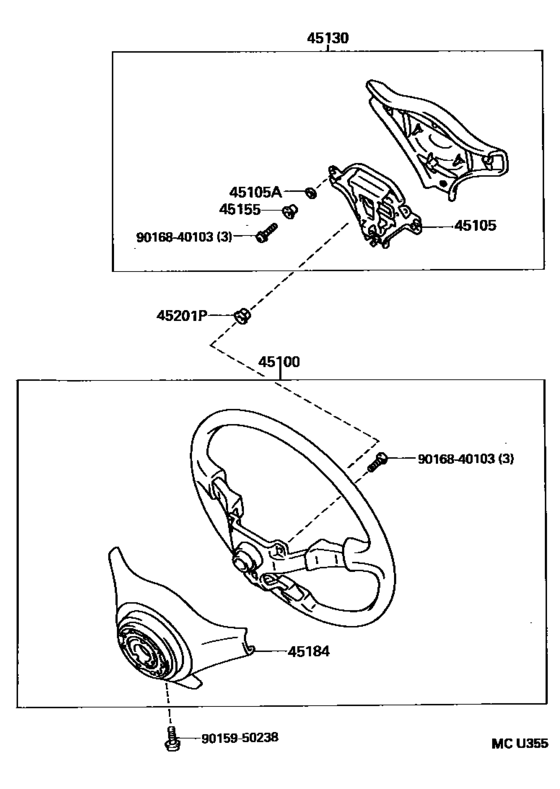

Steering Wheel ([11.1993 - 08.1995] 3-SPOKE (9311-9508)ST20# ; (9311-9508)AT200..LHD ; (9508 -9512)CVT) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- Europe
- Frame
- ST202
- grade
- GT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-12891-C1
Wheel Assy, Steering
[12.1997 -] ST202 3-SPOKE,LEATHER,BLACK / RED,TRIM2# |
45100-12891-C1 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-12891-C0 Wheel Assy, Steering[12.1997 -] ST202 3-SPOKE,LEATHER,BLACK / RED,TRIM2# |
45100-12891-C0 |
US $831.67 |
||
|
45100
|
45100
45100-12891-C2 Wheel Assy, SteeringSTEERING [12.1997 -] ST202 3-SPOKE,LEATHER,BLACK,TRIM20 |
45100-12891-C2 |
US $856.13 |
||
| replacement | |||||
|
45100
|
45100
45100-12891-C0 Wheel Assy, Steering[12.1997 -] ST202 3-SPOKE,LEATHER,BLACK,TRIM20 |
45100-12891-C0 |
US $831.67 |
||
|
45100
|
45100
45100-2B310-C0
Wheel Assy, Steering
[11.1993 - 08.1995] ST20# 3-SPOKE,LEATHER,BLACK,TRIM2# |
45100-2B310-C0 |
— | ||
|
45100
|
45100
45100-2B360-C0 Wheel Assy, Steering[11.1993 - 08.1995] ST20# 4-SPOKE,LEATHER,BLACK,TRIM2# |
45100-2B360-C0 |
US $854.67 |
||
|
45100
|
45100
45100-2B540-C0 Wheel Assy, SteeringSTEERING [08.1995 - 12.1995] ST20#..LB 4-SPOKE,LEATHER,BLACK,TRIM2# |
45100-2B540-C0 |
US $856.13 |
||
|
45105
|
45105
45105-20500 Plate Sub-Assy, Horn Button Contact, No.1[11.1993 - 08.1995] ST20#;AT200..LHD |
45105-20500 |
US $43.10 |
||
|
45105A
|
45105A
90540-08014 Cushion(For Horn Button Contact Plate)[11.1993 - 08.1995] ST20#;AT200..LHD |
90540-08014 |
US $0.87 |
||
|
45130
|
45130
45130-14360-C0
Button Assy, Horn
[12.1997 -] AT200,ST202 BLACK,TRIM2# |
45130-14360-C0 |
— | ||
|
45130
|
45130
45130-2B230-C0
Button Assy, Horn
[08.1995 - 12.1995] AT200,ST20#..LB BLACK,TRIM2# |
45130-2B230-C0 |
— | ||
|
45130
|
45130
45130-2B270-C0
Button Assy, Horn
[11.1993 - 08.1995] ST20#;AT200..LHD BLACK,TRIM2# |
45130-2B270-C0 |
— | ||
|
45130
|
45130
45130-2B290-C0
Button Assy, Horn
[11.1993 - 08.1995] AT200,ST20# W(*80;DRIVER SIDE),BLACK,TRIM2# |
45130-2B290-C0 |
— | ||
|
45155
|
45155
45155-22040 Spacer(For Horn Button Contact Plate)[11.1993 - 08.1995] ST20#;AT200..LHD |
45155-22040 |
US $1.69 |
||
|
45184
|
45184
45180-20270-C0
Cover Sub-Assy, Steering Wheel
[11.1993 - 05.1994] AT200,ST20# BLACK,TRIM2# |
45180-20270-C0 |
— | ||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[11.1993 -] AT200,ST20# |
90179-12071 |
from US $1.58 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $1.92 |
||
|
9016840103
|
9016840103
90168-40103 New Genuine Part |
90168-40103 |
US $0.79 |
||
