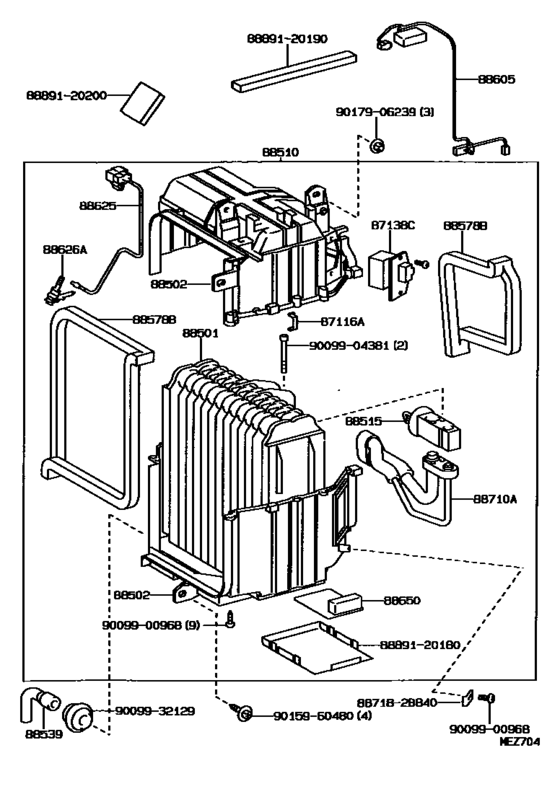

Heating & Air Conditioning - Cooler Unit ([11.1993 - ] DEALER OPTION (9311- )) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[11.1993 -] ST20# |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-20300
Resistor, Blower
[11.1993 -] ST202..LHD |
87138-20300 |
— | ||
|
88501
|
88501
88501-20380
Evaporator Sub-Assy, Cooler, No.1
[11.1993 - 10.1994] ST202..LHD |
88501-20380 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-20381
Evaporator Sub-Assy, Cooler, No.1
[11.1993 - 10.1994] ST202..LHD |
88501-20381 |
— | ||
|
88501
|
88501
88501-20381
Evaporator Sub-Assy, Cooler, No.1
[10.1994 -] ST202..LHD |
88501-20381 |
— | ||
|
88502
|
88502
88502-20250
Case Sub-Assy, Cooling Unit
[11.1993 -] ST202..LHD UPPER |
88502-20250 |
— | ||
|
88502
|
88502
88502-20260
Case Sub-Assy, Cooling Unit
[11.1993 -] ST202..LHD LOWER |
88502-20260 |
— | ||
|
88510
|
88510
88510-2B390
Unit Assy, Cooler
[11.1993 -] ST202..LHD |
88510-2B390 |
— | ||
|
88515
|
88515
88515-20120 Valve, Cooler Expansion[11.1993 - 08.1995] ST202 |
88515-20120 |
US $136.86 |
||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[11.1993 - 08.1995] ST202 |
88515-22240 |
from US $132.85 |
||
|
88539
|
88539
88539-20260
Hose, Cooler Unit Drain, No.1
[08.1995 -] ST202..LHD |
88539-20260 |
— | ||
|
88578B
|
88578B
88578-20460
Packing, Cooling Unit, No.1
[11.1993 - 10.1994] ST202,204 FRONT |
88578-20460 |
— | ||
|
88578B
|
88578B
88578-20470
Packing, Cooling Unit, No.1
[11.1993 -] ST20# REAR |
88578-20470 |
— | ||
|
88578B
|
88578B
88578-20570
Packing, Cooling Unit, No.1
[10.1994 -] ST20# FRONT |
88578-20570 |
— | ||
|
88605
|
88605
88605-2D290
Harness Sub-Assy, Cooler Wiring, No.1
[11.1993 -] ST20# |
88605-2D290 |
— | ||
|
88625
|
88625
88625-20270
Thermistor, Cooler, No.1
[11.1993 - 08.1995] ST202 |
88625-20270 |
— | ||
|
88625
|
88625
88625-60050 Thermistor, Cooler, No.1[08.1995 -] ST20# |
88625-60050 |
from US $13.45 |
||
| replacement | |||||
|
88625
|
88625
88625600501
Thermistor, Cooler, No.1
[08.1995 -] ST20# |
88625600501 |
— | ||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[11.1993 -] ST20# |
88626-28010 |
— | ||
|
88650
|
88650
88650-2B280
Amplifier Assy, Cooler Stabilizer
[11.1993 - 08.1995] ST20# |
88650-2B280 |
— | ||
|
88710A
|
88710A
88710-20510 Tube Assy, Air ConditionerAIRCONDITIONER [11.1993 -] ST202..LHD |
88710-20510 |
US $116.48 |
||
|
887182B840
|
887182B840
88718-2B840
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B840 |
— | ||
|
8889120180
|
8889120180
88891-20180
Packing (for Cooler)
|
88891-20180 |
— | ||
|
8889120190
|
8889120190
88891-20190
Packing (for Cooler)
|
88891-20190 |
— | ||
|
8889120200
|
8889120200
88891-20200
Packing (for Cooler)
|
88891-20200 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9015960480
|
9015960480
90159-60480 New Genuine Part |
90159-60480 |
US $1.60 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
