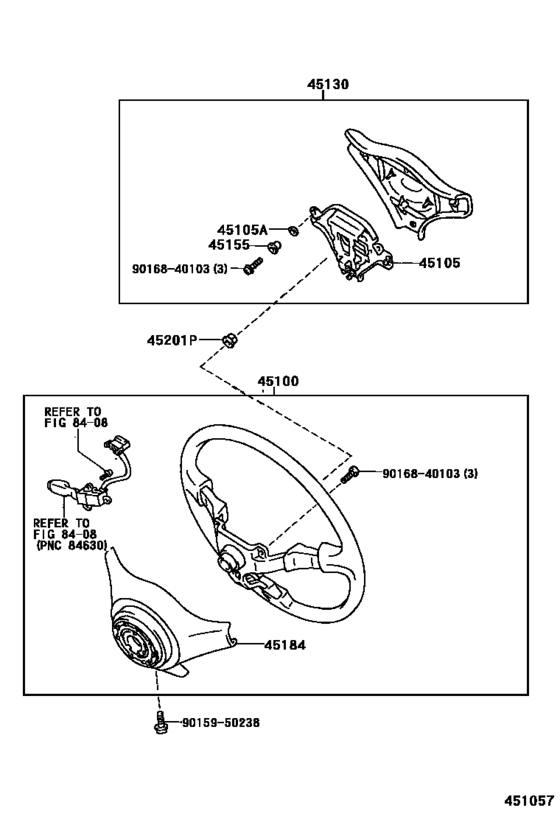

Steering Wheel ([11.1993 - ] 3-SPOKE;W(CRUISE CONTROL) (9311- )) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-2B290-C0 Wheel Assy, Steering[11.1993 - 08.1995] ST202,204 3-SPOKE,URETHANE,BLACK,TRIM2# |
45100-2B290-C0 |
US $375.65 |
||
|
45105
|
45105
45105-20500 Plate Sub-Assy, Horn Button Contact, No.1[11.1993 - 08.1995] ST20# |
45105-20500 |
US $43.10 |
||
|
45105A
|
45105A
90540-08014 Cushion(For Horn Button Contact Plate)[11.1993 - 08.1995] ST20# |
90540-08014 |
US $0.87 |
||
|
45130
|
45130
45130-2B270-C0
Button Assy, Horn
[11.1993 - 08.1995] ST20# BLACK,TRIM2# |
45130-2B270-C0 |
— | ||
|
45155
|
45155
45155-22040 Spacer(For Horn Button Contact Plate)[11.1993 - 08.1995] ST20# |
45155-22040 |
US $1.69 |
||
|
45184
|
45184
45180-20270-C0
Cover Sub-Assy, Steering Wheel
[11.1993 - 05.1994] ST20# BLACK,TRIM2# |
45180-20270-C0 |
— | ||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[11.1993 -] ST20# |
90179-12071 |
from US $1.58 |
||
|
9015950238
|
9015950238
90159-50238 SCREW WWASHER |
90159-50238 |
US $1.92 |
||
|
9016840103
|
9016840103
90168-40103 New Genuine Part |
90168-40103 |
US $0.79 |
