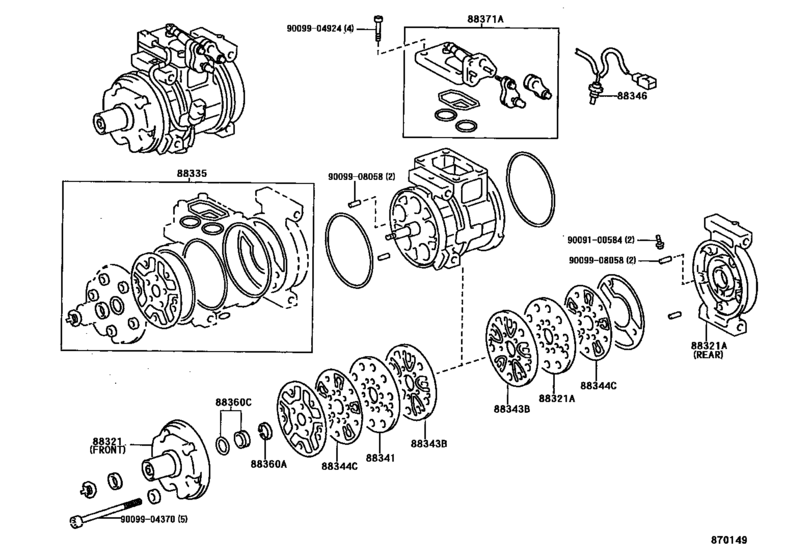

Heating & Air Conditioning - Compressor ([11.1993 - ] (9311- )GCC) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88321
|
88321
88321-2B010
Head, Cooler Compressor Cylinder
[11.1993 - 01.1996] ST202 FRONT |
88321-2B010 |
— | ||
|
88321
|
88321
88322-32040
Head, Cooler Compressor Cylinder
[11.1993 - 08.1995] ST202,204..MTM..(ARL,GCC) REAR |
88322-32040 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[11.1993 - 08.1995] ST202,204..MTM..(ARL,GCC) |
88342-22010 |
— | ||
|
88335
|
88335
88335-2B010
Gasket Kit, Overhaul
[11.1993 - 08.1995] ST202..GCC |
88335-2B010 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[11.1993 - 08.1995] ST202..GCC |
88335-2B030 |
from US $36.68 |
||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[08.1995 - 01.1996] ST202,204 |
88335-2B030 |
from US $36.68 |
||
|
88341
|
88341
88341-22010
Plate Sub-Assy, Valve
[11.1993 - 01.1996] ST20# |
88341-22010 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[11.1993 - 08.1995] ST202,205;ST204..ATM |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[11.1993 - 08.1995] ST202,204..MTM..(ARL,GCC) |
88344-22010 |
— | ||
|
88346
|
88346
88336-2B100
Sensor,compressor
[11.1993 -] ST202..GCC |
88336-2B100 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[11.1993 - 01.1996] ST20# |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-2B010
Seal Assy, Shaft
[11.1993 - 08.1995] ST202,204..ARL,GCC |
88360-2B010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[11.1993 - 08.1995] ST202,204..ARL,GCC |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-2B130
Valve, Suction
[11.1993 -] ST202..GCC |
88371-2B130 |
— | ||
|
9009100584
|
9009100584
90091-00584
New Genuine Part
|
90091-00584 |
— | ||
|
9009904370
|
9009904370
90099-04370
Bolt, Compressor, No.1
|
90099-04370 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
