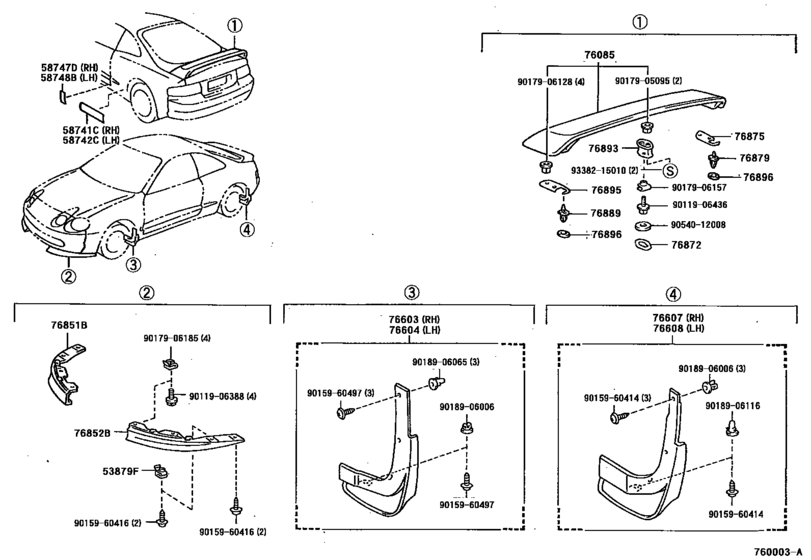

Mudguard & Spoiler ([08.1995 - ] (9508- )) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-20140 Protector, Quarter Panel, RhQUARTER PANEL, RH [11.1993 -] ST20# |
58741-20140 |
US $23.30 |
||
|
58742C
|
58742C
58742-20130 Protector, Quarter Panel, LhQUARTER PANEL, LH [11.1993 -] ST20# |
58742-20130 |
US $23.30 |
||
|
58747D
|
58747D
58747-20020 Protector, Quarter Panel, Rear Rh[11.1993 -] ST20# |
58747-20020 |
US $11.07 |
||
|
58748B
|
58748B
58748-20020 Protector, Quarter Panel, Rear Lh[11.1993 -] ST20# |
58748-20020 |
US $11.07 |
||
|
76085
|
76085
76085-20915 Spoiler Sub-Assy, Rear[11.1993 - 08.1995] ST20# |
76085-20915 |
US $822.64 |
||
| replacement | |||||
|
76085
|
76085
76085-20920 Spoiler Sub-Assy, Rear[11.1993 - 08.1995] ST20# |
76085-20920 |
US $825.55 |
||
|
76085
|
76085
76871-20911 Spoiler Sub-Assy, Rear[08.1995 -] ST20# |
76871-20911 |
US $744.02 |
||
|
76603
|
76603
76621-29165
Mudguard Sub-Assy, Front Fender, Rh
[11.1993 -] ST20# |
76621-29165 |
— | ||
|
76604
|
76604
76622-29165
Mudguard Sub-Assy, Front Fender, Lh
[11.1993 -] ST20# |
76622-29165 |
— | ||
|
76607
|
76607
76625-29195
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[11.1993 -] ST20# |
76625-29195 |
— | ||
|
76608
|
76608
76626-29195
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[11.1993 -] ST20# |
76626-29195 |
— | ||
|
76872
|
76872
76872-20150
Protector, Rear Spoiler, No.1
[08.1995 -] ST20# |
76872-20150 |
— | ||
|
76875
|
76875
76875-20080
Protector, Rear Spoiler, No.4
[08.1995 -] ST20# |
76875-20080 |
— | ||
|
76879
|
76879
76879-20060
Clip, Rear Spoiler, No.1
[08.1995 -] ST20# |
76879-20060 |
— | ||
|
76889
|
76889
76889-20060
Clip, Rear Spoiler, No.2
[08.1995 -] ST20# |
76889-20060 |
— | ||
|
76893
|
76893
76893-20900 Cover, Rear Spoiler, No.1[08.1995 -] ST20# |
76893-20900 |
US $27.37 |
||
|
76895
|
76895
76875-20080
Protector, Rear Spoiler, No.4
[08.1995 -] ST20# |
76875-20080 |
— | ||
|
76896
|
76896
76896-20060
Protector, Rear Spoiler, No.6
[08.1995 -] ST20# |
76896-20060 |
— | ||
|
9011906388
|
9011906388
90119-06388
BOLT
|
90119-06388 |
— | ||
| replacement | |||||
|
9011906388
|
9011906388
90119-06492 BOLT |
90119-06492 |
from US $0.84 |
||
|
9011906436
|
9011906436
90119-06436 New Genuine Part |
90119-06436 |
US $1.92 |
||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9015960416
|
9015960416
90159-60416 SCREW |
90159-60416 |
from US $1.07 |
||
|
9015960497
|
9015960497
90159-60497 SCREW WWASHER |
90159-60497 |
from US $0.78 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9017906157
|
9017906157
90179-06157 NUT |
90179-06157 |
from US $0.96 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $3.52 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9018906116
|
9018906116
90189-06116 CLIP |
90189-06116 |
from US $1.56 |
||
|
9054012008
|
9054012008
90540-12008 Seal, Rear Spoiler |
90540-12008 |
US $2.80 |
||
| replacement | |||||
|
9054012008
|
9054012008
90430-10014 Seal, Rear Spoiler |
90430-10014 |
US $1.89 |
||
|
9338215010
|
9338215010
93382-15010 New Genuine Part |
93382-15010 |
US $0.73 |
||
