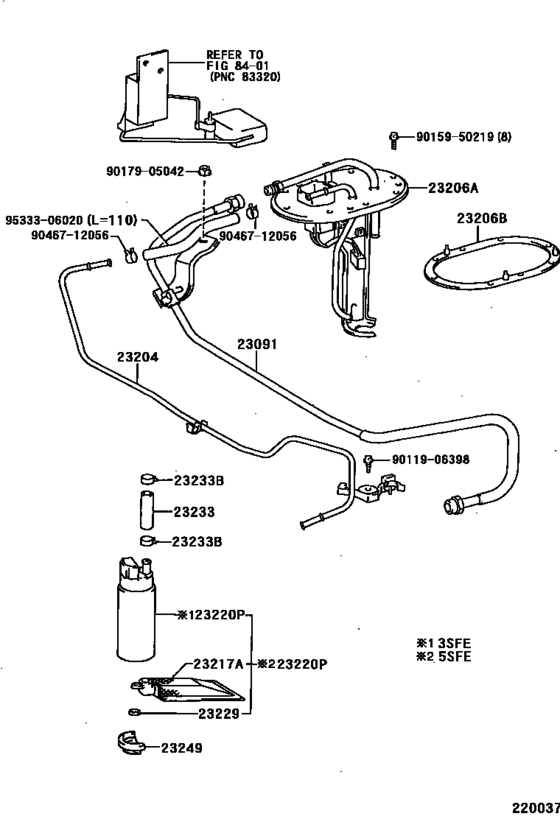

Fuel Injection System ([11.1993 - ] (9311- )3SFE,5SFE) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-74230 Tube Sub-Assy, Fuel Pump[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
23091-74230 |
US $113.57 |
||
| replacement | |||||
|
23091
|
23091
77209-20130 Tube Sub-Assy, Fuel Pump[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
77209-20130 |
US $113.57 |
||
|
23091
|
23091
77209-20130 Tube Sub-Assy, Fuel Pump[12.1996 -] 3SFE,5SFE..ST202,204 |
77209-20130 |
US $113.57 |
||
|
23204
|
23204
23204-74710
Tube Sub-Assy, Fuel Pump Return
[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
23204-74710 |
— | ||
| replacement | |||||
|
23204
|
23204
77204-20150
Tube Sub-Assy, Fuel Pump Return
[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
77204-20150 |
— | ||
|
23204
|
23204
77204-20150
Tube Sub-Assy, Fuel Pump Return
[12.1996 -] 3SFE,5SFE..ST202,204 |
77204-20150 |
— | ||
|
23206A
|
23206A
23206-74720
Bracket, Fuel Pump
[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
23206-74720 |
— | ||
| replacement | |||||
|
23206A
|
23206A
77203-20190
Bracket, Fuel Pump
[11.1993 - 12.1996] 3SFE,5SFE..ST202,204 |
77203-20190 |
— | ||
|
23206A
|
23206A
77203-20190
Bracket, Fuel Pump
[12.1996 -] 3SFE,5SFE..ST202,204 |
77203-20190 |
— | ||
|
23206B
|
23206B
77169-20040 Gasket, Fuel Pump Bracket[11.1993 -] 3SFE,5SFE..ST202,204 |
77169-20040 |
from US $6.98 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[11.1993 -] 3SFE,5SFE..ST202,204 |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23221-15040 Pump Assy, Fuel[02.1998 -] 3SFE..ST202 |
23221-15040 |
US $525.91 |
||
|
23220P
|
23220P
23221-16490
Pump Assy, Fuel
[11.1993 - 02.1998] 3SFE..ST202 |
23221-16490 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[11.1993 - 02.1998] 3SFE..ST202 |
23221-28280 |
from US $370.52 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[11.1993 -] 3S#,5SFE..ST20# |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[11.1993 -] 3S#,5SFE..ST20# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[04.1994 -] 3S#,5SFE..ST20# |
23239-11010 |
from US $8.17 |
||
|
23233
|
23233
23239-63010 Hose, Fuel Pump[11.1993 - 04.1994] 3SFE,5SFE..ST202,204 |
23239-63010 |
US $14.56 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[04.1994 -] 3S#,5SFE..ST20# |
90467-12067 |
from US $1.27 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1993 - 04.1994] 3SFE,5SFE..ST202,204 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[11.1993 - 04.1994] 3SFE,5SFE..ST202,204 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[11.1993 -] 3S#,5SFE..ST20# |
23249-74610 |
from US $8.56 |
||
|
9011906398
|
9011906398
90119-06398 BOLT WWASHER |
90119-06398 |
US $1.28 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9017905042
|
9017905042
90179-05042 NUT |
90179-05042 |
US $1.12 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
