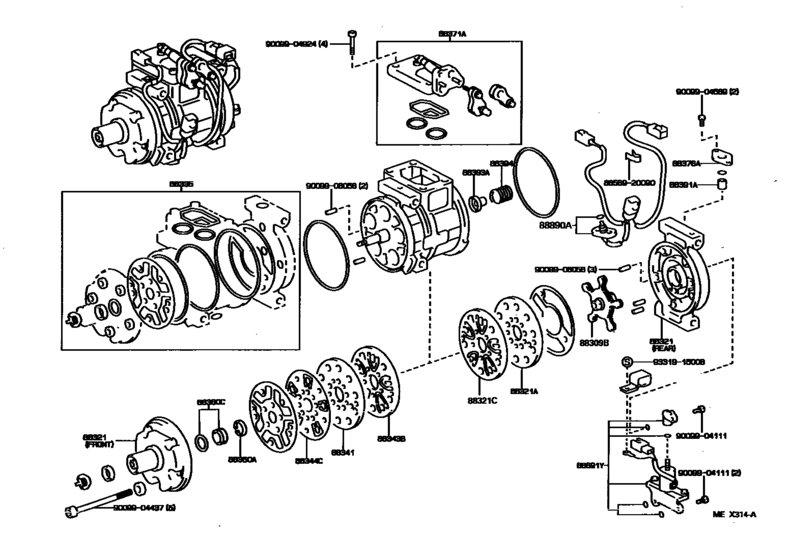

Heating & Air Conditioning - Compressor ([09.1993 - 08.1995] (9309-9508)ST204..ATM ; (9508-9510)CVT..ATM) Diagram Toyota CELICA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- ST204
- grade
- GT
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1993
- To
- 12.1997
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88309B
|
88309B
88309-2B020
Plunger Sub-Assy
[09.1993 - 08.1995] ST204..ATM |
88309-2B020 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[09.1993 -] AT200,ST204 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88322-2B020
Head, Cooler Compressor Cylinder
[09.1993 - 08.1995] ST204..ATM REAR |
88322-2B020 |
— | ||
|
88321
|
88321
88322-32040
Head, Cooler Compressor Cylinder
[08.1995 - 10.1995] ST204..CVT..MTM;AT200,ST204..CP,LB REAR |
88322-32040 |
— | ||
|
88321A
|
88321A
88342-20030
Plate Sub-Assy, Valve
[09.1993 - 08.1995] ST204..ATM |
88342-20030 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[08.1995 - 10.1995] ST204..CVT..MTM;AT200,ST204..CP,LB |
88342-22010 |
— | ||
|
88321C
|
88321C
88343-32010
Reed, Suction Valve
[09.1993 - 08.1995] ST204..ATM |
88343-32010 |
— | ||
|
88335
|
88335
88335-2B020
Gasket Kit, Overhaul
[09.1993 - 08.1995] ST204..ATM |
88335-2B020 |
— | ||
| replacement | |||||
|
88335
|
88335
88335-2B040
Gasket Kit, Overhaul
[09.1993 - 08.1995] ST204..ATM |
88335-2B040 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[08.1995 - 10.1995] ST204..CVT..MTM;AT200,ST204..CP,LB |
88335-2B030 |
from US $36.68 |
||
|
88341
|
88341
88341-22010
Plate Sub-Assy, Valve
[09.1993 -] AT200,ST204 |
88341-22010 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[09.1993 - 08.1995] AT200;ST204..ATM |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[09.1993 - 08.1995] ST204..ATM |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.1993 -] AT200,ST204 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-2B010
Seal Assy, Shaft
[09.1993 - 08.1995] AT200,ST204 |
88360-2B010 |
— | ||
| replacement | |||||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.1993 - 08.1995] AT200,ST204 |
88360-2B020 |
from US $68.84 |
||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[08.1995 - 12.1997] AT200,ST204 DEALER OPTION |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-2B120
Valve, Suction
[09.1993 -] ST204 |
88371-2B120 |
— | ||
|
88376A
|
88376A
88376-32010
Cap, Compressor
[09.1993 - 08.1995] ST204..ATM |
88376-32010 |
— | ||
|
88391A
|
88391A
88391-32010 Valve, FloatFLOAT [09.1993 - 08.1995] ST204..ATM |
88391-32010 |
US $8.88 |
||
|
88393A
|
88393A
88393-32010
Plate, Stopper
[09.1993 - 08.1995] ST204..ATM |
88393-32010 |
— | ||
|
88394
|
88394
88394-32010
Spring, Compressor
[09.1993 - 08.1995] ST204..ATM |
88394-32010 |
— | ||
|
88691Y
|
88691Y
88691-2B010
Valve, Magnet
[09.1993 - 08.1995] ST204..ATM |
88691-2B010 |
— | ||
|
88890A
|
88890A
88336-2B090
Pick Up, Assy
[09.1993 - 08.1995] ST204..ATM |
88336-2B090 |
— | ||
|
8856920090
|
8856920090
88569-20090
Clamp (for Cooler Relay)
|
88569-20090 |
— | ||
|
9009904111
|
9009904111
90099-04111
New Genuine Part
|
90099-04111 |
— | ||
|
9009904437
|
9009904437
90099-04437 Bolt, Compressor, No.1COMPRESSOR, NO.1 |
90099-04437 |
US $2.48 |
||
|
9009904589
|
9009904589
90099-04589
New Genuine Part
|
90099-04589 |
— | ||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
