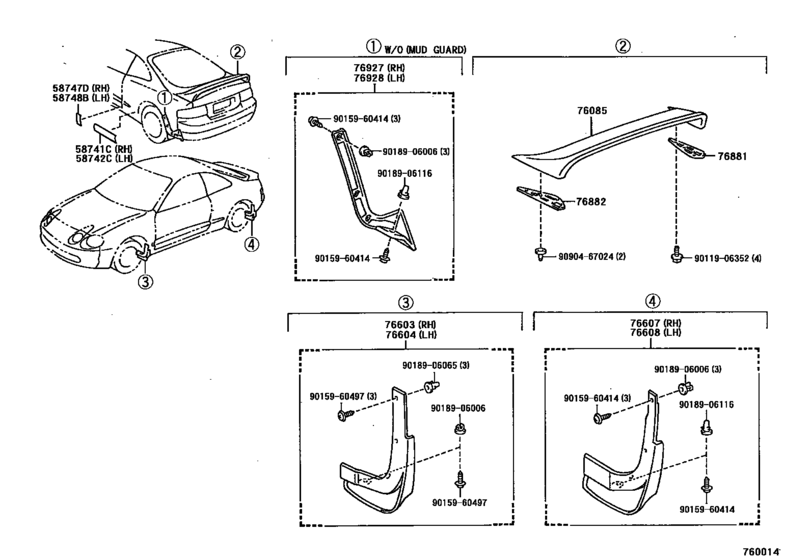

Mudguard & Spoiler ([09.1993 - 08.1995] (9309-9508)CP,LB) Diagram Toyota CELICA
- Year
- 1993 - 1997
- Sales region
- Europe
- Frame
- ST204
- grade
- GT
- body
- CP
- ENGINE
- 5SFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 09.1993
- To
- 12.1997
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-20140 Protector, Quarter Panel, RhQUARTER PANEL, RH [11.1993 -] AT200,ST204 |
58741-20140 |
US $23.30 |
||
|
58742C
|
58742C
58742-20130 Protector, Quarter Panel, LhQUARTER PANEL, LH [11.1993 -] AT200,ST204 |
58742-20130 |
US $23.30 |
||
|
58747D
|
58747D
58747-20020 Protector, Quarter Panel, Rear Rh[09.1993 -] AT200,ST204 |
58747-20020 |
US $11.07 |
||
|
58748B
|
58748B
58748-20020 Protector, Quarter Panel, Rear Lh[09.1993 -] AT200,ST204 |
58748-20020 |
US $11.07 |
||
|
76603
|
76603
76621-29165
Mudguard Sub-Assy, Front Fender, Rh
[09.1993 -] AT200,ST204..CP,LB |
76621-29165 |
— | ||
|
76604
|
76604
76622-29165
Mudguard Sub-Assy, Front Fender, Lh
[09.1993 -] AT200,ST204..CP,LB |
76622-29165 |
— | ||
|
76607
|
76607
76625-29195
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[09.1993 -] AT200,ST204 |
76625-29195 |
— | ||
|
76608
|
76608
76626-29195
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[09.1993 -] AT200,ST204 |
76626-29195 |
— | ||
|
76927
|
76927
76927-29015
Protecter, Rear Mudguard, Rh
[09.1993 - 10.1995] ST204..(CP,LB)..USA |
76927-29015 |
— | ||
|
76928
|
76928
76928-29015
Protecter, Rear Mudguard, Lh
[09.1993 - 10.1995] ST204..(CP,LB)..USA |
76928-29015 |
— | ||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9015960497
|
9015960497
90159-60497 SCREW WWASHER |
90159-60497 |
from US $0.78 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9018906116
|
9018906116
90189-06116 CLIP |
90189-06116 |
from US $1.56 |
||
|
9090467024
|
9090467024
90904-67024
New Genuine Part
|
90904-67024 |
— | ||
