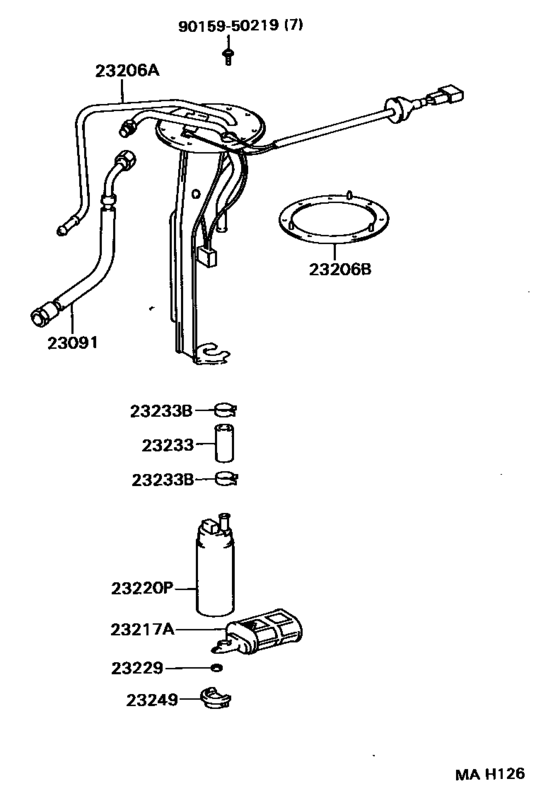

Fuel Injection System ([02.1994 - ] (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-74110
Tube Sub-Assy, Fuel Pump
[02.1994 -] 3SGTE..ST205 |
23091-74110 |
— | ||
|
23206A
|
23206A
23206-74760
Bracket, Fuel Pump
[02.1994 -] 3SGTE..ST205 |
23206-74760 |
— | ||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[02.1994 -] 3SGTE..ST205 |
77169-14010 |
from US $3.68 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[02.1994 -] 3SGTE..ST205 |
77169140101 |
— | ||
|
23217A
|
23217A
23217-50061 Filter, Fuel Pump[02.1994 -] 3SGTE..ST205 |
23217-50061 |
from US $12.15 |
||
|
23220P
|
23220P
23221-50060 Pump Assy, Fuel[02.1994 -] 3SGTE..ST205 |
23221-50060 |
US $500.86 |
||
| replacement | |||||
|
23220P
|
23220P
23221-32020 Pump Assy, FuelFUEL [02.1994 -] 3SGTE..ST205 |
23221-32020 |
US $519.40 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[09.1993 - 08.1995] 3SFE,3SG#..ST20# |
23229-16010 |
from US $0.92 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[09.1993 - 08.1995] 3SFE,3SG#..ST20# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[02.1994 - 04.1994] 3SGTE..ST205 |
23239-11010 |
US $10.88 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[02.1994 - 04.1994] 3SGTE..ST205 |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[09.1993 -] 3SFE,3SG#..ST20# |
23249-74610 |
from US $8.56 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
