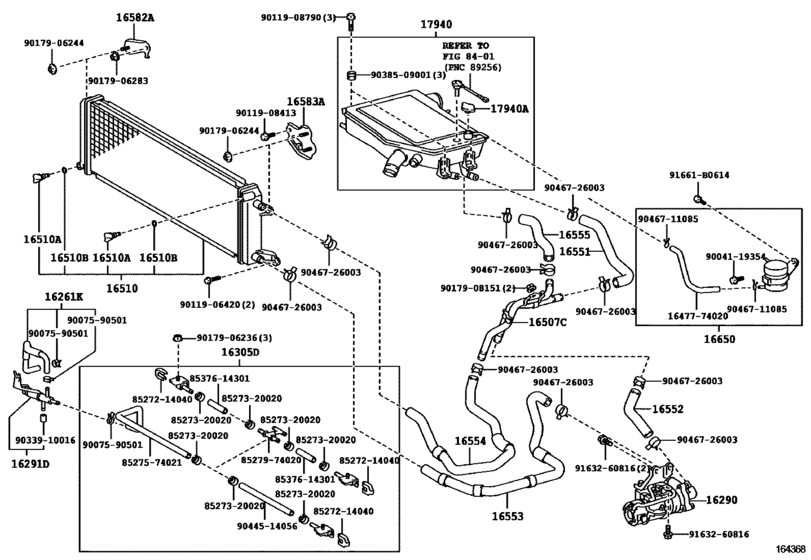

Intercooler & Sub Radiator ([02.1994 - ] (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261K
|
16261K
16261-74091
Hose, Water By-Pass
[02.1994 - 08.1995] 3SGTE..ST205 |
16261-74091 |
— | ||
|
16290
|
16290
16290-74030 Pump Assy, Water W/motor & Bracket[02.1994 -] 3SGTE..ST205 |
16290-74030 |
US $746.05 |
||
|
16291D
|
16291D
16291-74031 Joint, Water Hose[02.1994 - 08.1995] 3SGTE..ST205 |
16291-74031 |
US $66.68 |
||
|
16305D
|
16305D
16305-74021
Outlet Sub-Assy, Water By-Pass
[02.1994 - 08.1995] 3SGTE..ST205 |
16305-74021 |
— | ||
|
16507C
|
16507C
16507-74030
Pipe Sub-Assy, Sub-Radiator, No.1
[02.1994 -] 3SGTE..ST205 |
16507-74030 |
— | ||
|
16510
|
16510
16510-74030
Sub-Radiator Assy
[02.1994 -] 3SGTE..ST205 |
16510-74030 |
— | ||
|
16510A
|
16510A
16417-15210 Plug, Radiator Drain Cock[02.1994 -] 3SGTE..ST205 |
16417-15210 |
US $5.60 |
||
|
16510B
|
16510B
16418-15520 Packing(For Radiator Drain Cock)[02.1994 -] 3SGTE..ST205 |
16418-15520 |
from US $1.60 |
||
|
16551
|
16551
16551-74030
Hose, Sub-Radiator, No.1
[02.1994 -] 3SGTE..ST205 |
16551-74030 |
— | ||
|
16552
|
16552
16552-74030
Hose, Sub-Radiator, No.2
[02.1994 -] 3SGTE..ST205 |
16552-74030 |
— | ||
|
16553
|
16553
16553-74030
Hose, Sub-Radiator, No.3
[02.1994 -] 3SGTE..ST205 |
16553-74030 |
— | ||
|
16554
|
16554
16554-74030
Hose, Sub-Radiator, No.4
[02.1994 -] 3SGTE..ST205 |
16554-74030 |
— | ||
|
16555
|
16555
16555-74030
Hose, Sub-Radiator, No.5
[02.1994 -] 3SGTE..ST205 |
16555-74030 |
— | ||
|
16582A
|
16582A
16582-74010
Bracket, Radiator, No.1
[02.1994 -] 3SGTE..ST205 |
16582-74010 |
— | ||
|
16583A
|
16583A
16583-74010
Bracket, Radiator, No.2
[02.1994 -] 3SGTE..ST205 |
16583-74010 |
— | ||
|
16650
|
16650
16650-74020 Tank Assy, Reserve(For Intercooler)[02.1994 -] 3SGTE..ST205 |
16650-74020 |
US $145.60 |
||
|
17940
|
17940
17940-74080 Intercooler Assy[02.1994 -] 3SGTE..ST205 |
17940-74080 |
US $2,795.52 |
||
|
17940
|
17940
17940-74100 Intercooler Assy[02.1994 - 08.1995] 3SGTE..ST205 WRC ｼﾖｳ |
17940-74100 |
US $2,766.40 |
||
|
17940A
|
17940A
16401-63010 Cap Sub-Assy,[02.1994 -] 3SGTE..ST205 |
16401-63010 |
from US $17.78 |
||
|
91661B0614
|
91661B0614
91661-B0614 New Genuine Part |
91661-B0614 |
US $1.60 |
||
|
1647774020
|
1647774020
16477-74020
Pipe(for Radiator Reserve Tank)
|
16477-74020 |
— | ||
|
8527214040
|
8527214040
85272-14040 Cable Sub-assy, Headlamp Cleaner, Rh |
85272-14040 |
US $8.88 |
||
|
8527320020
|
8527320020
85273-20020 Clamp, Headlamp Cleaner, No.1 |
85273-20020 |
from US $1.97 |
||
|
8527574021
|
8527574021
85275-74021 Wiring Sub-assy, Headlamp Cleaner |
85275-74021 |
US $8.88 |
||
|
8527974020
|
8527974020
85279-74020 Relay Assy, Headlamp Cleaner Washer |
85279-74020 |
US $6.26 |
||
|
8537614301
|
8537614301
85376-14301 Hose, Headlamp Cleaner, No.3 |
85376-14301 |
US $5.10 |
||
|
9004119354
|
9004119354
90041-19354
BOLT
|
90041-19354 |
— | ||
|
9007590501
|
9007590501
90075-90501 Clamp, Headlamp Cleaner, No.1 |
90075-90501 |
US $4.22 |
||
| replacement | |||||
|
9007590501
|
9007590501
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
from US $1.93 |
||
|
9011906420
|
9011906420
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.38 |
||
|
9011908413
|
9011908413
90119-08413 New Genuine Part |
90119-08413 |
US $0.70 |
||
|
9011908790
|
9011908790
90119-08790 New Genuine Part |
90119-08790 |
US $10.13 |
||
|
9017906236
|
9017906236
90179-06236 NUT |
90179-06236 |
US $1.92 |
||
|
9017906244
|
9017906244
90179-06244 New Genuine Part |
90179-06244 |
US $1.92 |
||
|
9017906283
|
9017906283
90179-06283 New Genuine Part |
90179-06283 |
US $1.44 |
||
|
9017908151
|
9017908151
90179-08151 NUT |
90179-08151 |
US $1.12 |
||
|
9033910016
|
9033910016
90339-10016 New Genuine Part |
90339-10016 |
US $11.65 |
||
|
9038509001
|
9038509001
90385-09001
New Genuine Part
|
90385-09001 |
— | ||
|
9044514056
|
9044514056
90445-14056 Hose, Headlamp Cleaner, No.4 |
90445-14056 |
US $7.28 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.78 |
||
|
9046726003
|
9046726003
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
|
90467-26003 |
— | ||
| replacement | |||||
|
9046726003
|
9046726003
90467-26007 Clip(For Ventilation Hose No.2) |
90467-26007 |
US $4.32 |
||
|
9163260816
|
9163260816
91632-60816
New Genuine Part
|
91632-60816 |
— | ||
| replacement | |||||
|
9163260816
|
9163260816
91631-60816 BOLT |
91631-60816 |
US $2.56 |
||
