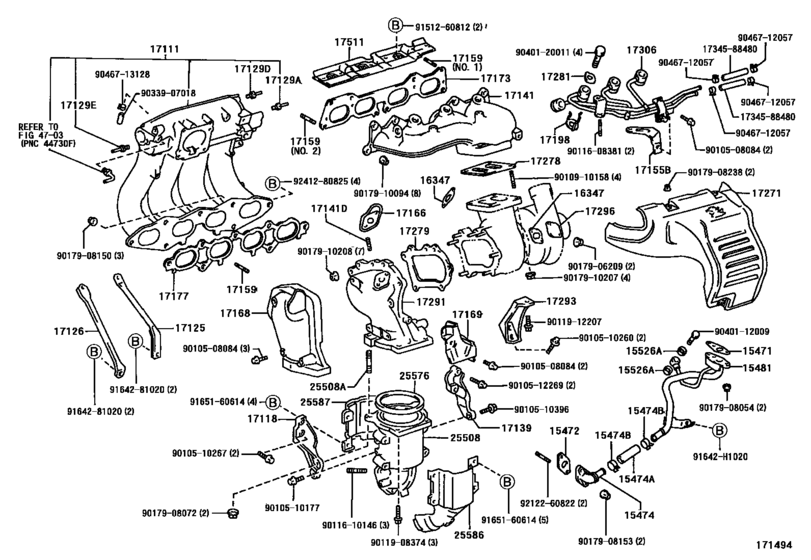

Manifold ([02.1994 - 04.1994] WRC ｼﾖｳ (9402-9404)3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15471
|
15471
15471-88380
Gasket, Turbo Oil Inlet
[02.1994 - 04.1997] 3SGTE..ST205 |
15471-88380 |
— | ||
| replacement | |||||
|
15471
|
15471
15471-88580 Gasket, Turbo Oil Inlet[02.1994 - 04.1997] 3SGTE..ST205 |
15471-88580 |
US $13.44 |
||
|
15471
|
15471
15471-88580 Gasket, Turbo Oil Inlet[04.1997 -] 3SGTE..ST205 |
15471-88580 |
US $13.44 |
||
|
15472
|
15472
15472-88480 Gasket, Turbo Oil Outlet, No.1[02.1994 -] 3SGTE..ST205 |
15472-88480 |
US $7.68 |
||
|
15474
|
15474
15474-88480
Pipe, Turbo Oil Outlet
[02.1994 -] 3SGTE..ST205 |
15474-88480 |
— | ||
|
15474A
|
15474A
15491-88480 Hose, Turbo Oil Outlet[02.1994 -] 3SGTE..ST205 |
15491-88480 |
US $12.48 |
||
|
15474B
|
15474B
90467-26007 Clip(For Ventilation Hose No.2)[02.1994 -] 3SGTE..ST205 |
90467-26007 |
US $4.32 |
||
|
15481
|
15481
15481-88480
Pipe, Turbo Oil, No.1
[02.1994 -] 3SGTE..ST205 |
15481-88480 |
— | ||
|
15526A
|
15526A
15526-88480 Gasket, Joint(For Turbo Oil Pipe)[02.1994 -] 3SGTE..ST205 |
15526-88480 |
US $10.72 |
||
|
16347
|
16347
16347-88380 Gasket, Water By-Pass[02.1994 -] 3SGTE..ST205 |
16347-88380 |
US $7.20 |
||
|
17111
|
17111
17101-88480 Manifold, Intake[02.1994 -] 3SGTE..ST205 |
17101-88480 |
US $898.35 |
||
|
17111
|
17111
17101-88481 Manifold, Intake[02.1994 - 04.1994] 3SGTE..ST205 WRC ｼﾖｳ |
17101-88481 |
US $901.26 |
||
|
17118
|
17118
17118-88382 Stay, Manifold[02.1994 - 03.1994] 3SGTE..ST205 |
17118-88382 |
US $71.34 |
||
| replacement | |||||
|
17118
|
17118
17118-88480 Stay, Manifold[02.1994 - 03.1994] 3SGTE..ST205 |
17118-88480 |
US $71.49 |
||
|
17118
|
17118
17118-88480 Stay, Manifold[03.1994 -] 3SGTE..ST205 |
17118-88480 |
US $71.49 |
||
|
17125
|
17125
17125-88481 Stay, Surge Tank, No.1[02.1994 -] 3SGTE..ST205 |
17125-88481 |
US $71.78 |
||
|
17126
|
17126
17126-88480 Stay, Surge Tank, No.2[02.1994 -] 3SGTE..ST205 |
17126-88480 |
US $28.39 |
||
|
17129A
|
17129A
90404-51026 Union(For Vacuum Hose To Carburetor)[02.1994 -] 3SGTE..ST205 |
90404-51026 |
US $4.80 |
||
|
17129D
|
17129D
90404-51096 Union(For Intake Manifold Water)[02.1994 -] 3SGTE..ST205 |
90404-51096 |
US $7.69 |
||
|
17129E
|
17129E
90404-51319 Union, No.1[02.1994 -] 3SGTE..ST205 |
90404-51319 |
from US $3.52 |
||
|
17139
|
17139
17139-88480
Stay, Manifold, No.2
[02.1994 - 03.1994] 3SGTE..ST205 |
17139-88480 |
— | ||
| replacements | |||||
|
17139
|
17139
17139-88481 Stay, Manifold, No.2[02.1994 - 03.1994] 3SGTE..ST205 |
17139-88481 |
US $71.49 |
||
|
17139
|
17139
90105-10396
New Genuine Part
[02.1994 - 03.1994] 3SGTE..ST205 |
90105-10396 |
— | ||
|
17139
|
17139
17139-88481 Stay, Manifold, No.2[03.1994 -] 3SGTE..ST205 |
17139-88481 |
US $71.49 |
||
|
17141
|
17141
17140-88480
Manifold, Exhaust
[02.1994 -] 3SGTE..ST205 |
17140-88480 |
— | ||
|
17141
|
17141
17140-88481
Manifold, Exhaust
[02.1994 - 04.1994] 3SGTE..ST205 WRC ｼﾖｳ |
17140-88481 |
— | ||
|
17141D
|
17141D
90116-08326 Bolt, Stud(For Oxygen Sensor)[02.1994 -] 3SGTE..ST205 |
90116-08326 |
US $6.12 |
||
|
17155B
|
17155B
17155-88480 Insulator, Exhaust Manifold Heat, No.5[02.1994 - 04.1994] 3SGTE..ST205 |
17155-88480 |
US $26.21 |
||
|
17159
|
17159
90116-08242
Bolt, Stud(For Manifold To Cylinder Head)
[09.1993 - 12.1997] 3SG#..ST202,205 インテーク マニホルド |
90116-08242 |
— | ||
|
17159
|
17159
90116-10127
Bolt, Stud(For Turbocharger)
[02.1994 -] 3SGTE..ST205 ＮＯ．２ |
90116-10127 |
— | ||
| replacement | |||||
|
17159
|
17159
90116-10125 Bolt, Stud(For Turbine Housing)[02.1994 -] 3SGTE..ST205 ＮＯ．２ |
90116-10125 |
US $3.04 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [09.1993 - 02.1995] 3SG#..ST202,205 ＮＯ．１ |
90116-10169 |
from US $1.54 |
||
|
17166
|
17166
17166-88480 Insulator, Exhaust Manifold Heat,no.4[02.1994 -] 3SGTE..ST205 |
17166-88480 |
US $6.41 |
||
|
17168
|
17168
17168-88480 Insulator, Exhaust Manifold Heat, No.2[02.1994 -] 3SGTE..ST205 |
17168-88480 |
US $115.02 |
||
|
17169
|
17169
17169-88480 Insulator, Exhaust Manifold Heat, No.3[02.1994 -] 3SGTE..ST205 |
17169-88480 |
US $22.57 |
||
|
17173
|
17173
17173-88480
Gasket, Exhaust Manifold To Head
[02.1994 - 04.1997] 3SGTE..ST205 |
17173-88480 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-88581 Gasket, Exhaust Manifold To Head[02.1994 - 04.1997] 3SGTE..ST205 |
17173-88581 |
from US $53.33 |
||
|
17173
|
17173
17173-88580
Gasket, Exhaust Manifold To Head
[04.1997 -] 3SGTE..ST205 |
17173-88580 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-88581 Gasket, Exhaust Manifold To Head[04.1997 -] 3SGTE..ST205 |
17173-88581 |
from US $53.33 |
||
|
17177
|
17177
17177-88460 Gasket, Intake Manifold To Head, No.1[09.1993 - 12.1997] 3SG#..ST202,205 |
17177-88460 |
from US $10.32 |
||
|
17198
|
17198
17198-88480 Gasket, Exhaust Manifold, No.2[02.1994 - 04.1994] 3SGTE..ST205 |
17198-88480 |
US $6.70 |
||
|
17271
|
17271
17271-88480
Insulator, Turbo, No.1
[02.1994 -] 3SGTE..ST205 |
17271-88480 |
— | ||
|
17271
|
17271
17271-88481
Insulator, Turbo, No.1
[02.1994 - 04.1994] 3SGTE..ST205 WRC ｼﾖｳ |
17271-88481 |
— | ||
|
17278
|
17278
17278-88480 Gasket, Turbo To Exhaust Manifold[02.1994 -] 3SGTE..ST205 |
17278-88480 |
US $47.27 |
||
|
17279
|
17279
17279-88480 Gasket, Turbine Outlet Elbow[02.1994 -] 3SGTE..ST205 |
17279-88480 |
US $53.50 |
||
|
17281
|
17281
17281-88480 Gasket, Exhaust Gas Control Valve[02.1994 - 04.1994] 3SGTE..ST205 |
17281-88480 |
US $3.49 |
||
|
17291
|
17291
17291-88480 Elbow, Turbine Outlet[02.1994 -] 3SGTE..ST205 |
17291-88480 |
US $331.97 |
||
|
17293
|
17293
17293-88480
Stay, Turbocharger
[02.1994 - 03.1994] 3SGTE..ST205 |
17293-88480 |
— | ||
| replacement | |||||
|
17293
|
17293
17293-88481
Stay, Turbocharger
[02.1994 - 03.1994] 3SGTE..ST205 |
17293-88481 |
— | ||
|
17293
|
17293
17293-88481
Stay, Turbocharger
[03.1994 -] 3SGTE..ST205 |
17293-88481 |
— | ||
|
17296
|
17296
17296-28010 Plate, Bearing Housing, Side[02.1994 -] 3SGTE..ST205 |
17296-28010 |
US $9.44 |
||
|
17306
|
17306
17306-88480
Manifold Sub-Assy, Airinjection
[02.1994 - 04.1994] 3SGTE..ST205 |
17306-88480 |
— | ||
|
17511
|
17511
17511-88480
Insulator, Exhaust Pipe, Upper No.1
[02.1994 - 04.1994] 3SGTE..ST205 |
17511-88480 |
— | ||
|
25508
|
25508
25051-74030 Converter Sub-Assy, Manifold[02.1994 - 12.1997] 3SGTE..ST205 |
25051-74030 |
US $789.15 |
||
|
25508
|
25508
25051-74031 Converter Sub-Assy, Manifold[12.1997 -] 3SGTE..ST205 |
25051-74031 |
US $789.15 |
||
|
25508A
|
25508A
90116-08171 Bolt, Stud(For Manifold Converter)[02.1994 -] 3SGTE..ST205 |
90116-08171 |
US $4.32 |
||
|
25576
|
25576
25576-74030 Gasket, Manifold Converter[02.1994 -] 3SGTE..ST205 |
25576-74030 |
from US $12.68 |
||
|
25586
|
25586
25586-74040
Insulator, Manifold Converter, No.1
[02.1994 -] 3SGTE..ST205 |
25586-74040 |
— | ||
|
25587
|
25587
25587-74040
Insulator, Manifold Converter, No.2
[02.1994 -] 3SGTE..ST205 |
25587-74040 |
— | ||
|
91642H1020
|
91642H1020
91642-H1020
New Genuine Part
|
91642-H1020 |
— | ||
|
1734588480
|
1734588480
17345-88480
Hose, No.5(for Air Injection System)
|
17345-88480 |
— | ||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9010510177
|
9010510177
90105-10177
New Genuine Part
|
90105-10177 |
— | ||
|
9010510260
|
9010510260
90105-10260 New Genuine Part |
90105-10260 |
US $2.62 |
||
|
9010510267
|
9010510267
90105-10267
New Genuine Part
|
90105-10267 |
— | ||
|
9010510396
|
9010510396
90105-10396
New Genuine Part
|
90105-10396 |
— | ||
|
9010512269
|
9010512269
90105-12269
New Genuine Part
|
90105-12269 |
— | ||
|
9010910158
|
9010910158
90109-10158 New Genuine Part |
90109-10158 |
US $2.88 |
||
|
9011608381
|
9011608381
90116-08381 New Genuine Part |
90116-08381 |
US $1.89 |
||
|
9011610146
|
9011610146
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10146 |
from US $1.91 |
||
|
9011908374
|
9011908374
90119-08374 Bolt |
90119-08374 |
US $2.24 |
||
|
9011912207
|
9011912207
90119-12207
Plate, Exhaust Manifold(for Egr Inlet)
|
90119-12207 |
— | ||
|
9017906209
|
9017906209
90179-06209
New Genuine Part
|
90179-06209 |
— | ||
| replacement | |||||
|
9017906209
|
9017906209
94150-80630 New Genuine Part |
94150-80630 |
US $0.96 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017908072
|
9017908072
90179-08072 Nut(For Front Lower Arm Bracket Rh) |
90179-08072 |
from US $1.28 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.07 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908238
|
9017908238
90179-08238
New Genuine Part
|
90179-08238 |
— | ||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.81 |
||
|
9017910207
|
9017910207
90179-10207 New Genuine Part |
90179-10207 |
US $6.40 |
||
|
9017910208
|
9017910208
90179-10208 New Genuine Part |
90179-10208 |
US $2.08 |
||
|
9033907018
|
9033907018
90339-07018 New Genuine Part |
90339-07018 |
US $4.02 |
||
|
9040112009
|
9040112009
90401-12009 Bolt, Union, No.1 |
90401-12009 |
US $4.16 |
||
|
9040120011
|
9040120011
90401-20011 New Genuine Part |
90401-20011 |
US $5.39 |
||
|
9046712057
|
9046712057
90467-12057
New Genuine Part
|
90467-12057 |
— | ||
|
9046713128
|
9046713128
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13128 |
from US $1.44 |
||
|
9151260812
|
9151260812
91512-60812 BOLT FLANGE |
91512-60812 |
US $1.46 |
||
| replacement | |||||
|
9151260812
|
9151260812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9164281020
|
9164281020
91642-81020
New Genuine Part
|
91642-81020 |
— | ||
| replacement | |||||
|
9164281020
|
9164281020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9212260822
|
9212260822
92122-60822 Stud |
92122-60822 |
US $1.31 |
||
|
9241280825
|
9241280825
92412-80825
New Genuine Part
|
92412-80825 |
— | ||
